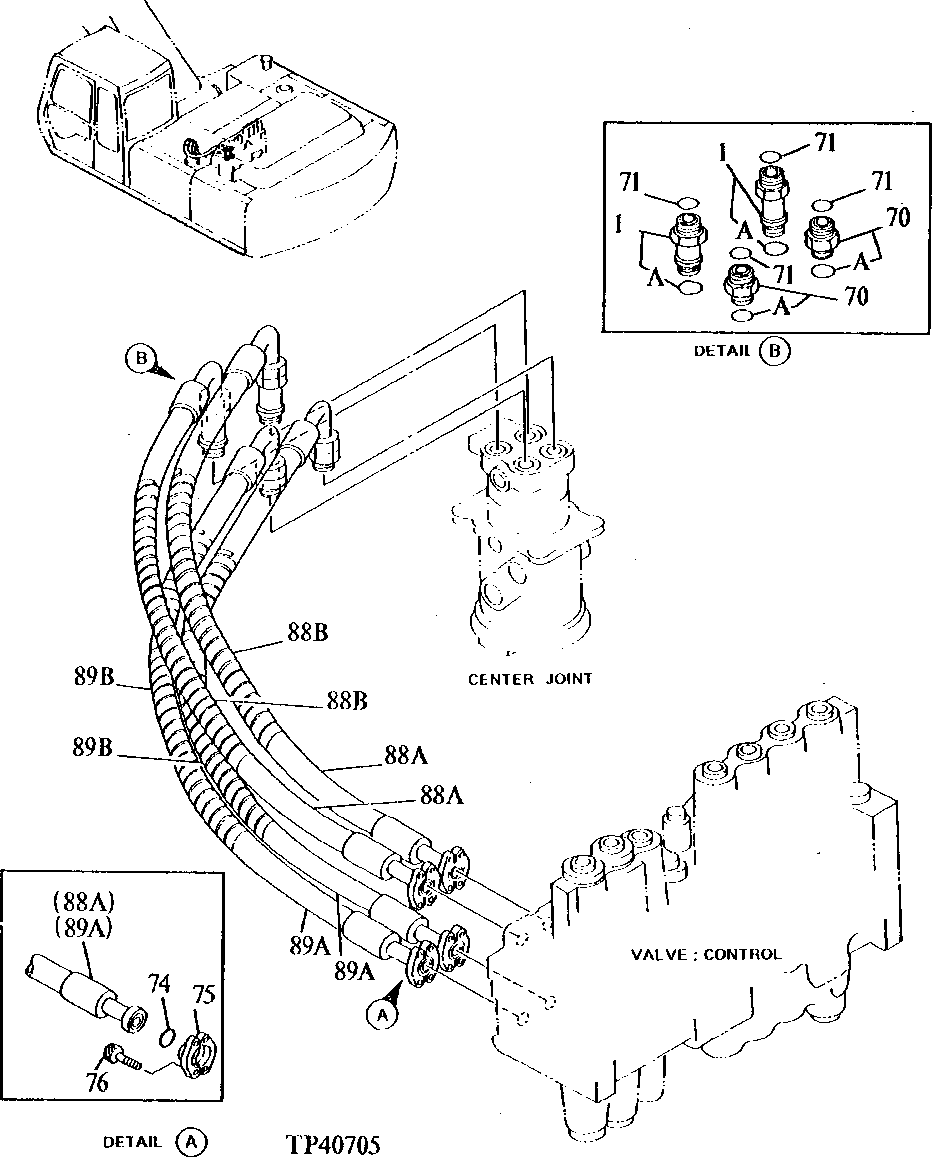

Запчасти John Deere 90ELC 240 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

1

4189539

Adapter Fitting

(SUB FOR AT107393)

2шт.

1A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

70

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

70A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

71

T77858

O-Ring

18.771 X 1.778 mm

4шт.

74

T59014

O-Ring

24.994 X 3.531 mm

4шт.

75

R29424

Flange Fitting

8шт.

76

19M8337

Screw

M10 X 30

16шт.

88A

4259449

Hose

(SUB FOR AT155279)

2шт.

88B

Guard

(CUT TO LENGTH FROM AT138222 BULK MATERIAL)

4шт.

89A

4250894

Hose

(SUB FOR AT155265)

2шт.

89B

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

4шт.
