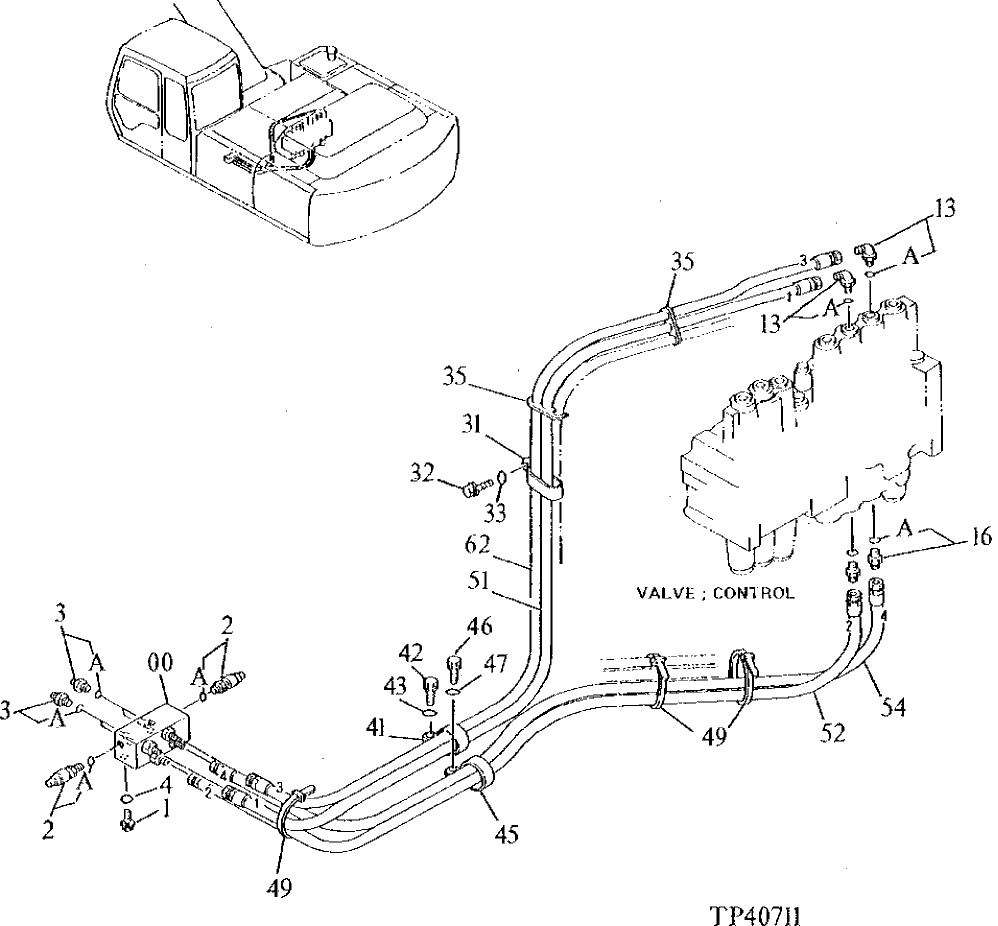

Запчасти John Deere 90ELC 250 - PILOT PIPINGS ( - 014999) 3360 HYDRAULIC SYSTEM

0

4312150

Hyd Actuated Control Valve

(SUB FOR AT158395)

1шт.

1

19M7932

Cap Screw

2шт.

2

4254563

Pressure Switch

(SUB FOR AT154212)

2шт.

2A

CH19111

O-Ring

1шт.

3

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

3A

CH11570

O-Ring

1шт.

4

12M7056

Lock Washer

(SUB FOR 12M7065)

2шт.

13

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

13A

CH11570

O-Ring

1шт.

16

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

16A

CH11570

O-Ring

1шт.

31

Clip

(NOT AVAILABLE FOR SERVICE)

1шт.

32

19M7402

Cap Screw

1шт.

33

12M7066

Lock Washer

1шт.

35

4203210

Clamp

(SUB FOR TH109599)

2шт.

41

AT121321

Hose Clamp

1шт.

42

19M7402

Cap Screw

1шт.

43

12M7066

Lock Washer

1шт.

45

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

46

19M7402

Cap Screw

1шт.

47

12M7066

Lock Washer

1шт.

49

H77698

Tie Band

3шт.

51

AT130683

Hydraulic Hose

1шт.

52

4203024

Hydraulic Hose

(SUB FOR TH108468)

1шт.

54

4203024

Hydraulic Hose

(SUB FOR TH108468)

1шт.

62

AT130683

Hydraulic Hose

1шт.
