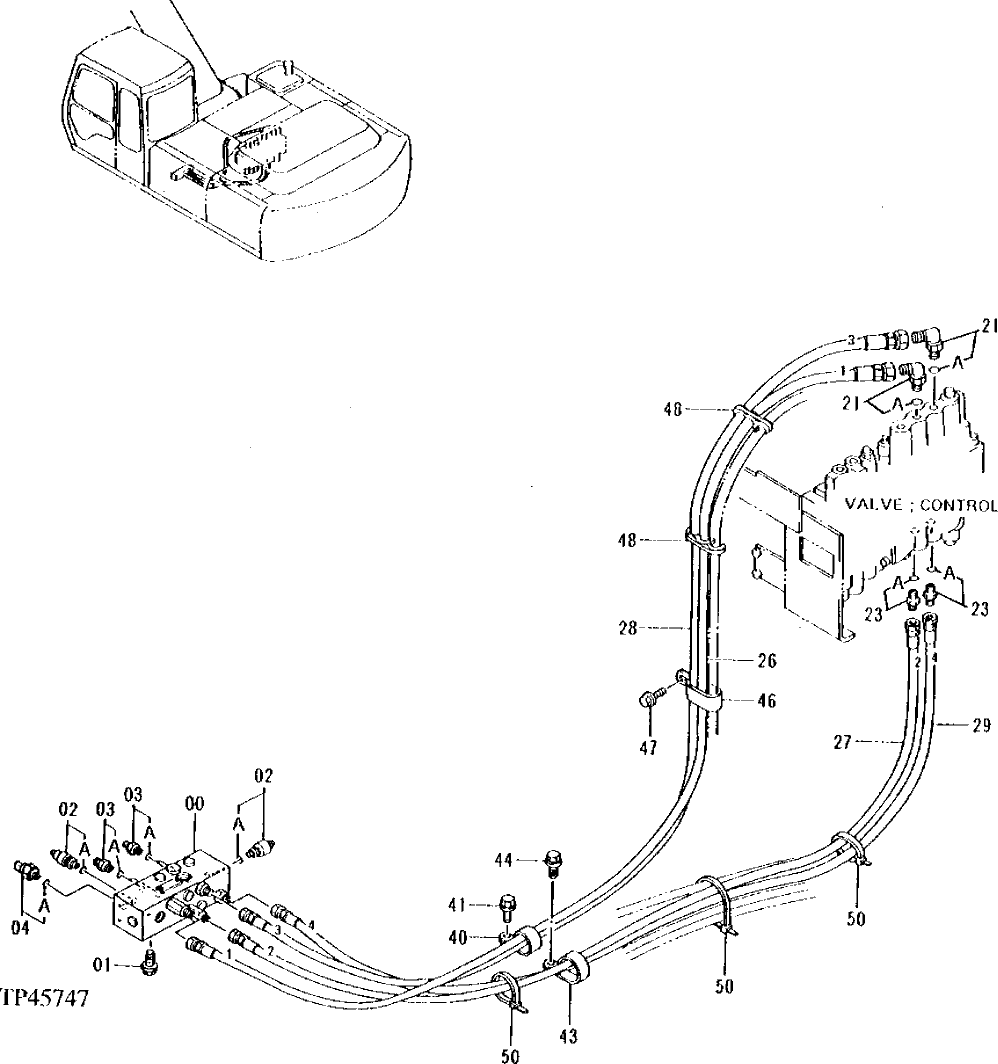

Запчасти John Deere 90ELC 251 - PILOT PIPINGS (015000 - ) 3360 HYDRAULIC SYSTEM

0

4340938

Flow Control Hyd. Valve

SUB FOR AT204836

1шт.

1

19M7932

Cap Screw

2шт.

12M7056

Lock Washer

SUB FOR 12M7065

2шт.

2

4254563

Pressure Switch

SUB FOR AT154212

2шт.

2A

CH19111

O-Ring

1шт.

3

4200466

Adapter Fitting

SUB FOR TH108320

4шт.

3A

CH11570

O-Ring

1шт.

4

Sensor

4326876 NLA, SUB FOR AT202458

1шт.

4A

TH102560

O-Ring

1шт.

21

4208913

Adapter Fitting

SUB FOR AT126458

2шт.

21A

CH11570

O-Ring

1шт.

23

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

23A

CH11570

O-Ring

1шт.

26

AT130683

Hydraulic Hose

1шт.

27

4203024

Hydraulic Hose

SUB FOR TH108468

1шт.

28

AT130683

Hydraulic Hose

1шт.

29

4203024

Hydraulic Hose

SUB FOR TH108468

1шт.

40

AT121321

Hose Clamp

1шт.

41

19M7402

Cap Screw

1шт.

12M7066

Lock Washer

1шт.

43

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

1шт.

44

19M7402

Cap Screw

1шт.

12M7066

Lock Washer

1шт.

46

Clip

Not Available For Service

1шт.

47

19M7402

Cap Screw

1шт.

12M7066

Lock Washer

1шт.

48

4203210

Clamp

SUB FOR TH109599

2шт.

50

H77698

Tie Band

3шт.
