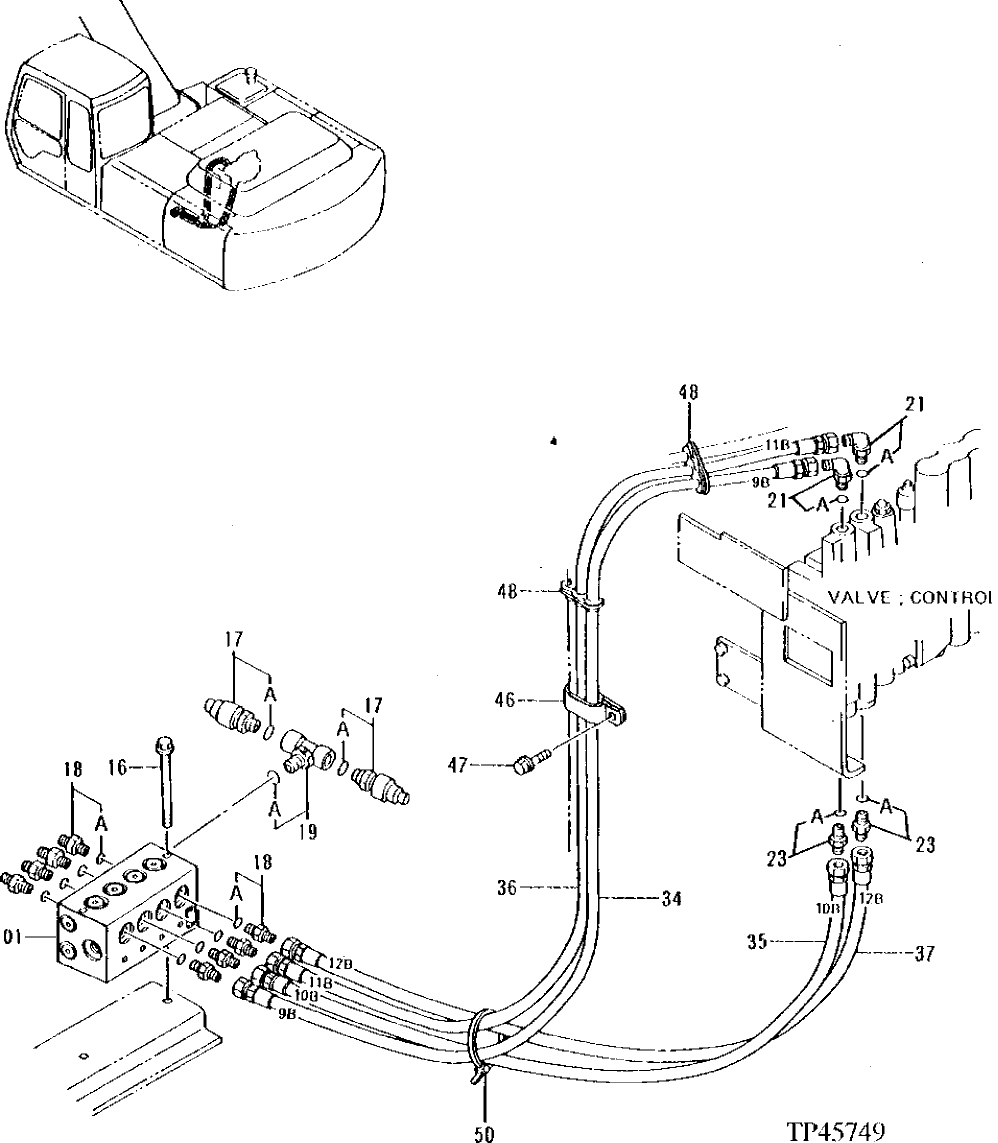

Запчасти John Deere 90ELC 255 - PILOT PIPINGS (015000 - ) 3360 HYDRAULIC SYSTEM

1

4325812

Flow Control Hyd. Valve

(SUB FOR AT202457)

1шт.

16

4305337

Screw With Washer

(SUB FOR AT159662)

2шт.

17

4254563

Pressure Switch

(SUB FOR AT154212)

2шт.

17A

CH19111

O-Ring

1шт.

18

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

18A

CH11570

O-Ring

1шт.

19

4289907

Tee Fitting

(SUB FOR AT155005)

1шт.

19A

CH19111

O-Ring

1шт.

21

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

21A

CH11570

O-Ring

1шт.

23

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

23A

CH11570

O-Ring

1шт.

34

AT48422

Hydraulic Hose

1шт.

35

AT48434

Hydraulic Hose

1шт.

36

AT48422

Hydraulic Hose

1шт.

37

AT48434

Hydraulic Hose

1шт.

46

Clip

(NOT AVAILABLE FOR SERVICE)

1шт.

47

19M7402

Cap Screw

1шт.

12M7066

Lock Washer

1шт.

48

4203210

Clamp

(SUB FOR TH109599)

2шт.

50

H77698

Tie Band

1шт.
