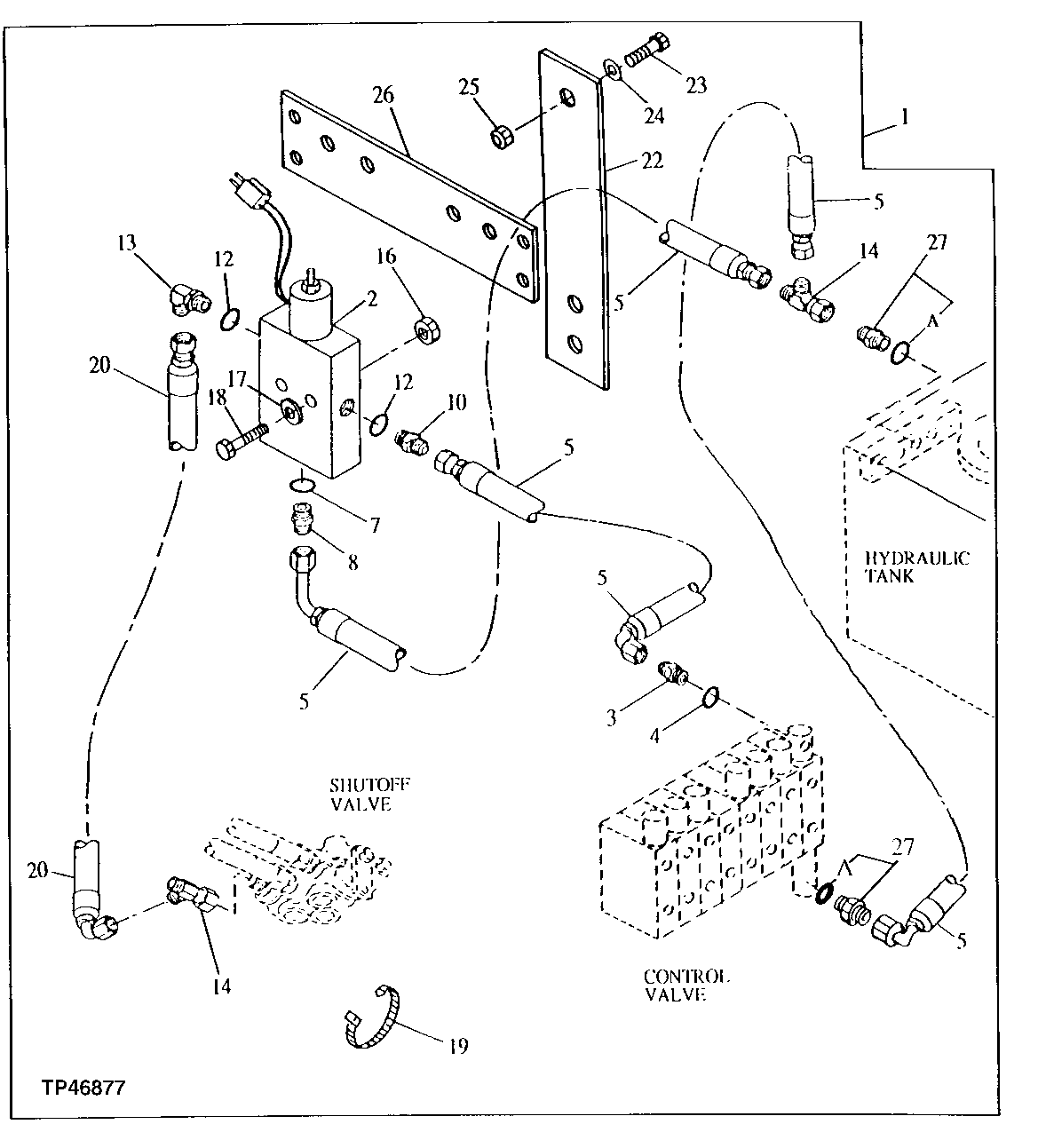

Запчасти John Deere 90ELC 293 - One Solenoid Auxiliary Control (Use w/ Foot Switch) 3360 HYDRAULIC SYSTEM

1

Control

WHOLEGOODS (AUXILIARY - ON E SOLENOID) (AT165330 NLA)

1шт.

2

AT306723

Elec.Proportional Valve

(INCLUDES ELECTRICAL COIL) (SUB FOR AT115437, AT116486, AT140041)

1шт.

3

AT131445

Adapter Fitting

1шт.

4

CH11570

O-Ring

3шт.

5

AT71732

Hydraulic Hose

3шт.

7

R26375

O-Ring

1шт.

8

R36426

Fitting

1шт.

10

R27212

Fitting

1шт.

12

R26448

O-Ring

2шт.

13

AT35121

Elbow Fitting

1шт.

14

AT36921

Tee Fitting

2шт.

16

14M7167

Lock Nut

2шт.

17

24M7346

Washer

2шт.

18

19M7808

Screw

2шт.

19

R44302

Tie Band

(USE WHERE REQUIRED)

6шт.

20

AT71737

Hydraulic Hose

1шт.

22

T146100

Support

1шт.

23

19M7881

Screw

5шт.

24

24M7336

Washer

5шт.

25

14M7273

Nut

5шт.

26

T149117

Strap

1шт.

27

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

27A

CH11570

O-Ring

1шт.
