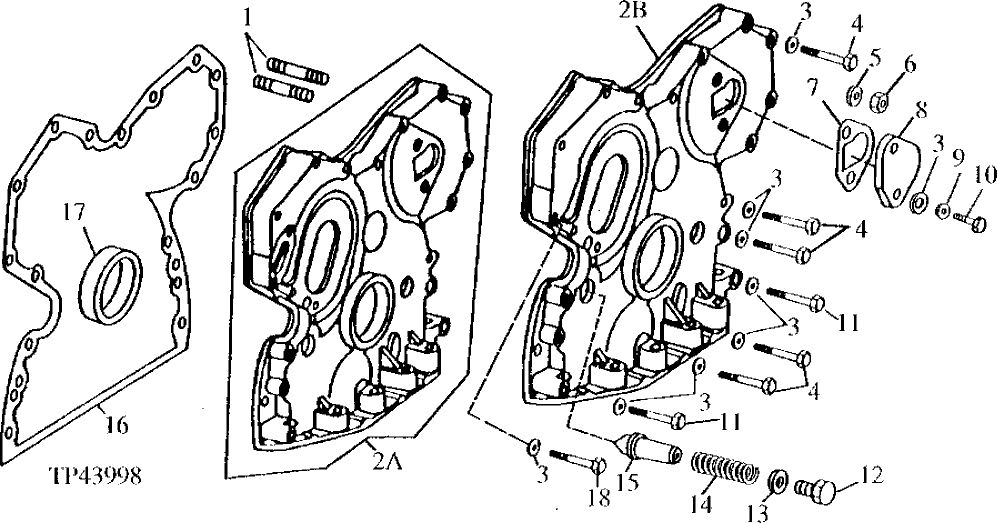

Запчасти John Deere 90ELC 27 - Timing Gear Cover 0402 Camshaft And Valve Actuating Means 6068TT005 6068TT005

1

R122226

Stud

(SUB FOR R122226)

2шт.

2A

RE39252

Cover

WITH INSERTS

1шт.

2B

RE56443

Cover

1шт.

3

24M7106

Washer

10 X 18 X 2.500 mm

16шт.

4

19H3408

Screw

3/8" X 1-3/4"

5шт.

19H3693

Screw

3/8" X 1-1/4"

5шт.

5

12H304

Lock Washer

3/8"

ARшт.

6

N10215

Lock Nut

9.525 mm (SUB FOR 14H1 076, THIS APPLICATION)

2шт.

7

R125066

Gasket

(SUB FOR R97773)

1шт.

8

R113533

Cover

1шт.

9

12H324

Washer

3/8"

2шт.

10

T20166

Screw

2шт.

11

19H3733

Screw

3/8" X 2-1/2"

2шт.

12

T27657

Fitting Plug

1шт.

13

A4827R

Washer

1шт.

14

T27658

Spring

1шт.

15

R83169

Valve

1шт.

16

R126513

Gasket

(SUB FOR R97454, R119269 OR R121314)

1шт.

17

RE44574

Seal

1шт.

18

19H1819

Cap Screw

3/8" X 2-1/8"

1шт.
