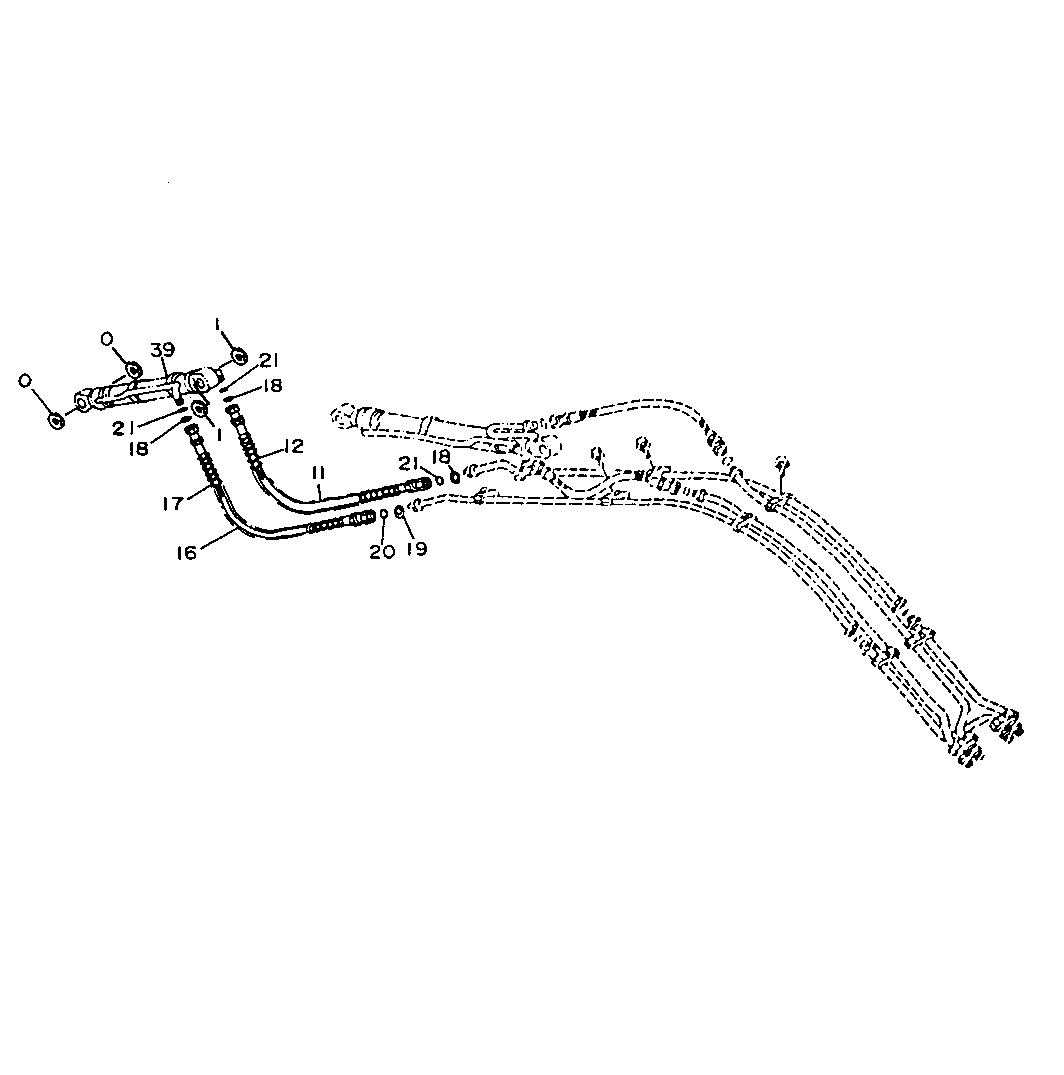

Запчасти John Deere 92DLC 192 - LONG ARM FRONT PIPINGS ASSEMBLY 3360 HYDRAULIC SYSTEM

0

TH102445

Seal

2шт.

1

TH102446

Seal

2шт.

11

4219370

Hydraulic Hose

(SUB FOR AT205861)

1шт.

12

Cover

(SUB FOR AT205866)( 4223507 NO LONGER AVAILABLE FOR SERVICE)

1шт.

16

4219369

Hydraulic Hose

(SUB FOR AT205860)

1шт.

17

4223508

Cover

(SUB FOR AT205867)

1шт.

18

4073052

Washer

37 X 66 X 1.600 mm (SUB FOR TH111201)

3шт.

19

4061743

Washer

28 X 50 X 1.600 mm (SUB FOR TH101572)

1шт.

20

T77858

O-Ring

18.771 X 1.778 mm

1шт.

21

T76938

O-Ring

23.520 X 1.780 mm

3шт.

39

9110535

Cylinder

(SUB FOR AT205922)(BUCKET)

1шт.

50

AT176023

Arm

WHOLEGOODS (INCLUDES LONG ARM, BUCKET CYLINDER AND LINKAGE) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S)

1шт.
