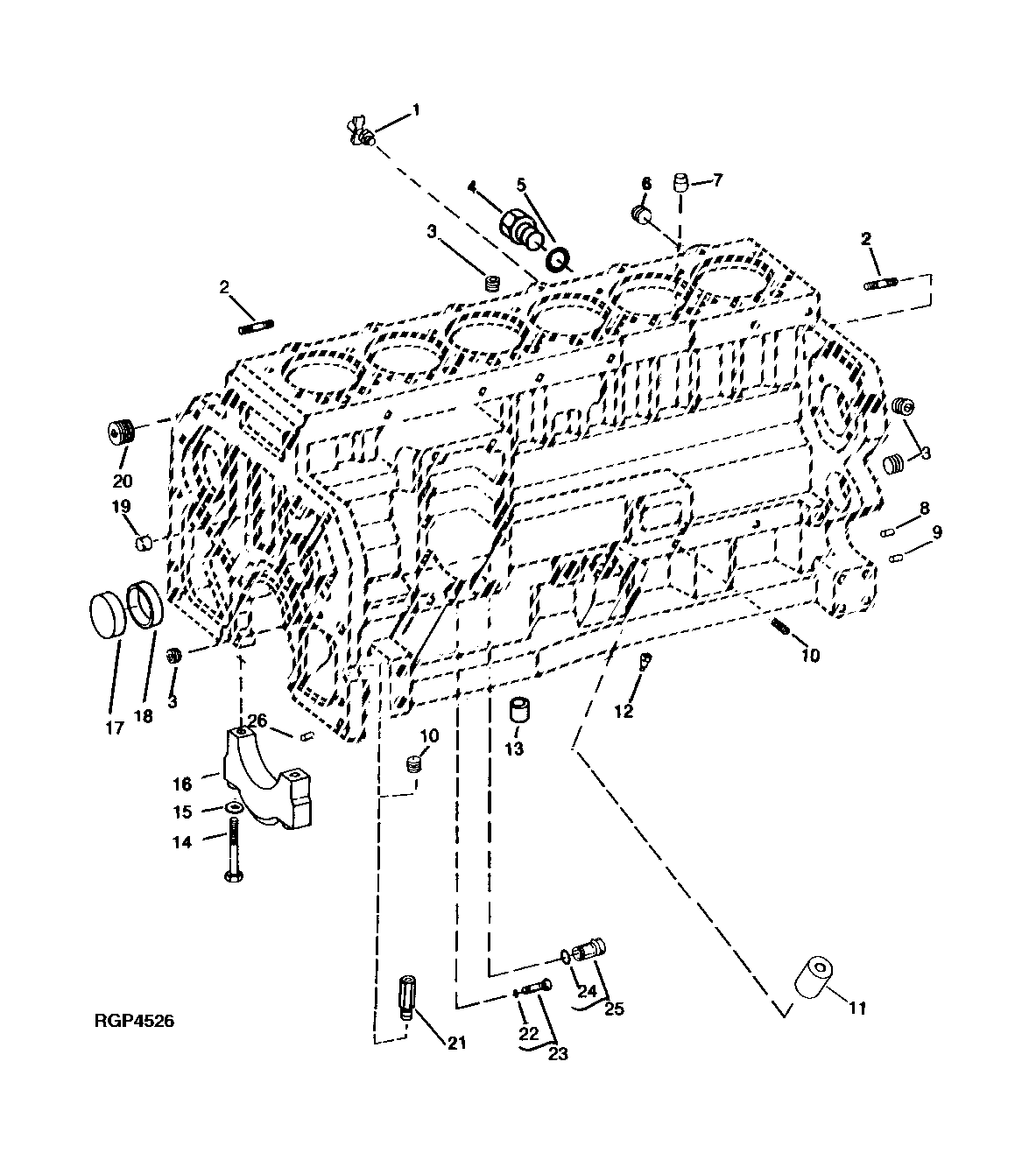

Запчасти John Deere 92DLC 23 - Cylinder Block Fittings And Main Bearing Caps 0404 Cylinder Block 6076AT033 6076AT033

1

AT13740

Drain Valve

1шт.

2

R114130

Stud

5шт.

3

RE57836

Pipe Plug

12.700 mm (SUB FOR 15H624)

4шт.

4

R39741

Drain Plug

1шт.

5

U13639

O-Ring

1шт.

6

15H690

Pipe Plug

3/4" (O.D.)

1шт.

15H619

Pipe Bushing

3/8" (I.D.) (USE WITH AT35831)

1шт.

AT35831

Drain Valve

(USE WITH 15H619)

1шт.

7

R42340

Bushing

2шт.

8

R1612R

Dowel Pin

2шт.

9

F1743R

Dowel Pin

2шт.

10

R104592

Pipe Plug

6шт.

11

R107623

Spacer

107.5 MM

1шт.

12

R43621

Orifice

6шт.

13

R500642

Bushing

(SUB FOR R62930, THIS APPLICATION)

2шт.

14

R42365

Bolt

14шт.

15

R70268

Washer

14шт.

16

R57158

Bearing Cap

(MAIN)

6шт.

R57159

Bearing Cap

(THRUST)

1шт.

17

R82007

Plug

1шт.

18

R87561

Bushing

4шт.

19

R61288

Dowel Pin

1шт.

20

15H562

Pipe Plug

1"

1шт.

21

R53014

Fitting

NAшт.

22

A4365R

O-Ring

1шт.

23

DZ104494

Plug

X SUB FOR AR61589

1шт.

24

R27149

O-Ring

1шт.

25

AR61533

Plug

1шт.

26

H79910

Dowel Pin

(USE WITH R121690)

2шт.

RE57420

Screw

(TOP FRONT L.H. HOLE)

2шт.

Cylinder Block

(NOT AVAILABLE)

NAшт.
