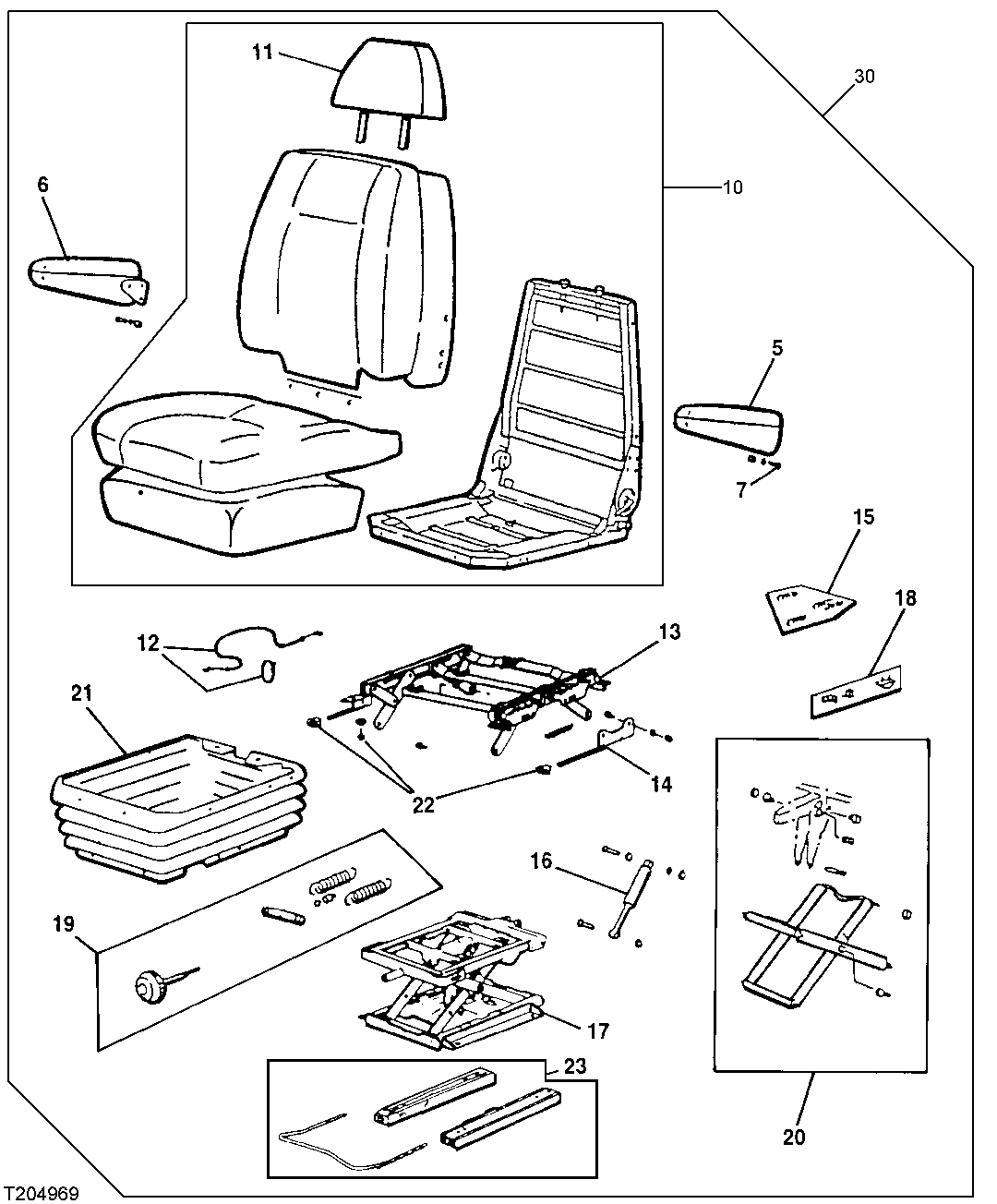

Запчасти John Deere 0 94 - Seat Assembly 1821 Seat And Seat Belts

5

AT216533

Armrest

Left

1шт.

AT179815

Armrest

(4 INCH WIDE LEFT)

1шт.

6

AT216534

Armrest

Right

1шт.

AT179816

Armrest

(4 INCH WIDE RIGHT)

1шт.

7

19M8818

Screw

M8 X 60 (USE WITH 4 INCH WIDE ARMRESTS)

4шт.

AT191447

Kit

(CONTAINS 4 SCREWS FOR STANDARD ARMRESTS)

1шт.

10

AT216520

Seat

1шт.

11

AT216521

Head Restraint

1шт.

12

4392800R

Cable

(SUB FOR AT216522)

1шт.

13

AT216523

Base

(HEIGHT ADJUSTER ASSEMBLY)

1шт.

14

AT216523

Base

(SUB FOR AT216524)

1шт.

15

AT216525

Spring

1шт.

16

AT216526

Torsional Damper

1шт.

17

AT216527

Seat Suspension

1шт.

18

AT138345

Bumper

1шт.

19

4607627R

Adjuster

(SUB FOR AT138346)

1шт.

20

AT138349

Bearing Kit

1шт.

21

4607629R

Cover

(SUB FOR AT216531)

1шт.

22

AT216532

Seat Knob Kit

(UNDER SEAT)

1шт.

23

AT216535

Adjuster

1шт.

30

AP33296

Seat

1шт.
