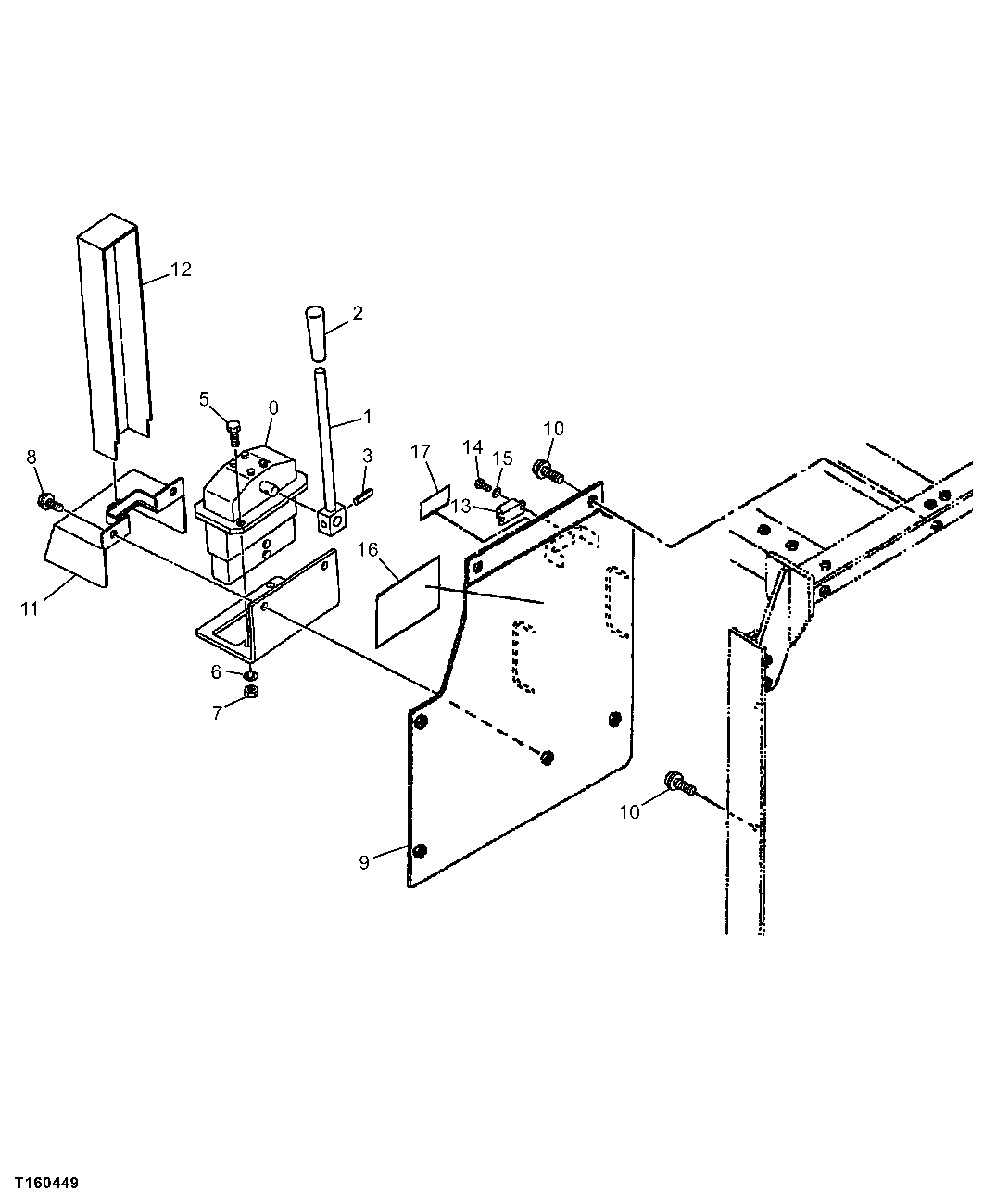

Запчасти John Deere 00C 244 - COUNTERWEIGHT REMOVAL CONTROL SYSTEM 3315 CONTROLS LINKAGE

0

9074843

Hyd Actuated Control Valve

1шт.

1

9732429

Lever

1шт.

2

4122424

Grip

1шт.

3

34M7102

Spring Pin

5 X 26 mm

1шт.

4

3046025

Bracket

1шт.

5

19M7402

Cap Screw

M10 X 25

2шт.

6

12M7066

Lock Washer

10 mm

2шт.

7

14M7274

Nut

M10

2шт.

8

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

9

7041540

Plate

1шт.

10

19M7403

Cap Screw

M12 X 35

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

11

8044683

Cover

1шт.

12

4240984

Cover

1шт.

13

4240985

Magnet

1шт.

14

21M7394

Screw

M3 X 10

2шт.

15

12H233

Lock Washer

1/8" (SUB FOR 12M7048)

2шт.

16

T152593

Label

(COUNTERWEIGHT REMOVAL INSTRUCTION LABEL)

1шт.

17

4241586

Label

(UP-DOWN FOR COUNTERWEIGHT REMOVAL)

1шт.
