4 - CRANKSHAFT OIL SEAL AND HOUSING

Запчасти John Deere 90 4 - CRANKSHAFT OIL SEAL AND HOUSING 401 - ENGINE 4

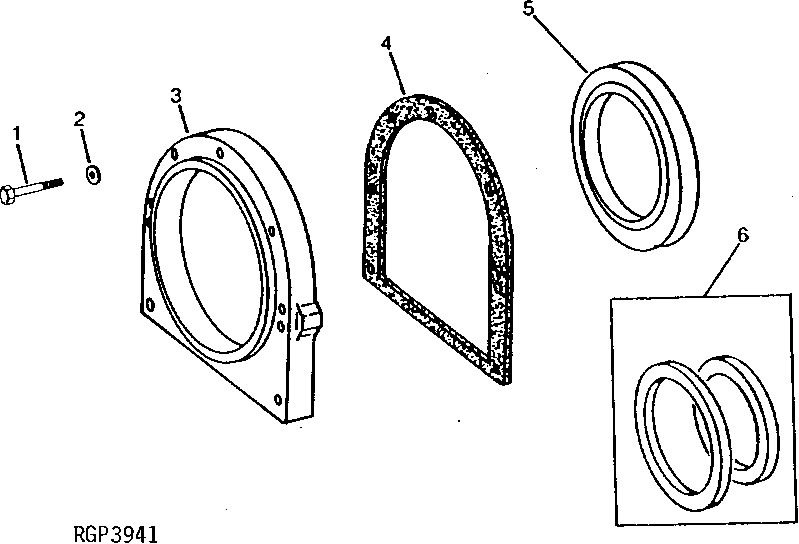

Схема запчастей John Deere 90 - 4 - CRANKSHAFT OIL SEAL AND HOUSING 401 - ENGINE 4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R41035

CAP SCREW

7шт.

2

T27860

WASHER

(USE WITH R110212)

7шт.

3

R46577

HOUSING

(SUB R110212 AND (7) T27860)

1шт.

R73791

HOUSING

1шт.

R110212

HOUSING

1шт.

4

R35043

GASKET

1шт.

5

RE13310

SEAL

(SUB FOR RE13312)

1шт.

6

AR101833

SEAL

(SUB RE13310) (SUB FOR AR48942 AND AR73024)

1шт.
