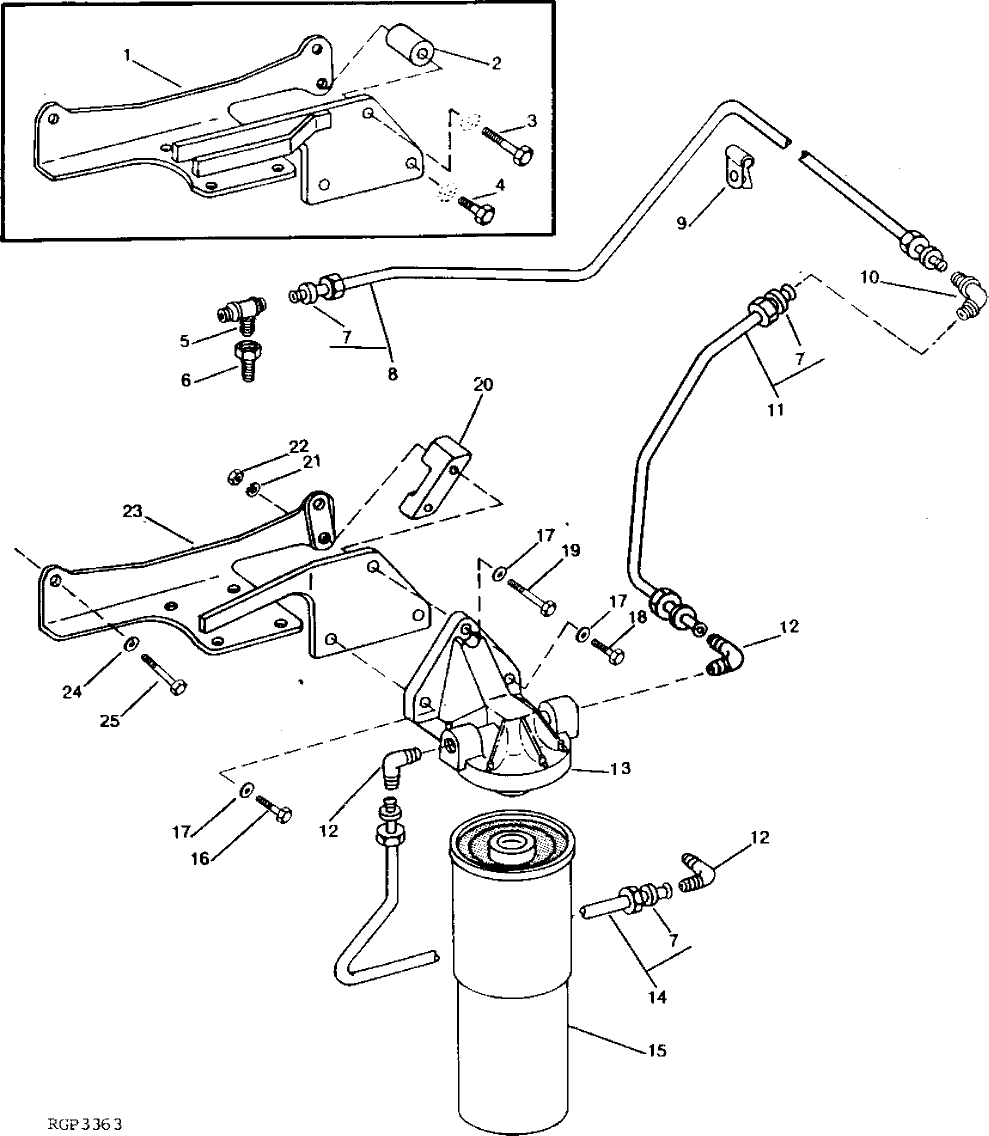

Запчасти John Deere 90A 8 - ENGINE OIL BYPASS FILTER AND LINES 407 - ENGINE 4

1

AR100499

BRACKET

(NLA) (SUB RE10119, R76996, 12H304, E55662, 19H1731, 19H1765, (2) 19H2055, 19H2639 AND (3) 24H1303)

1шт.

2

R75733

SPACER

1шт.

3

19H2023

CAP SCREW

3/8" X 3-1/4"

1шт.

4

19H1731

CAP SCREW

3/8" X 1"

2шт.

5

R74742

TEE FITTING

1шт.

6

15H607

PIPE BUSHING

1шт.

7

R67092

SEALING WASHER

6шт.

8

AR100483

OIL LINE

(SUB RE10121 AND RE10120)

1шт.

RE10121

OIL LINE

1шт.

9

T30367

CLAMP

(SUB FOR T29299, APPL)

2шт.

10

R75183

ELBOW FITTING

1шт.

11

AR100484

OIL LINE

(SUB RE10120 AND RE10121)

1шт.

RE10120

OIL LINE

1шт.

12

R67803

FITTING

3шт.

13

AR100495

BODY FILLER

1шт.

14

AR101751

OIL LINE

1шт.

15

RE21748

OIL FILTER

(SUB FOR AR98330)

1шт.

16

19H3217

CAP SCREW

3/8" X 1-3/4"

1шт.

17

24H1303

WASHER

13/32" X 11/16" X 0.065", (USE WITH 19H1731)

3шт.

18

19H1936

CAP SCREW

3/8" X 3/4"

1шт.

19

19H2639

CAP SCREW

3/8" X 3-3/8"

1шт.

20

R76996

SUPPORT

1шт.

21

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED)

1шт.

22

E55662

FLANGE NUT

1шт.

23

RE10119

BRACKET

(SUB FOR RE10116)

1шт.

24

12H293

LOCK WASHER

7/16"

2шт.

25

19H2678

CAP SCREW

7/16" X 2-1/8"

2шт.
