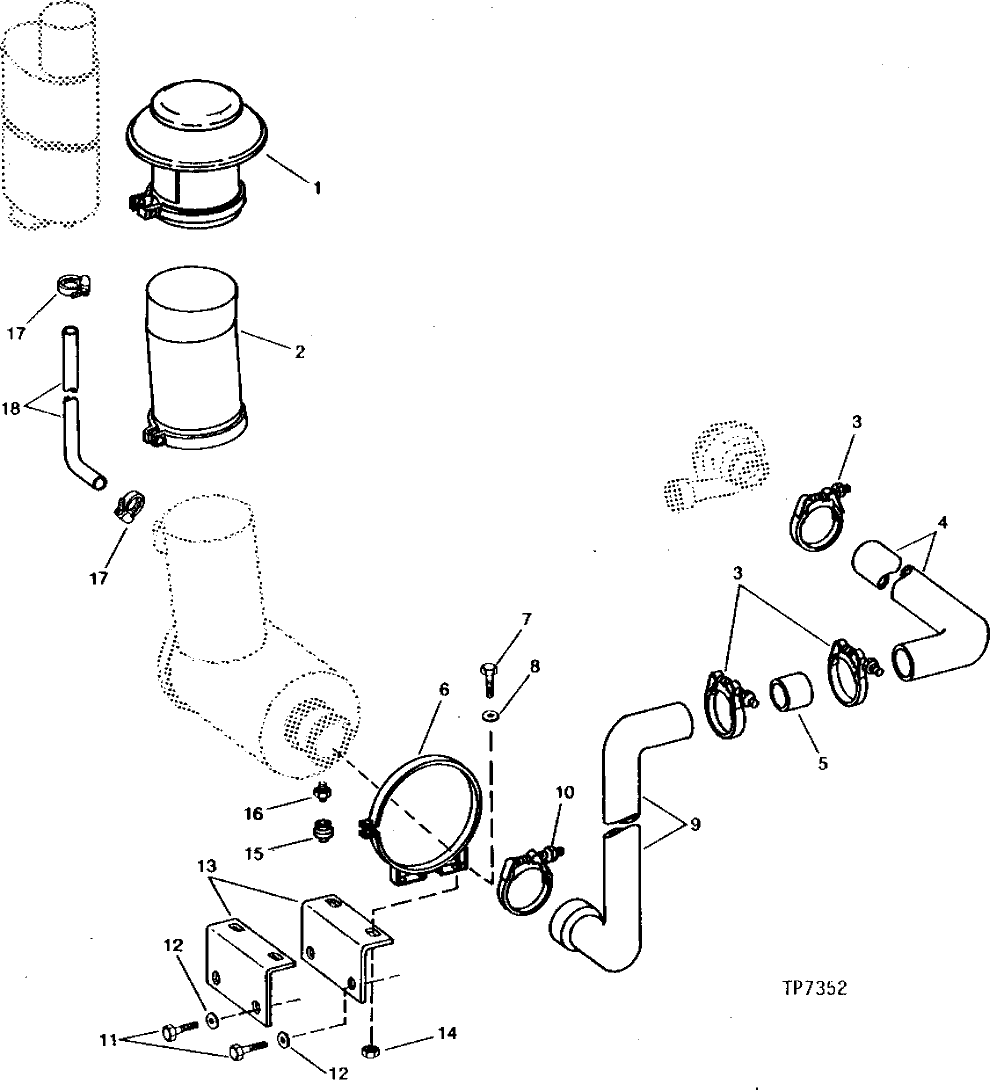

Запчасти John Deere 90A 2 - AIR CLEANER HOSES AND SUPPORTS 520 - ENGINE AUXILIARY SYSTEMS 5

1

AR58782

HOOD

1шт.

2

AT72913

PIPE

1шт.

3

AT37477

HOSE CLAMP

3шт.

4

T74300

HOSE

1шт.

5

T59064

TUBE

1шт.

6

AT27818

CLAMP

2шт.

7

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

8

24H1304

WASHER

13/32" X 23/32" X 0.120"

4шт.

9

HOSE

(SUB FOR T74301) ( T77947 NO LONGER AVAILABLE)

1шт.

10

AT39390

HOSE CLAMP

1шт.

11

19H2994

CAP SCREW

HS, SAE 8, 5/8" X 1-1/2"

4шт.

12

24H1106

WASHER

11/16" X 1-3/4" X 0.134"

4шт.

13

T74302

ANGLE

2шт.

14

14H812

NUT

3/8"

4шт.

15

AT25983

AIR RESTRICTION INDICATOR

1шт.

16

AR44361

FITTING

1шт.

17

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

18

T58887

HOSE

737 MM (29") LONG

1шт.
