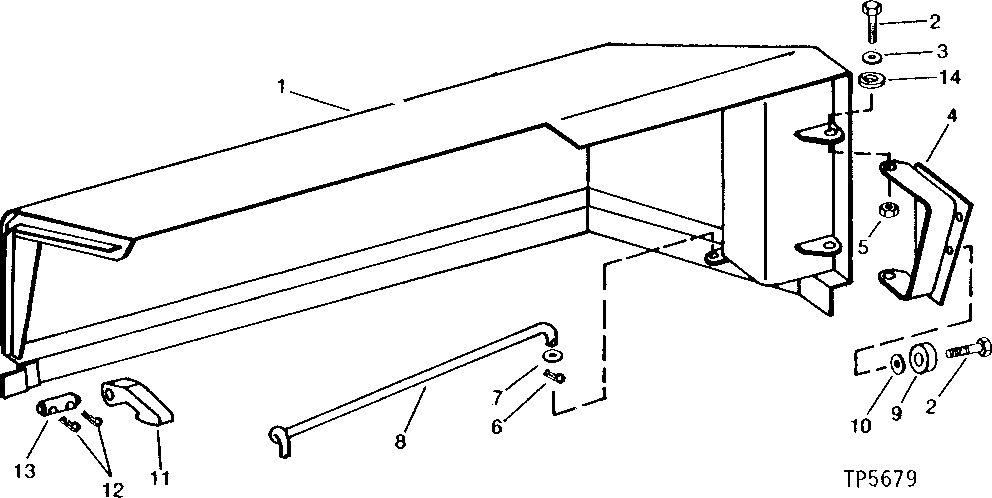

Запчасти John Deere 90A 5 - LEFT FRONT FENDER 1927 - SHEET METAL AND STYLING 19

1

AT45816

FENDER

1шт.

2

19H3417

CAP SCREW

1" X 3"

3шт.

3

24H1452

WASHER

1-1/32" X 1-3/4" X 0.105"

6шт.

4

AT45817

HINGE

1шт.

5

14H1048

NUT

1"

3шт.

6

11M7030

COTTER PIN

5 X 40 MM

1шт.

7

24H1362

WASHER

41/64" X 1" X 0.075", (SUB FOR U46510)

1шт.

8

T47102

SUPPORT

1шт.

9

T35418

BUSHING

3шт.

10

24H1460

WASHER

1-1/32" X 2-5/8" X 1/4"

ARшт.

T58089

WASHER

ARшт.

11

T67115

LATCH

(SUB T74639)

1шт.

T74639

LATCH

1шт.

12

11M7015

COTTER PIN

1/8" X 1"

2шт.

13

U46245

PIN FASTENER

1шт.

14

T47095

BUSHING

2шт.
