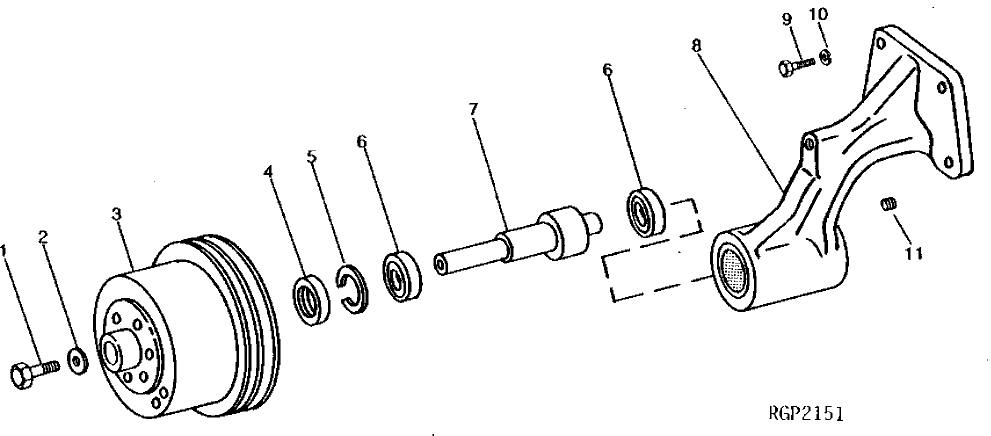

Запчасти John Deere 92DLC 83 - FAN DRIVE PULLEY AND SUPPORT 0429 FAN DRIVE 6466AT014 6466AT014

1

19H1815

Cap Screw

1/2" X 1-1/4"

1шт.

2

T20217

Washer

1шт.

3

R79724

Pulley

1шт.

4

RE20768

Seal

(SUB FOR AR90861, THIS APPLICATION)

1шт.

5

R62191

Snap Ring

1.7 MM (.067") (RED)

ARшт.

R62192

Snap Ring

1.9 MM (.077") (GREEN)

ARшт.

R62193

Snap Ring

2.2 MM (.087") (BLUE)

ARшт.

R62194

Snap Ring

2.5 MM (.097") (WHITE)

ARшт.

6

JD10329

Ball Bearing

(SUB FOR JD10329, THIS APPLICATION)

2шт.

7

R63987

Shaft

1шт.

8

R79810

Support

1шт.

9

19H1765

Cap Screw

3/8" X 1-3/4"

4шт.

10

12H304

Lock Washer

3/8"

4шт.

11

15H686

Pipe Plug

1"

1шт.
