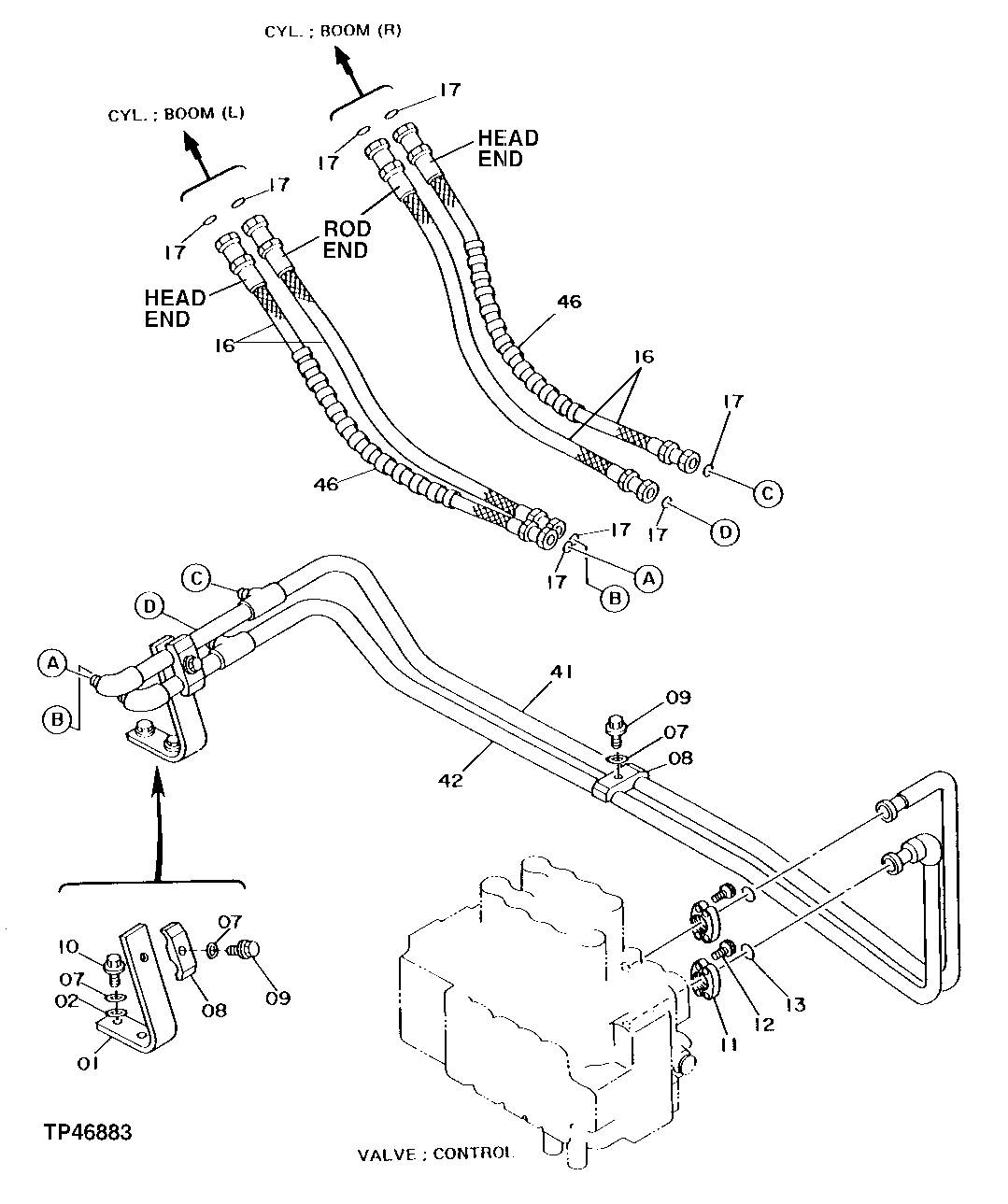

Запчасти John Deere 92DLC 214 - BOOM CYLINDER HOSES 3360 HYDRAULIC SYSTEM

1

4206060

Support

(SUB FOR TH111310)

1шт.

2

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

7

12H301

Lock Washer

1/2"

4шт.

8

4189860

Clamp

(SUB FOR TH108314)

2шт.

9

19M7753

Cap Screw

M12 X 70

2шт.

19M8348

Cap Screw

M12 X 65

2шт.

10

M341232

Bolt

M12 X 32 (SUB FOR AT122 616 ) (SUB FOR AT133980)

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

11

R29424

Flange Fitting

(SUB FOR TH108300)

4шт.

12

19M8337

Screw

M10 X 30

8шт.

13

T59014

O-Ring

24.994 X 3.531 mm (SUB FOR TH100939)

2шт.

16

4187391

Hydraulic Hose

(SUB FOR TH111229)

4шт.

17

T76938

O-Ring

23.520 X 1.780 mm (SUB FOR TH108326)

8шт.

41

7017654

Oil Line

(SUB FOR TH111439)(HEAD END)

1шт.

42

7017655

Oil Line

(SUB FOR TH111440)(ROD END)

1шт.

46

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.
