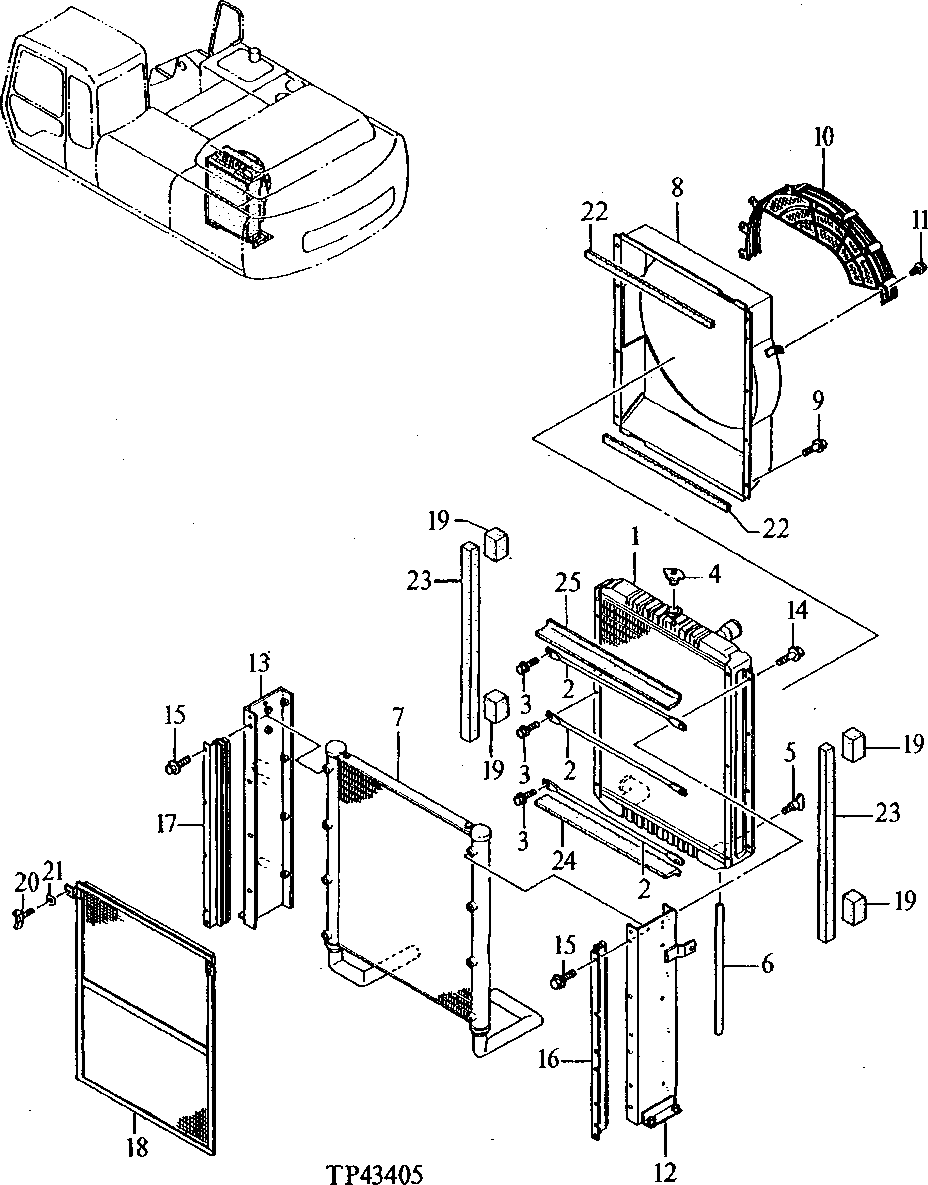

Запчасти John Deere 92ELC 85 - Radiator ( - 010999) 0510 Engine Cooling Systems

1

4335474

Radiator

(SUB FOR AT201082)

1шт.

2

4216269

Rod

(SUB FOR AT201061)

3шт.

3

19M7881

Screw

M8 X 20

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

PT10336

Washer

8.200 X 17 X 2 mm (0.3 23" X 0.669" X 0.079")

6шт.

4

AT169085

Filler Cap

(SUB FOR TH111864)

1шт.

5

4148705

Drain Plug

(SUB FOR TH109425)

1шт.

6

Hose

(CTL FROM 1/2 INCH I.D. VI NYL TUBING) ( TH108233 NLA)

1шт.

7

4335475

Oil Cooler

(SUB FOR AT201083)

1шт.

8

4323643

Shroud

(SUB FOR AT201072)

1шт.

9

19M7932

Cap Screw

M8 X 16

8шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

8шт.

10

4323644

Guard

(SUB FOR AT201073)

1шт.

11

19M7932

Cap Screw

M8 X 16

7шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

7шт.

12

4320510

Bracket

(SUB FOR AT201062)

1шт.

13

4320511

Bracket

(SUB FOR AT201063)

1шт.

14

4349857

Bolt

(SUB FOR AT201074)

8шт.

15

4349857

Bolt

(SUB FOR AT201074)

8шт.

16

4320512

Bracket

(SUB FOR AT201064)

1шт.

17

4320513

Bracket

(SUB FOR AT201065)

1шт.

18

4320517

Screen

(SUB FOR AT201068)

1шт.

19

4320514

Packing

4шт.

20

21M1689

Wing Screw

M6 X 12

2шт.

21

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

22

4287054

Packing

2шт.

23

4323712

Packing

2шт.

24

4287053

Packing

1шт.

25

4320515

Packing

1шт.
