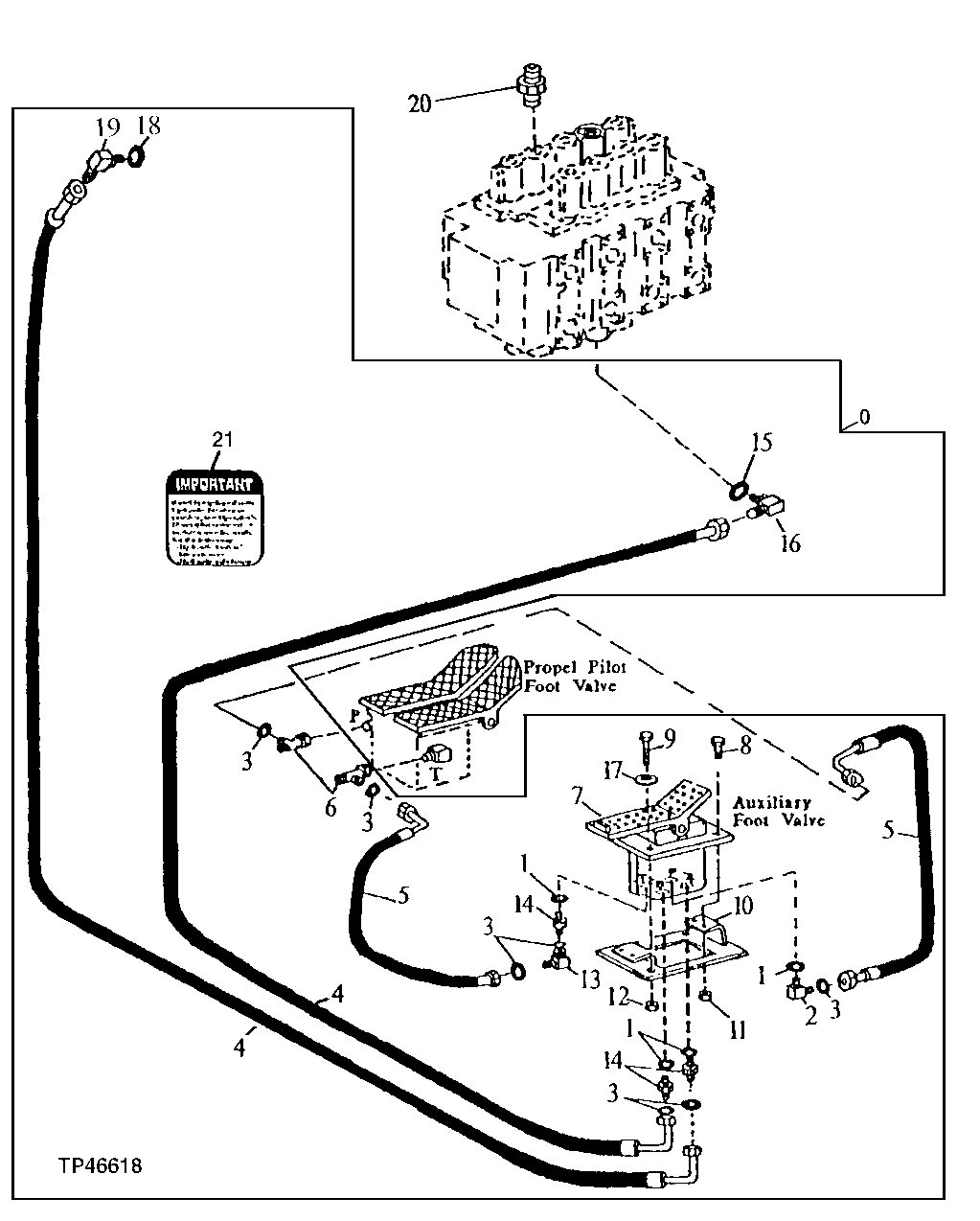

Запчасти John Deere 92ELC 238 - Auxiliary Foot Control Valve 3315 Control Linkage

0

Control

(WHOLE GOODS) ( AT160350 AND AT185482 NLA) ( SUB AT195684) ( AT195684 NLA) (ALSO ORDER TH108440, AT152138, 38H127 8 AND (2) T77613) Auxiliary Foot Pedal

1шт.

1

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

2

38H1004

Elbow Fitting

1шт.

3

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

7шт.

4

AT160348

Hydraulic Hose

17.4752" X 3454 mm (136") X 17.4752"

2шт.

5

AT152138

Hydraulic Hose

9/16" X 515 mm (20-1/4") X 17.4752"

2шт.

6

AT36921

Tee Fitting

2шт.

7

AT152120

Valve

1шт.

8

19M7866

Screw

M8 X 20

4шт.

9

19M7784

Screw

M10 X 20

2шт.

10

AT115535

Support

1шт.

11

14M7298

Flange Nut

M8

4шт.

12

14M7296

Flange Nut

M10

1шт.

13

38H1094

Elbow Fitting

1шт.

14

38H1160

Adapter Fitting

3шт.

15

CH11570

O-Ring

1шт.

16

AT137356

Elbow Fitting

1шт.

17

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

18

CH11570

O-Ring

Not Used on 892ELC

1шт.

19

AT137356

Elbow Fitting

Not Used on 892ELC

1шт.

20

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

20A

CH11570

O-Ring

1шт.

21

T149434

Label

On Right Side of Cab Between Ash Tray and Operator's Caution Decal

1шт.
