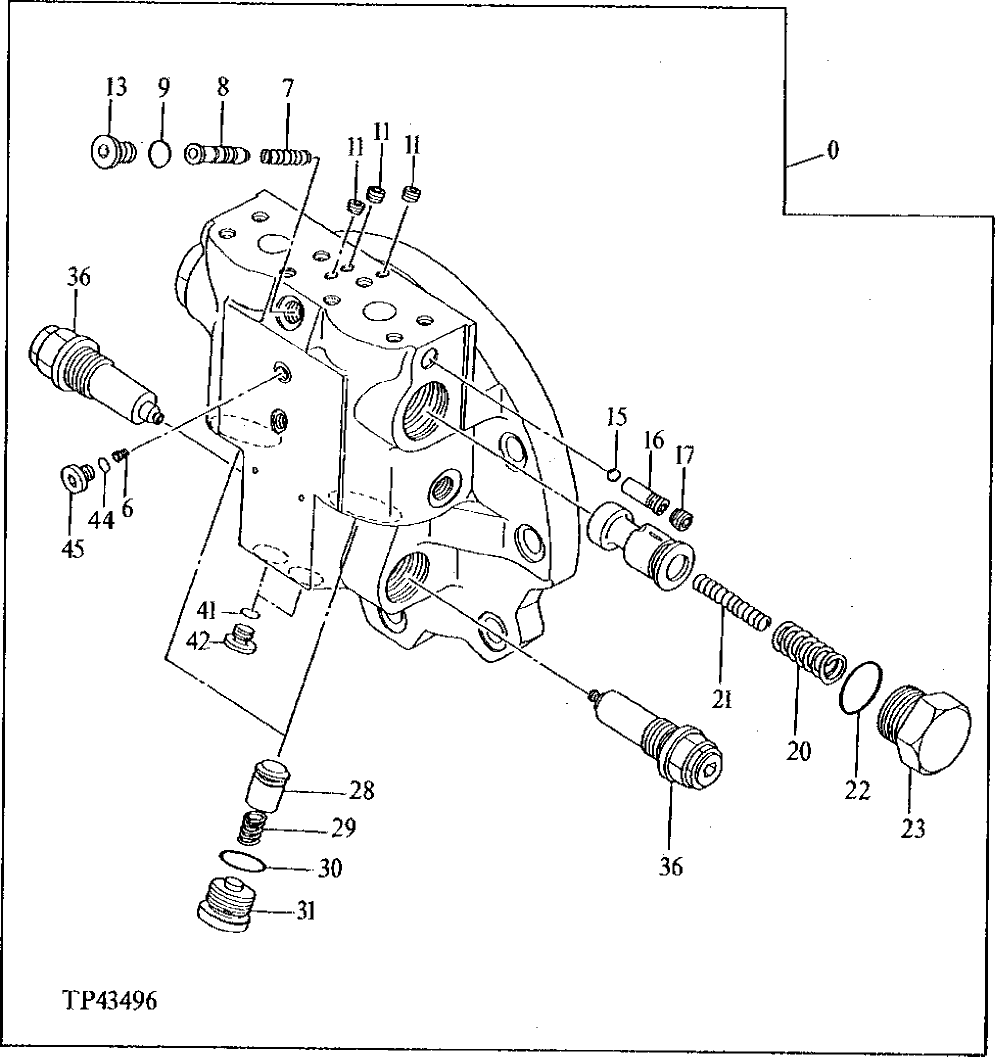

Запчасти John Deere 92ELC 16 - Brake Valve ( - 010999) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9127390

Flow Control Hyd. Valve

(SUB FOR AT201170)

1шт.

6

4252176

Orifice

(SUB FOR AT200992)

1шт.

7

4185136

Spring

(SUB FOR T107783)

1шт.

8

4188556

Spool

(SUB FOR TH111230)

1шт.

9

CH11570

O-Ring

1шт.

11

15H560

Pipe Plug

1/16"

3шт.

13

15M7036

Drain Plug

1шт.

15

R26552

Ball

7.938 mm (5/16")

1шт.

16

4197136

Seat

(SUB FOR TH111285)

1шт.

17

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

20

4180687

Spring

(SUB FOR T107785)

2шт.

21

4180688

Compression Spring

(SUB FOR T107786)

2шт.

22

T110441

O-Ring

34.700 X 3.500 mm (1.366" X 0.138")

2шт.

23

4195070

Fitting Plug

(SUB FOR T107794)

2шт.

28

4174629

Poppet

(SUB FOR T107788)

2шт.

29

4174072

Spring

(SUB FOR T107789)

2шт.

30

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

31

4195071

Fitting Plug

(SUB FOR T107795)

2шт.

36

9076536

Pressure Relief Valve

(SUB FOR TH111614)

2шт.

41

M800650

Packing

2шт.

42

4208977

Drain Plug

(SUB FOR TH111351)

2шт.

44

M800650

Packing

1шт.

45

4208977

Drain Plug

(SUB FOR TH111351)

1шт.
