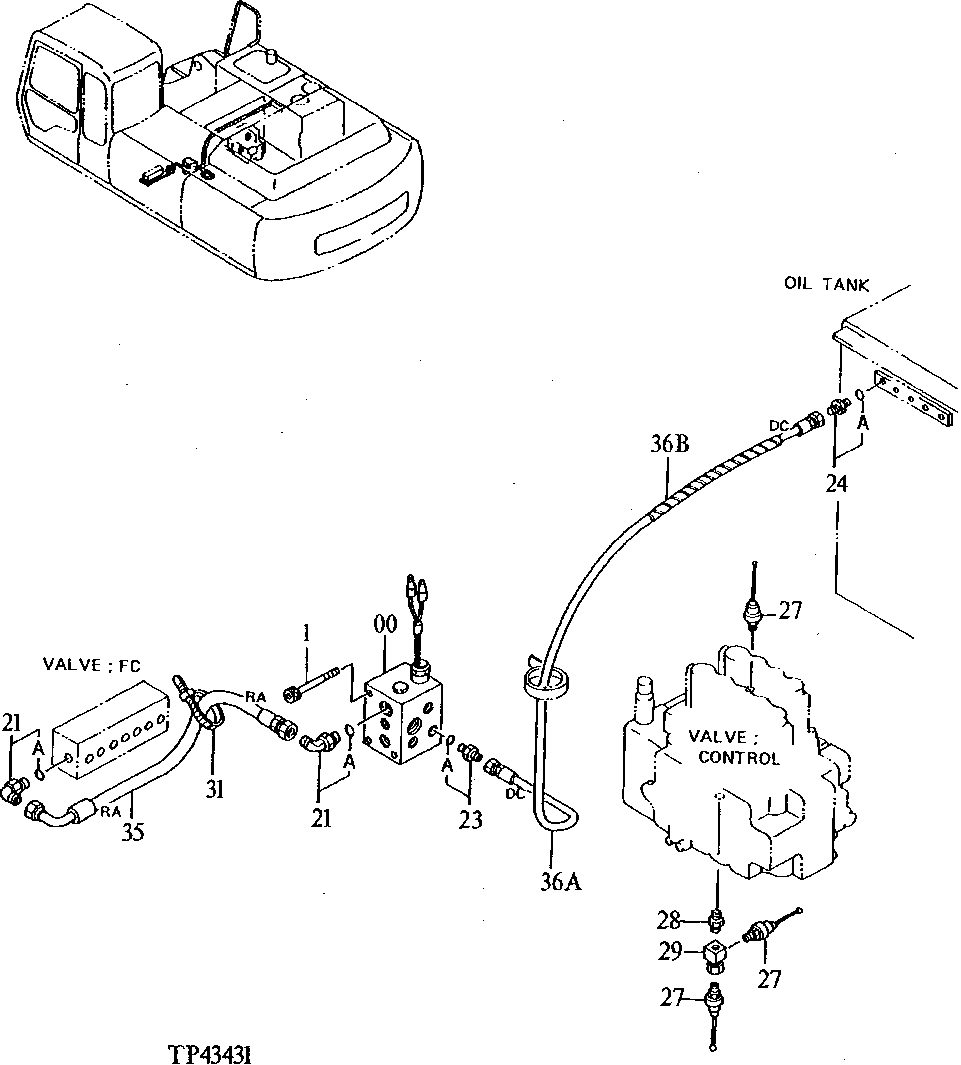

Запчасти John Deere 92ELC 253 - PILOT PIPINGS ( - 010999) 3360 Hydraulic System

0

TH9238584

Valve

SUB FOR AT201052

1шт.

1

19M8433

Screw

M8 X 110 SUB FOR 19M8493

3шт.

21

4154672

Elbow Fitting

SUB FOR TH101008

2шт.

21A

4506418

O-Ring

SUB FOR U46489

1шт.

23

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

23A

M800650

Packing

1шт.

24

4200468

Adapter Fitting

SUB FOR AT126336

1шт.

24A

CH11570

O-Ring

1шт.

27

4259333

Pressure Switch

SUB FOR TH108413

3шт.

28

4242510

Adapter Fitting

SUB FOR AT126870

1шт.

29

4242511

Tee Fitting

SUB FOR AT126871

1шт.

31

H77698

Tie Band

1шт.

35

4319374

Hydraulic Hose

SUB FOR AT201264

1шт.

36A

4319375

Hose

SUB FOR AT201265

1шт.

36B

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.
