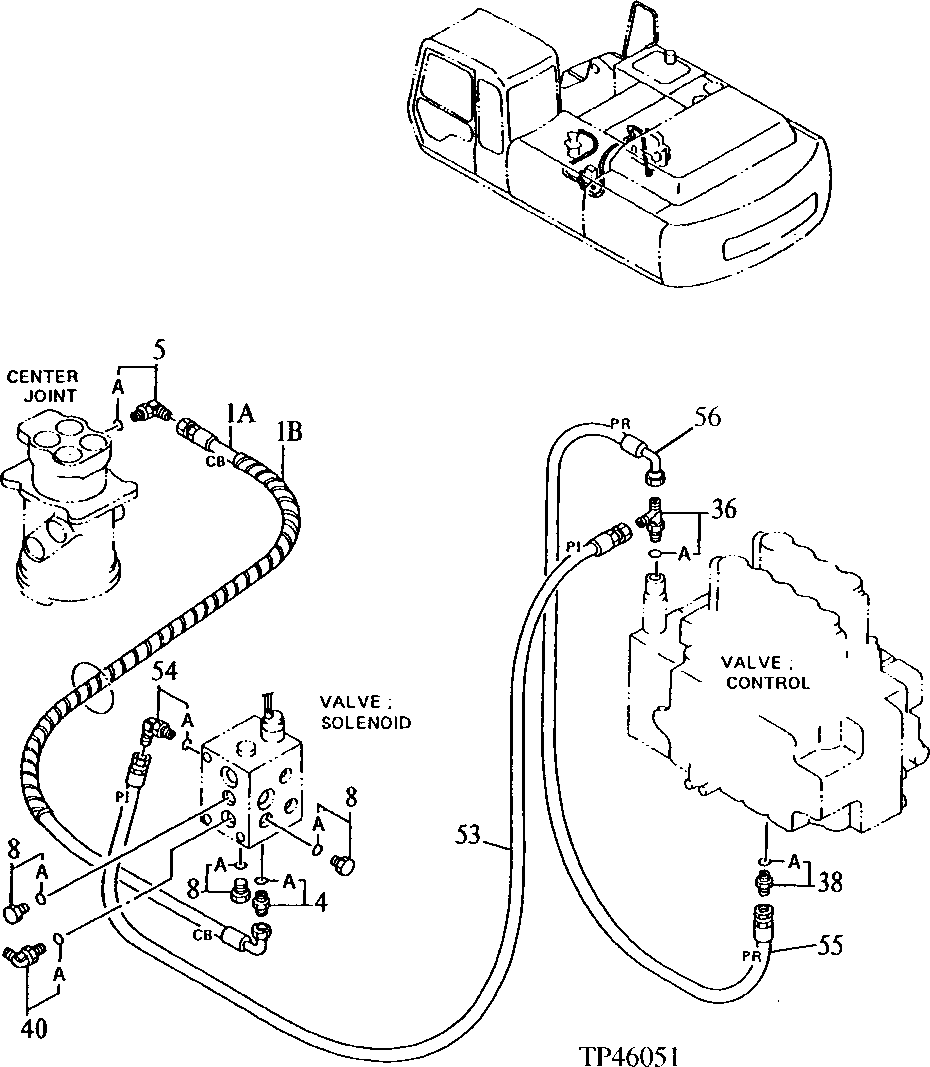

Запчасти John Deere 92ELC 261 - PILOT PIPINGS ( - 010999) 3360 Hydraulic System

1A

4316565

Hose

SUB FOR AT201246

1шт.

1B

4327315

Hose Guard

4327293 NLA, SUB FOR TH106022 OR 4133527

1шт.

4

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

4A

M800650

Packing

1шт.

5

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

5A

M800650

Packing

1шт.

8

AT318013

Drain Plug

SUB FOR 4093624, SUB FOR TH102536

3шт.

8A

M800650

Packing

1шт.

36

4203171

Tee Fitting

SUB FOR TH110578

1шт.

36A

M800650

Packing

1шт.

38

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

38A

M800650

Packing

1шт.

40

4202112

Elbow Fitting

SUB FOR TH108322

1шт.

40A

CH11570

O-Ring

1шт.

53

AE42281

Hydraulic Hose

11.1252" X 1850 mm (72-3/4") X 11 .1252" SUB FOR AT201268 Fabricate

1шт.

54

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

54A

M800650

Packing

1шт.

55

AH96002

Hydraulic Hose

11.1252" X 1117 mm (44") X 11.1252" SUB FOR AT201267, ALONG W/ AH89069 Fabricate

1шт.

56

AH89069

Elbow Fitting

1шт.
