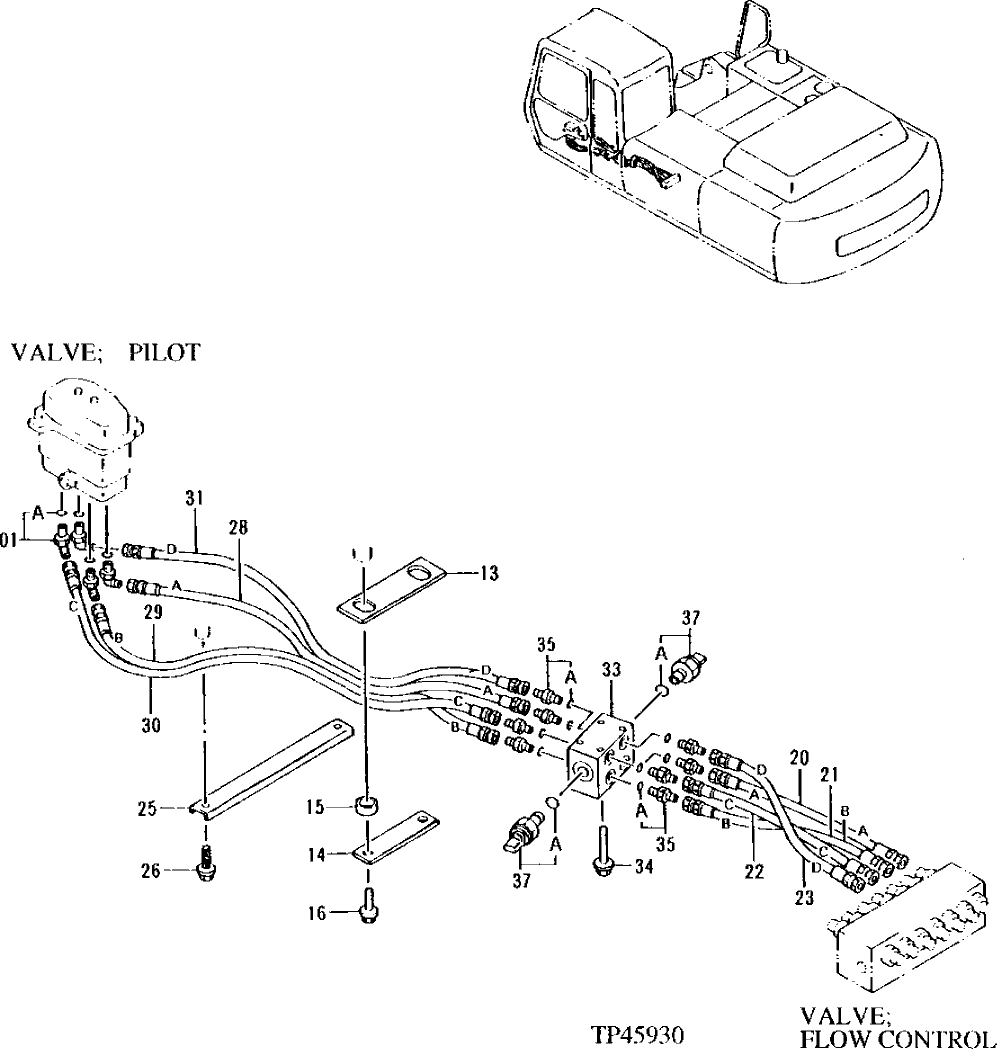

Запчасти John Deere 92ELC 272 - PILOT PIPINGS (011000 - ) 3360 Hydraulic System

1

AT318014

Elbow Fitting

SUB FOR 4156434 AND TH101930

4шт.

1A

M800650

Packing

1шт.

13

4270771

Plate

SUB FOR AT154311

1шт.

14

9736384

Plate

SUB FOR AT154544

1шт.

15

R54204

Half Sleeve

SUB FOR AT154312 OR 4270773

2шт.

16

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

20

4345772

Hydraulic Hose

SUB FOR AT204978

1шт.

4370515

Hydraulic Hose

SUB FOR AT178263

1шт.

21

4345773

Hydraulic Hose

SUB FOR AT204979

1шт.

4370516

Hydraulic Hose

SUB FOR AT178264

1шт.

22

4345774

Hydraulic Hose

SUB FOR AT204980

1шт.

4370517

Hydraulic Hose

SUB FOR AT178265

1шт.

23

4345775

Hydraulic Hose

SUB FOR AT204981

1шт.

4370518

Hydraulic Hose

SUB FOR AT178266

1шт.

25

4323723

Channel

SUB FOR AT201277

1шт.

26

19M8324

Cap Screw

M10 X 16

2шт.

12M7066

Lock Washer

10 mm

2шт.

28

4331760

Hydraulic Hose

SUB FOR AT204762

1шт.

29

4331761

Hydraulic Hose

(SUB FOR AT204763)

1шт.

30

4331762

Hydraulic Hose

SUB FOR AT204764

1шт.

31

4331763

Hydraulic Hose

SUB FOR AT204765

1шт.

33

4299721

Flow Control Hyd. Valve

SUB FOR AT202576 Shuttle

1шт.

34

19M8456

Cap Screw

M8 X 100

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

35

4200466

Adapter Fitting

SUB FOR TH108320

8шт.

35A

CH11570

O-Ring

1шт.

37

Sensor

4326876 NLA, SUB FOR A T202458 Travel Pressure

2шт.

37A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.
