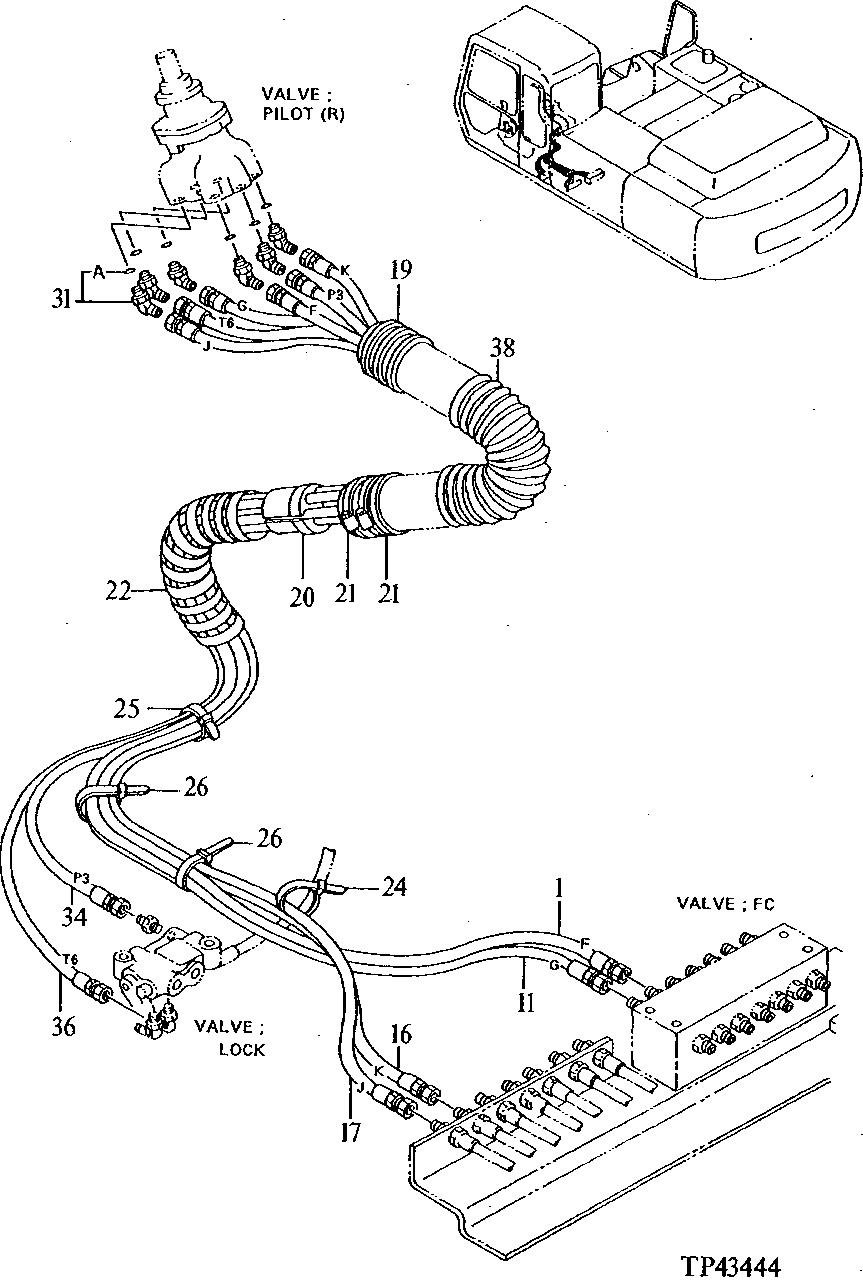

Запчасти John Deere 92ELC 276 - PILOT PIPINGS ( - 010999) 3360 Hydraulic System

1

AT201255

Hydraulic Hose

1шт.

11

AT201256

Hydraulic Hose

1шт.

16

AT201257

Hydraulic Hose

1шт.

17

AH132373

Hose

9/16" X 2199 mm (86-1/2") X 9/16" (SUB FOR AT201258)

1шт.

19

4319234

Conduit

(SUB FOR AT154270)

1шт.

20

3056040

Stop

(SUB FOR AT154140)

1шт.

21

TY22472

Clamp

(SUB FOR AT145651)

2шт.

22

Hose Guard

(MF XHG-075, BULK MATERIA L, CTL) (SUB FOR AT138222)

1шт.

24

H77698

Tie Band

1шт.

25

H77698

Tie Band

1шт.

26

H77698

Tie Band

2шт.

31

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

31A

M800650

Packing

1шт.

34

AT161995

Hydraulic Hose

9/16" X 1600 mm (63") X 9/16" (SUB FOR AT200759)

1шт.

36

AT161995

Hydraulic Hose

9/16" X 1600 mm (63") X 9/16" (SUB FOR AT200772)

1шт.

38

4317953

Tube

(SUB FOR AT201250)

1шт.
