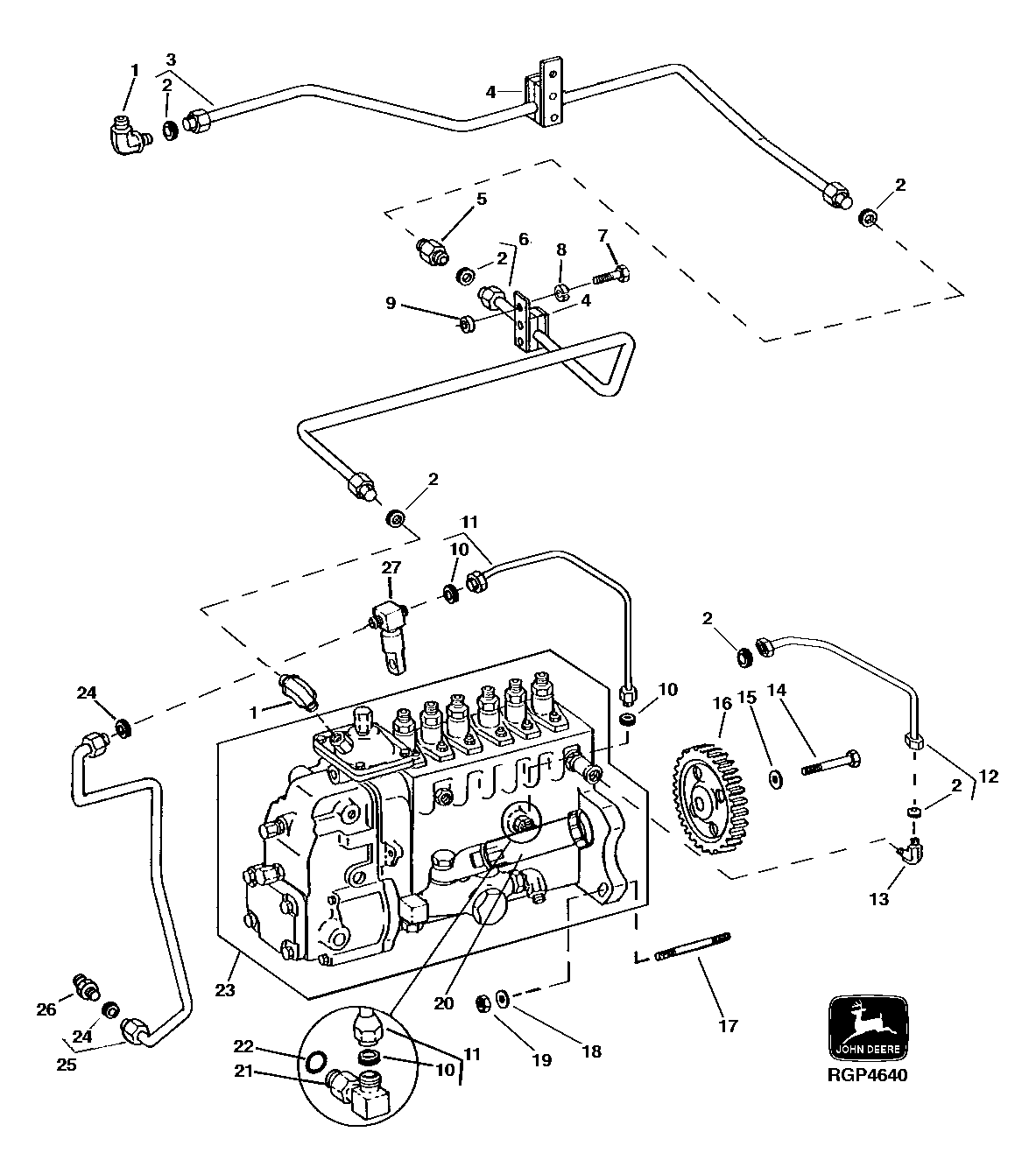

Запчасти John Deere 92ELC 46 - Fuel Injection Pump, Fuel Control Lines And Lube Lines (574872 - ) 0413 Fuel Injection System 6076AT030 6076AT030

1

R67364

Elbow Fitting

2шт.

2

R51936

Sealing Washer

12шт.

3

RE66060

Fuel Line

Not As Shown

1шт.

4

R72818

Strap

2шт.

R70407

Clamp

4шт.

R72817

Strap

2шт.

21H1463

Cap Screw

0.190" X 7/8"

4шт.

12H246

Lock Washer

0.190"

NAшт.

5

R67271

Union Fitting

1шт.

6

RE49465

Fuel Line

1шт.

7

19H1731

Cap Screw

3/8" X 1"

1шт.

8

28H1518

Washer

0.493" X 0.675" X 5/16"

1шт.

9

28H1522

Spacer

0.493" X 0.675" X 11/16"

1шт.

10

R67264

Packing

2шт.

11

RE38036

Oil Line

1шт.

12

RE49455

Fuel Line

1шт.

13

R67364

Elbow Fitting

1шт.

14

19H3690

Screw

3/8" X 3/4"

4шт.

15

R63845

Washer

4шт.

16

R104590

Gear

1шт.

17

R114130

Stud

4шт.

18

M72490

Washer

4шт.

19

14H1090

Nut

3/8"

4шт.

20

RE50185

Fuel Pump

1шт.

21

AR88903

Elbow Fitting

1шт.

22

R26448

O-Ring

1шт.

23

RE65357

Fuel Injection Pump

(A) Denso (SUB RE500057, (6) R E30159, R110195 AND (2) 19M8826)

1шт.

SE500469

Fuel Injection Pump Reman

(REMAN FOR RE65357)

1шт.

RE500057

Fuel Injection Pump

(A) Denso (ALSO ORDER R110195 AND (2) 19M8826) (USE W/ RE64738 AND RE30159 ) (SUB FOR RE65357)

1шт.

SE500470

Fuel Injection Pump Reman

(REMAN FOR RE500057)

1шт.

24

R51936

Sealing Washer

2шт.

25

RE42590

Aneroid Line

1шт.

26

R63604

Fitting

(TO BLOCK)

1шт.

27

AR87636

Tee Fitting

1шт.

R62106

Screw

1шт.

R62107

Washer

2шт.
