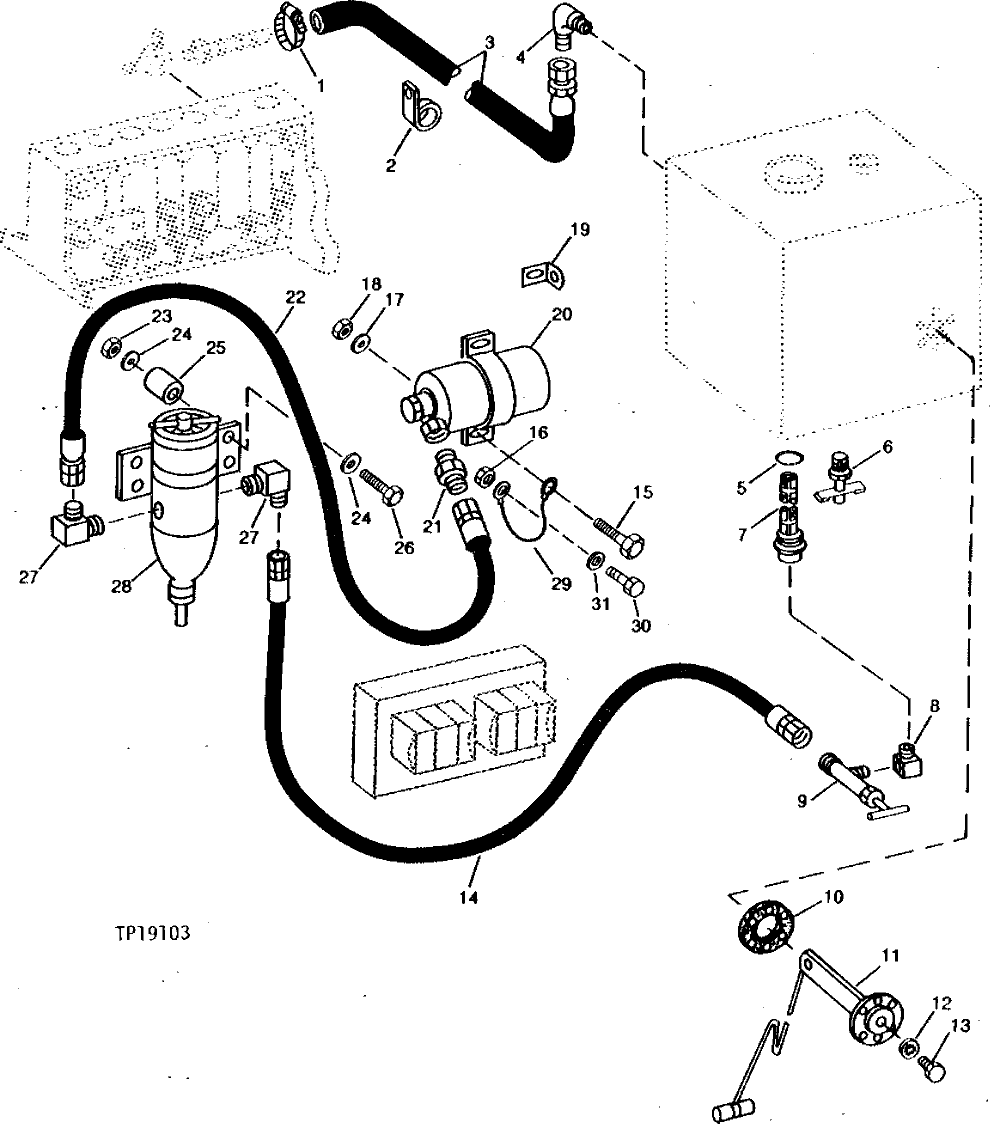

Запчасти John Deere 90 6 - FUEL TANK FUEL HOSE 560 - ENGINE AUXILIARY SYSTEMS 5

1

TY22464

CLAMP

(SUB FOR AR21836)

1шт.

2

T43361

CLIP

2шт.

3

AT69266

HYDRAULIC HOSE - FABRICATE

1 448 MM (57")

1шт.

4

U45538

ELBOW FITTING

1шт.

5

U12547

O-RING

(SUB FOR F3171R)

1шт.

6

AT13740

DRAIN VALVE

1шт.

7

T56056

STRAINER

1шт.

8

T11645

ELBOW FITTING

1шт.

9

AT48731

VALVE

1шт.

10

R27181

GASKET

1шт.

11

AT48730

SENDER

1шт.

12

12M7084

LOCK WASHER

4.300 MM

5шт.

13

37H95

SCREW

5шт.

14

AT107126

HYDRAULIC HOSE - FABRICATE

9/16" X 1 127 MM (44-1/4") X 9/16", (SUB FOR AT77443)

1шт.

15

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

16

14H778

NUT

0.190"

1шт.

17

12H303

LOCK WASHER

2шт.

18

14H1076

NUT

3/8"

2шт.

19

T81156

ANGLE

1шт.

20

RE16143

FUEL PUMP

1шт.

21

R44795

ADAPTER FITTING

1шт.

22

AT69264

HYDRAULIC HOSE - FABRICATE

9/16" X 318 MM (12-1/2") X 9/16"

1шт.

23

14H785

NUT

5/16"

4шт.

24

24H1122

WASHER

3/8" X 7/8" X 0.083"

8шт.

25

28H1495

SPACER

0.493" X 0.675" X 1"

4шт.

26

19H3131

CAP SCREW

5/16" X 2"

4шт.

27

AT35121

ELBOW FITTING

(SUB FOR AR26725)

2шт.

28

RE228937

FILTER

(SUB FOR RE11324)

1шт.

29

AT62403

WIRING LEAD

1шт.

30

19H3370

CAP SCREW

0.190" X 5/8"

1шт.

31

12H340

LOCK WASHER

0.190"

1шт.
