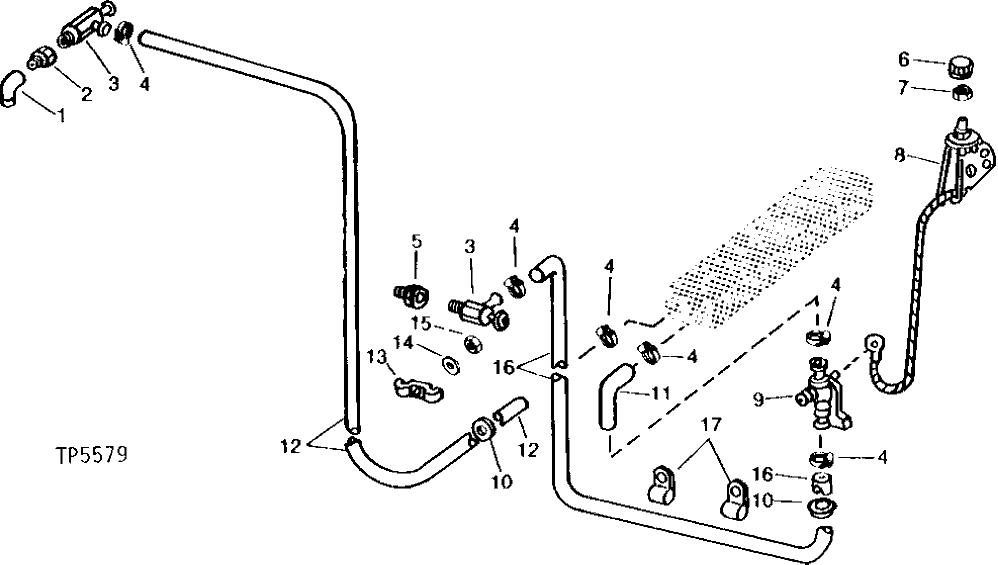

Запчасти John Deere 90 7 - HEATER HOSES AND VALVES 1830 - OPERATORS STATION 18

1

15H602

ELBOW FITTING

(SUB FOR 15H200) 1/2"

1шт.

2

15H586

ADAPTER FITTING

1/2" X 3/8"

1шт.

3

AT169553

DRAIN VALVE

(SUB FOR AT169553, THIS APPLICATION)

2шт.

4

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

6шт.

5

U45789

ADAPTER FITTING

1шт.

6

AL58295

KNOB

(SUB FOR AR69370) (SUB FOR AR49969, THIS APPLICATION)

1шт.

7

R44165

LOCK NUT

1шт.

8

AT56096

CONTROL

1шт.

9

AT69645

HAND OPERATED VALVE

1шт.

10

U16949

GROMMET

2шт.

11

TY22399

HOSE

(SUB FOR H82425)

1шт.

12

HOSE

(MAKE FROM TY22328) (SUB FOR T78162) 4 572 MM (5/8" X 180") LONG (SUB FOR T48977, THIS APPLICATION)

1шт.

13

HOSE

(MAKE FROM TY22328) (SUB FOR T78162) (SUB FOR U43303, THIS APPLICATION)

1шт.

14

12H304

LOCK WASHER

3/8"

1шт.

15

14H812

NUT

3/8"

1шт.

16

TY22328

BULK HOSE

(MAKE FROM TY22328) (SUB FOR T78162) (SUB FOR T78162) 3 784 MM (5/8" X 149") LONG (SUB FOR T37742, THIS APPLICATION)

1шт.

17

T26955

CLAMP

(SUB FOR R40791, THIS APPLICATION)

2шт.
