13 - SWING MOTORS TO FILTER DIFFUSER MANIFOLD

Запчасти John Deere 90 13 - SWING MOTORS TO FILTER DIFFUSER MANIFOLD 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

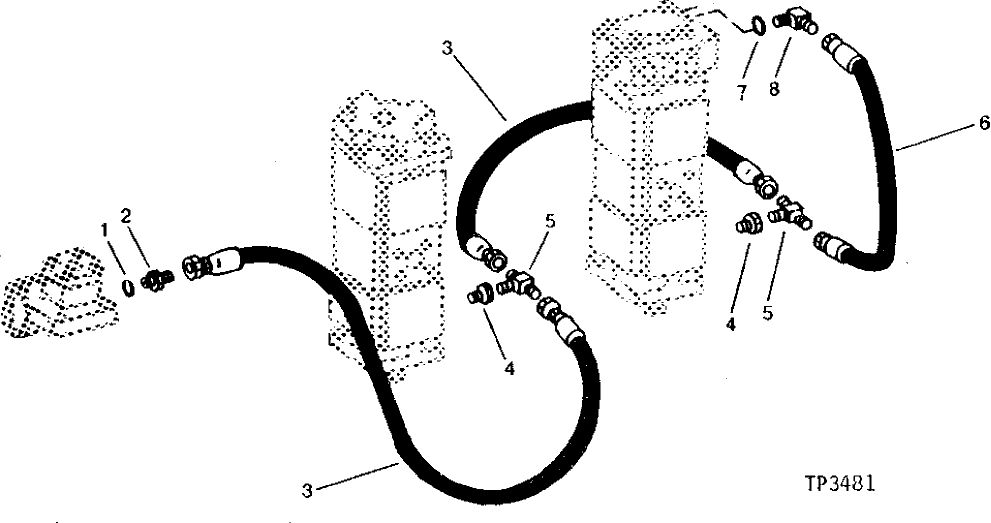

Схема запчастей John Deere 90 - 13 - SWING MOTORS TO FILTER DIFFUSER MANIFOLD 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A3190R

O-RING

1шт.

2

R27237

FITTING

1шт.

3

AT51103

HYDRAULIC HOSE - FABRICATE

3/4" X 889 MM (35") X 3/4"

2шт.

4

T52878

ADAPTER FITTING

2шт.

5

T52877

TEE FITTING

2шт.

6

AT45487

HYDRAULIC HOSE - FABRICATE

3/4" X 693 MM (27-1/4") X 3/4"

1шт.

7

T70177

O-RING

1шт.

8

R39249

ADAPTER FITTING

(SUB FOR AT35120, THIS APPLICATION)

1шт.

Выбрано товаров: 0
