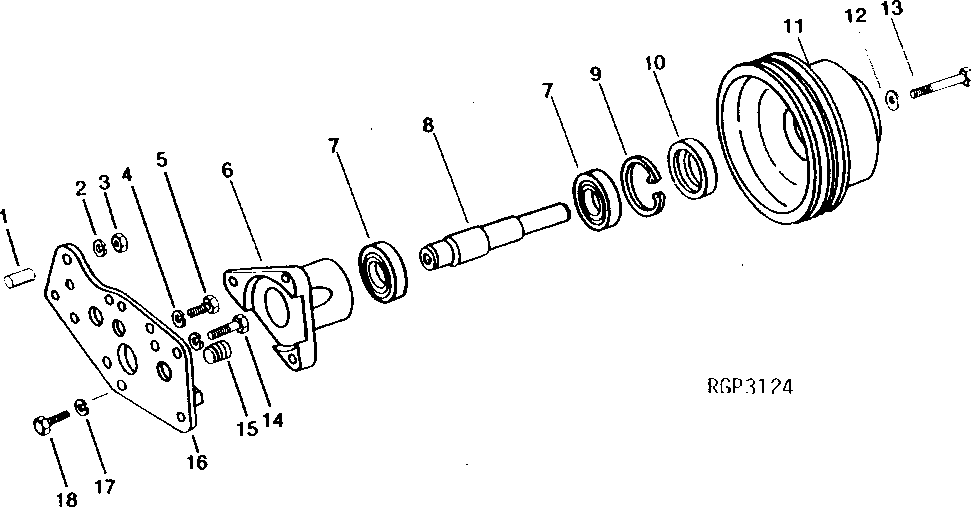

Запчасти John Deere 92DLC 1 - FAN DRIVE AND SUPPORT 429 - ENGINE 4

1

M41645

BUSHING

2шт.

2

12H304

LOCK WASHER

3/8"

2шт.

3

E55662

FLANGE NUT

2шт.

4

12H301

LOCK WASHER

1/2"

3шт.

5

19H2639

CAP SCREW

3/8" X 3-3/8"

2шт.

6

R64157

SUPPORT

1шт.

R110511

SUPPORT

1шт.

7

JD10329

BALL BEARING

(SUB FOR JD10329)

2шт.

8

R63987

SHAFT

1шт.

9

R62191

SNAP RING

(1.7 MM) (RED)

ARшт.

R62192

SNAP RING

(1.9 MM) (GREEN)

ARшт.

R62193

SNAP RING

(2.2 MM) (BLUE)

ARшт.

R62194

SNAP RING

(2.5 MM) (WHITE)

ARшт.

10

RE20768

SEAL

(SUB FOR AR55966 OR AR90861)

1шт.

11

R97865

PULLEY

1шт.

12

T20217

WASHER

1шт.

13

19H1815

CAP SCREW

1/2" X 1-1/4"

1шт.

14

19H2855

CAP SCREW

3/8" X 3-1/4"

1шт.

19H3483

CAP SCREW

3/8" X 1-1/8"

1шт.

15

15H686

PIPE PLUG

1"

1шт.

16

AR79846

PLATE

1шт.

17

12H301

LOCK WASHER

1/2"

3шт.

18

19H456

CAP SCREW

1/2" X 1-3/8"

3шт.
