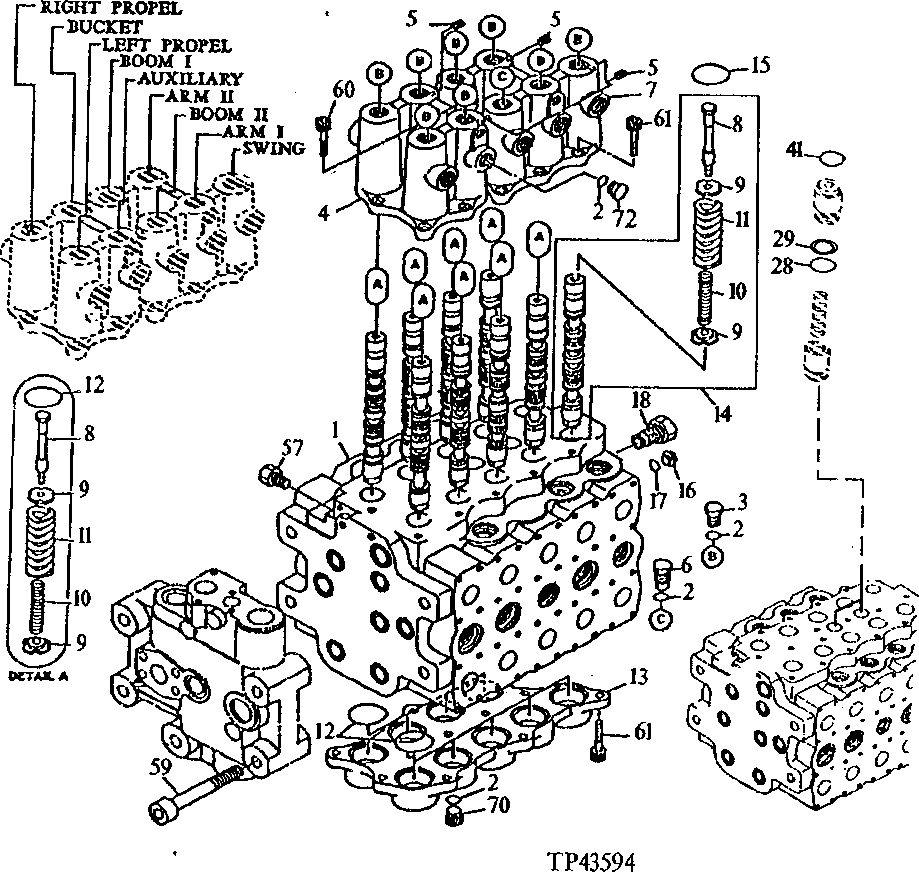

Запчасти John Deere 92DLC 4 - MAIN CONTROL VALVE 3360 - EXCAVATOR 33

1

HOUSING

(SUB 4296334)

1шт.

2

CH11570

O-RING

11шт.

3

0332914

DRAIN PLUG

(SUB FOR TH110315)

8шт.

4

0353202

CAP

(SUB FOR AT132330)

1шт.

5

94-2010

FITTING PLUG

(SUB FOR TH100689)

5шт.

6

0353209

FITTING PLUG

(SUB FOR AT132337)

1шт.

7

0353201

CAP

(SUB FOR AT132329)

1шт.

8

0353207

BOLT

(SUB FOR AT132335)

9шт.

9

0353204

PLATE

(SUB FOR AT132332)

18шт.

10

0353206

SPRING

(SUB FOR AT132334)

9шт.

11

0353205

SPRING

(SUB FOR AT132333)

9шт.

12

CH17260

PACKING

17шт.

13

0353203

CAP

(SUB FOR AT132331)

1шт.

14

4288718

SPOOL

(ALSO ORDER (5) CH17260, (2) CH11564, (2) TH100096 AND (2) AT132396) (SUB FOR AT131238) (SWING)

1шт.

15

CH17260

PACKING

1шт.

16

0332936

FITTING

(SUB FOR TH110337)

1шт.

17

M800650

PACKING

1шт.

18

4254527

PRESSURE RELIEF VALVE

(SUB FOR AT132336)

1шт.

28

AT264333

O-RING

(SUB FOR TH100096)

2шт.

29

4028266

BACK-UP RING

(SUB FOR AT132396)

2шт.

41

CH11564

PACKING

(SUB FOR AT128324)

2шт.

CH11564

PACKING

2шт.

57

0309712

FITTING PLUG

(SUB FOR TH109977) (INCLUDES TH112255 SEAL KIT)

1шт.

57A

4257235

SEAL KIT

(SUB FOR TH112255) (NOT ILLUSTRATED)

1шт.

59

0353226

BOLT

(SUB FOR AT132354)

4шт.

60

0353227

BOLT

(SUB FOR AT132355)

1шт.

61

0353228

BOLT

(SUB FOR AT132356)

26шт.

70

0218608

DRAIN PLUG

(SUB FOR TH110243)

1шт.

71

4296334

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES) (SUB FOR AT130927, AT131804, AT131432, AT186105 AND 4296334EX)

1шт.

72

0218608

DRAIN PLUG

(SUB FOR TH110243) (FOR USE WHEN AUXILIARY SPOOL IS NOT USED)

1шт.

AT131445

ADAPTER FITTING

(FOR USE WITH AUXILAIRY SPOOL FUNCTION) (NOT ILLUSTRATED)

1шт.
