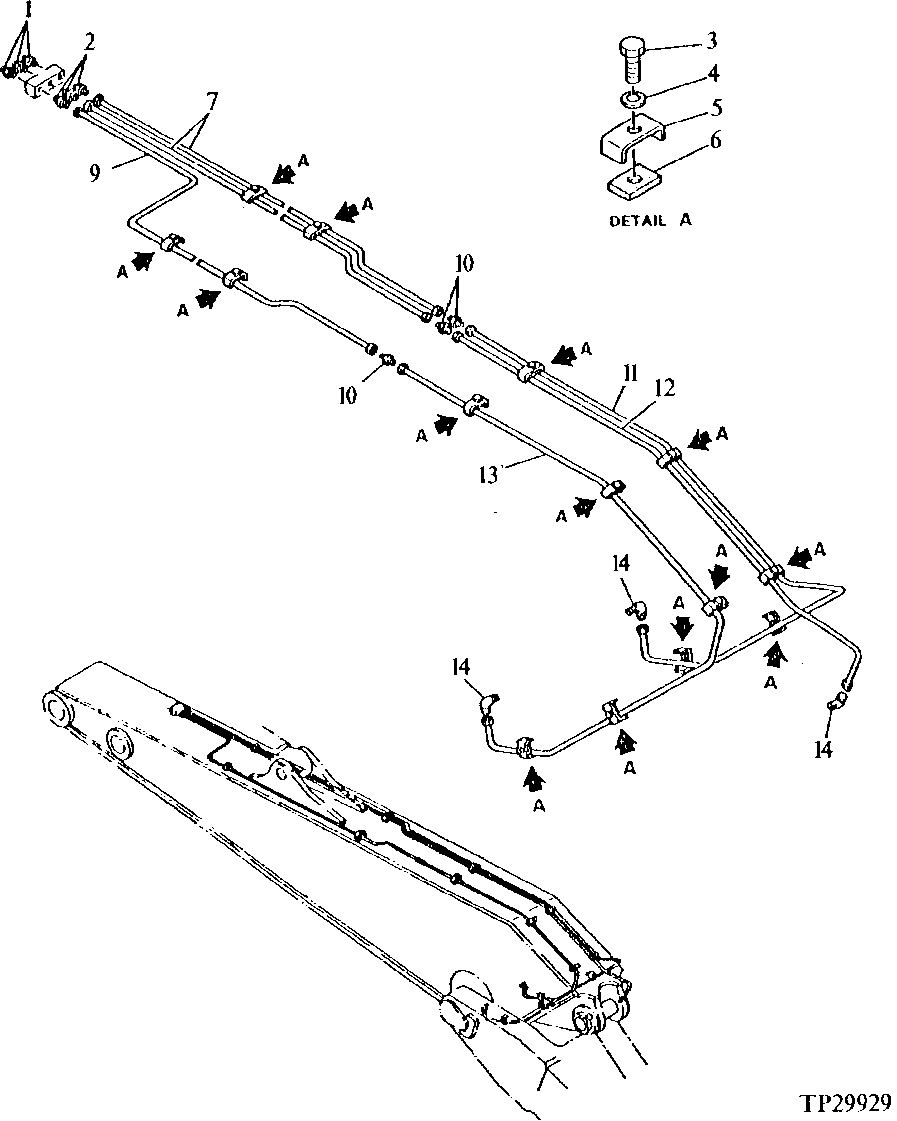

Запчасти John Deere 92DLC 120 - PIPING FOR 16 (4.9 METER) ARM 3360 - EXCAVATOR 33

1

TH100074

LUBRICATION FITTING

3шт.

2

4130169

FITTING

(SUB FOR TH101391)

3шт.

3

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR AT131539 OR TH101717, ALONG WITH 12M7067)

14шт.

12M7058

LOCK WASHER

12 MM (0.472") (SUB FOR 12M7067)

14шт.

4

12H301

LOCK WASHER

12.700 MM (1/2")

14шт.

5

4032160

CLAMP

(SUB FOR AT131669)

14шт.

6

4032161

STRAP

(SUB FOR AT131670)

14шт.

7

3046131

TUBE

(SUB FOR AT132678)

2шт.

9

3046130

TUBE

(SUB FOR AT132677)

1шт.

10

Z32962

FITTING

(SUB FOR T115094)

3шт.

11

3046127

TUBE

(SUB FOR AT132674)

1шт.

12

3046128

TUBE

(SUB FOR AT132675) (ARM CYLINDER ROD END LUBRICATION LINE)

1шт.

13

3046129

TUBE

(SUB FOR AT132676)

1шт.

14

4130175

FITTING

(SUB FOR TH101392)

3шт.
