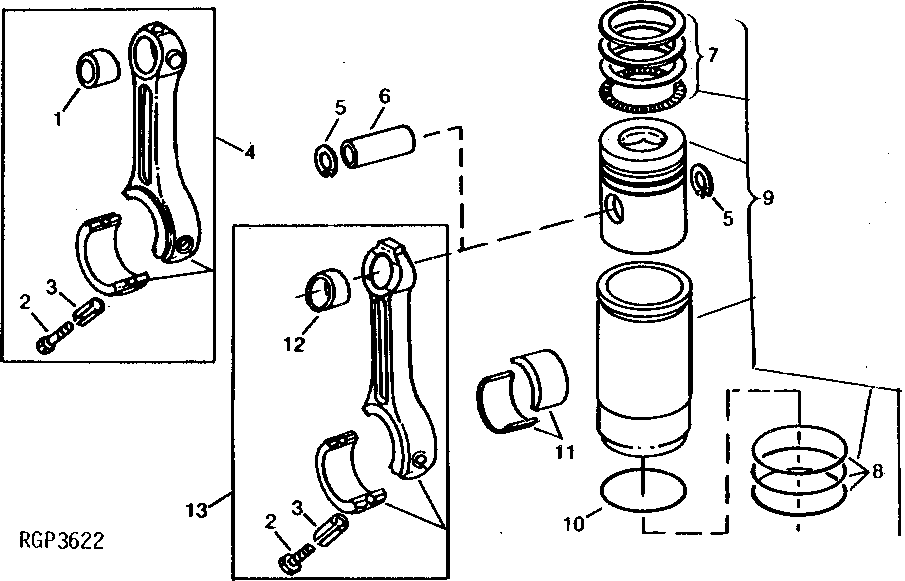

Запчасти John Deere 92DLC 2 - PISTON, RINGS, LINERS, AND CONNECTING RODS 403 - ENGINE 4

1

R60197

BUSHING

(USE WITH R66925 OR R57484)

6шт.

2

R66453

CAP SCREW

(SUB FOR R48316)

12шт.

3

R48317

SLEEVE

12шт.

4

AR86985

CONNECTING ROD

(MARKED R66925 OR R57484) (SUB FOR AR69037) (SUB AR79366 AND RE20291)

6шт.

5

N51168

SNAP RING

12шт.

6

R64451

PISTON PIN

6шт.

7

AR82355

PISTON RING KIT

6шт.

8

AR72351

O-RING KIT

6шт.

9

AR84089

PISTON-LINER KIT

(A) (MARKED AR69038) (USE WITH R57484 OR R66925)

6шт.

RE20291

PISTON-LINER KIT

(B) (MARKED AR85997, RE20275 OR RE42231) (SUB FOR AR89630)

6шт.

RE20288

PISTON-LINER KIT

(C) (MARKED AR85997 OR RE20275) (SUB FOR RE13847) (SUB RE40476)

6шт.

RE40476

PISTON-LINER KIT

(C) (MARKED RE40433 OR RE42231)

6шт.

10

R81276

SHIM

0.05 MM

ARшт.

R81277

SHIM

0.10 MM

ARшт.

11

AR101413

BEARING

STD (PKG (2) R75148) (SUB AR101271)

ARшт.

AR101271

BEARING

STD, (PKG (2) R74671)

ARшт.

AR104129

BEARING

0.05 MM (.002") US, (PKG (2) R60198, (2) R75166 0R (2) R76649) (SUB FOR AR73026)

ARшт.

AR104130

BEARING

0.25 MM (.010") US, (PKG (2) R60199, (2) R75167 OR (2) R76650) (SUB FOR AR73027)

ARшт.

AR104131

BEARING

0.50 MM (.020") US, (PKG (2) R60200, (2) R75158 OR (2) R76651) (SUB FOR AR73028)

ARшт.

AR104132

BEARING

0.75 MM (.030") US, (PKG (2) R60201, (2) R75165 OR (2) R76652) (SUB FOR AR73029)

ARшт.

12

R69045

BUSHING

(USE WITH R63959)

6шт.

13

AR79366

CONNECTING ROD

( AR79366 NO LONGER AVAILABLE) (MARKED R63959)

6шт.

SE500499

CONNECTING ROD REMAN

(REMANUFACTURED)

6шт.
