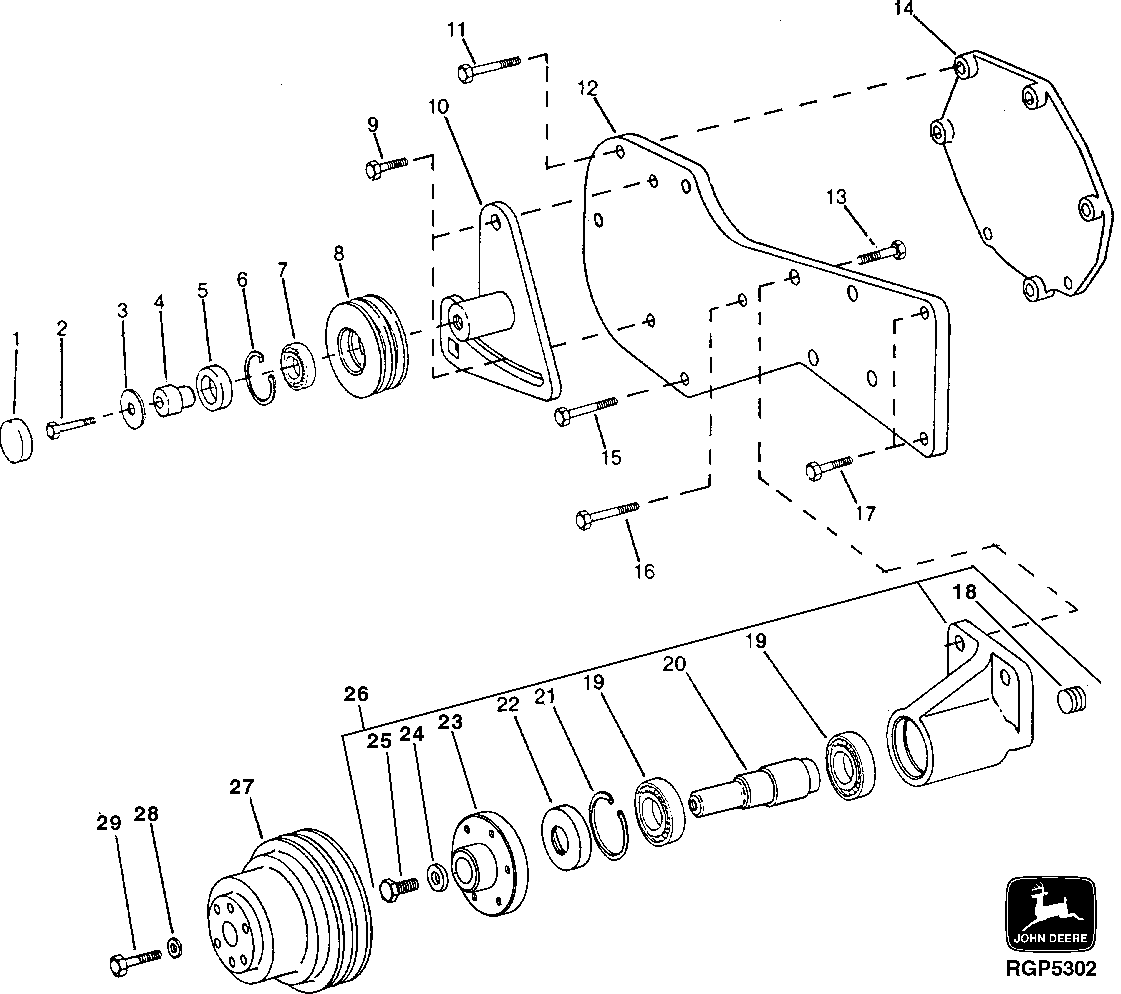

Запчасти John Deere 92ELC 70 - FAN DRIVE PULLEY, SUPPORT AND IDLER PULLEY 0429 FAN DRIVE 6101AT010 6101AT010

1

R66077

Plug

1шт.

2

19H2678

Cap Screw

7/16" X 2-1/8"

1шт.

3

24H1330

Washer

15/32" X 1-3/8" X 7/64"

1шт.

4

R70377

Hub

1шт.

5

AR92593

Seal

1шт.

6

R55408

Wear Ring

1шт.

7

JD8670

Ball Bearing

1шт.

8

T105390

Idler

1шт.

9

19H1792

Cap Screw

1/2" X 1"

2шт.

10

RE46233

Bracket

1шт.

11

19H3175

Cap Screw

3/8" X 3-5/8"

3шт.

12

R108877

Plate

1шт.

13

19H1815

Cap Screw

1/2" X 1-1/4"

4шт.

14

R108856

Cover

1шт.

15

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

16

19H3483

Cap Screw

3/8" X 1-1/8"

1шт.

17

19H3175

Cap Screw

3/8" X 3-5/8"

2шт.

18

R116466

Plug

1шт.

19

JD10329

Ball Bearing

2шт.

20

R63987

Shaft

1шт.

21

R62191

Snap Ring

1 7 MM ( 067") (RED)

ARшт.

R62192

Snap Ring

1 9 MM ( 077") (GREEN)

ARшт.

R62193

Snap Ring

2 2 MM ( 087") (BLUE)

ARшт.

R62194

Snap Ring

2 5 MM ( 097") (WHITE)

ARшт.

22

RE20768

Seal

1шт.

23

Plate

(NOT USED THIS APPLICATION)

ARшт.

24

Washer

(NOT USED THIS APPLICATION)

ARшт.

25

Screw

(NOT USED THIS APPLICATION)

ARшт.

26

Housing

(MARKED R86131 OR R127397 ) (SUB RE5 09329 AND R108857 ) (MARKED R505473)

1шт.

27

R108857

Pulley

1шт.

28

T20217

Washer

1шт.

29

R79850

Cap Screw

1шт.
