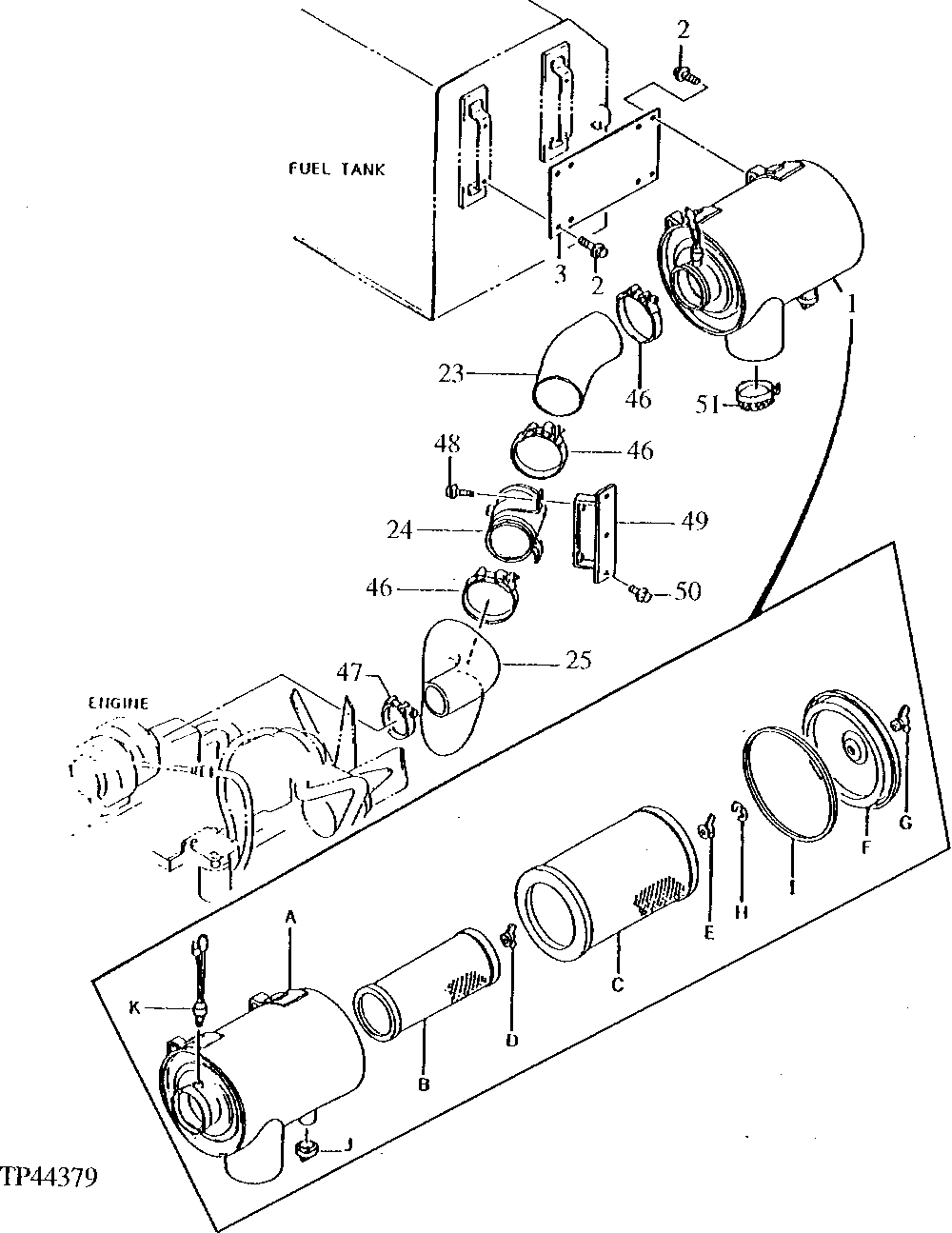

Запчасти John Deere 92ELC 85 - AIR CLEANER (SN -007000) ( - 007000) 0520 Intake System

1

4337849

Air Cleaner

(SUB FOR AT201812)

1шт.

1A

Housing

(NOT AVAILABLE FOR SERVICE)

1шт.

1B

AT201036

Filter Element

(INNER)

1шт.

1C

AR95758

Filter Element

(OUTER)

1шт.

1D

4337642

Nut

(SUB FOR AH20849, THIS APPL ICATION ) (SUB FOR AT166137)

1шт.

1E

4257360

Nut

(SUB FOR AT200998)

1шт.

1F

4297292

Cover

(SUB FOR AT201034)

1шт.

1G

AR73234

Wing Nut

11.125 mm (SUB FOR AR7 3234, THIS APPLICATION)

1шт.

1H

P46402

Snap Ring

1шт.

1I

4257362

Gasket

(SUB FOR AT200999)

1шт.

1J

4152863

Flow Control Hyd. Valve

(SUB FOR TH111700)

1шт.

1K

4224238

Indicator

(SUB FOR AT131922)

1шт.

2

19M7402

Cap Screw

M10 X 25

8шт.

12M7066

Lock Washer

10 mm

8шт.

3

4337927

Plate

(SUB FOR AT202156)

1шт.

23

4336605

Hose

(SUB FOR AT202153)(AIR)

1шт.

24

8059333

Air Intake Stack

(SUB FOR AT201914)(AIR)

1шт.

25

AT202074

Suction Hose

(AIR)

1шт.

46

AT53438

Hose Clamp

3шт.

47

RE19429

Clamp

1шт.

48

19M8011

Cap Screw

M12 X 30

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

49

8059389

Bracket

(SUB FOR AT201915)

1шт.

50

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

3шт.

19M8011

Cap Screw

M12 X 30

3шт.

51

4330083

Screen

(SUB FOR AT202329)

1шт.
