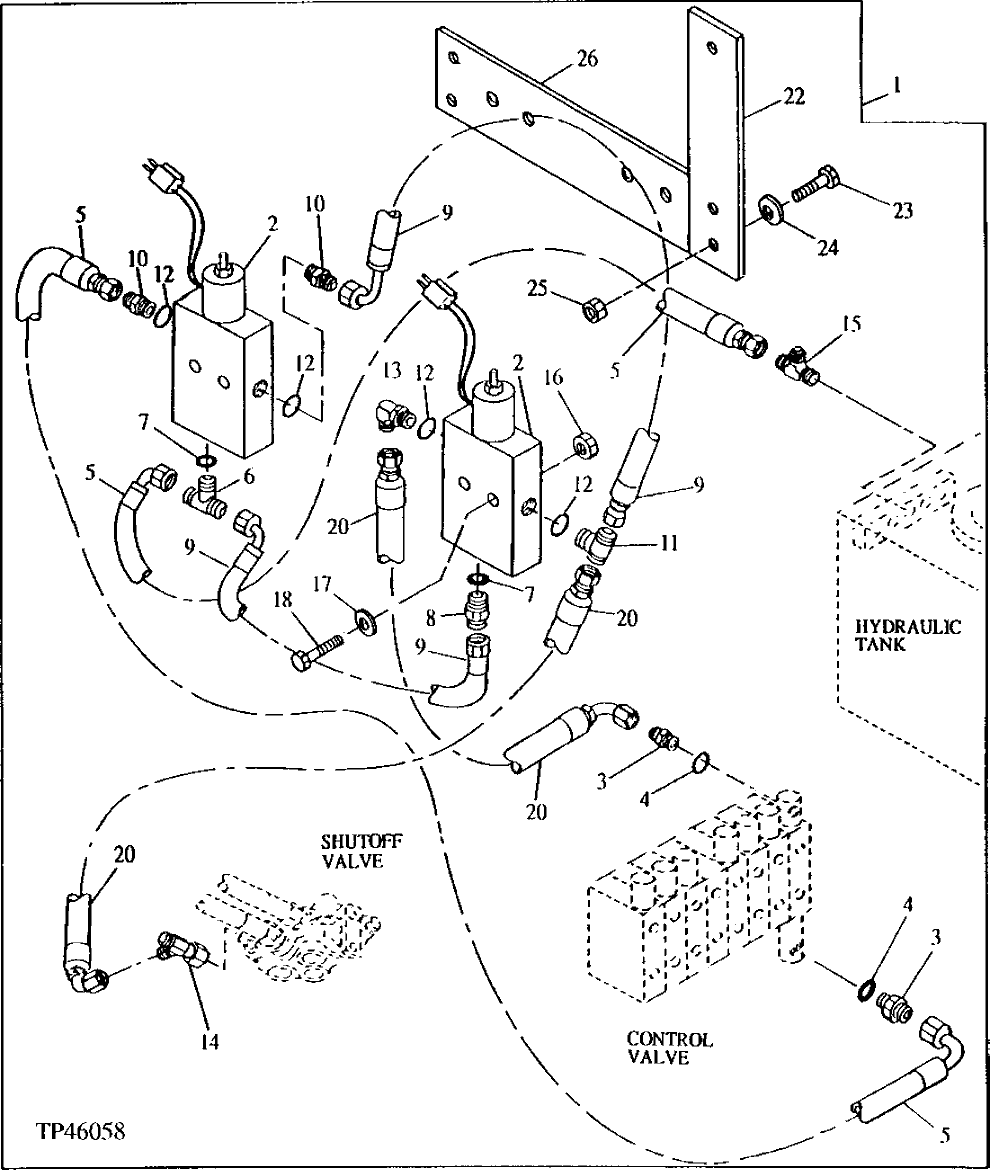

Запчасти John Deere 92ELC 293 - Two Solenoid Auxiliary Control (Use w/ Hand Controller) 3360 HYDRAULIC SYSTEM

1

Control

WHOLE GOODS (AUXILIARY - T WO SOLENOID) (AT165026 NLA)

1шт.

2

AT306723

Elec.Proportional Valve

(SUB FOR AT116486 AND AT140041)

2шт.

3

AT131445

Adapter Fitting

2шт.

4

CH11570

O-Ring

2шт.

5

AT71732

Hydraulic Hose

2шт.

6

AT42939

Tee Fitting

1шт.

7

R26375

O-Ring

2шт.

8

R36426

Fitting

1шт.

9

AT58849

Hydraulic Hose

2шт.

10

R27212

Fitting

2шт.

11

AT36465

Tee Fitting

1шт.

12

R26448

O-Ring

4шт.

13

AT35121

Elbow Fitting

1шт.

14

AT36921

Tee Fitting

1шт.

15

AT36921

Tee Fitting

1шт.

16

14M7167

Lock Nut

4шт.

17

24M7346

Washer

4шт.

18

19M7808

Screw

4шт.

19

R44302

Tie Band

(USE WHERE REQUIRED)

6шт.

20

AT71737

Hydraulic Hose

1шт.

22

T146100

Support

1шт.

23

19M7881

Screw

5шт.

24

24M7336

Washer

5шт.

25

14M7273

Nut

5шт.

26

T149117

Strap

1шт.
