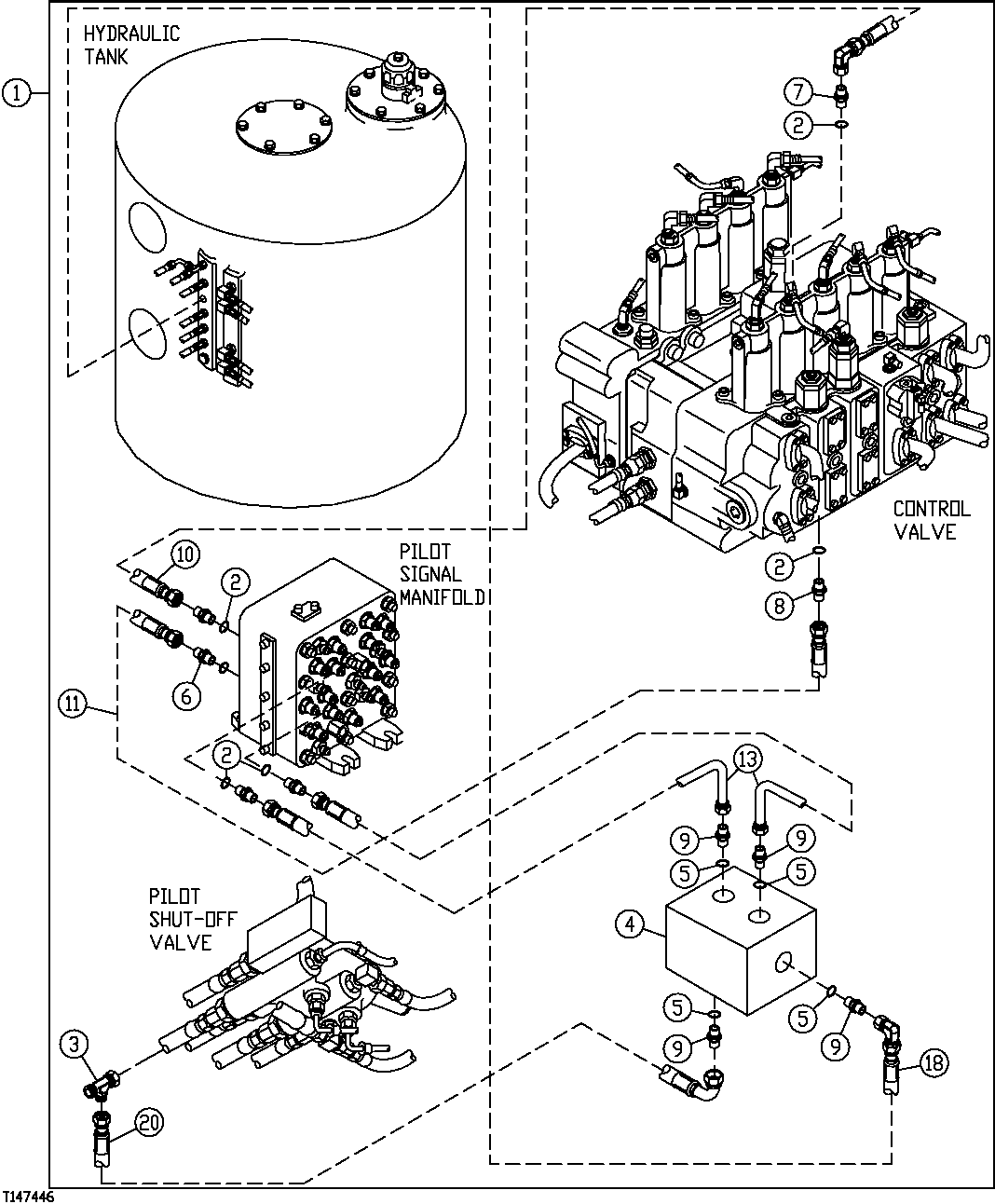

Запчасти John Deere 92ELC 298 - Electric Solenoid Valve Kit (1 Way / 2 Way) (W/O Pressure Switch) 3360 HYDRAULIC SYSTEM

1

Field Installation Kit

(WHOLEGOODS) ELECTRIC SOLENOID VALVE ( ALSO ORDER (2) E42442 ( AT195713 NLA))

1шт.

2

CH11570

O-Ring

2шт.

3

AT36921

Tee Fitting

2шт.

4

AT180585

Solenoid Valve

1шт.

AT139433

Electrical Coil

2шт.

5

R26448

O-Ring

4шт.

6

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

7

AT130053

Adapter Fitting

1шт.

8

AT131445

Adapter Fitting

1шт.

9

R27212

Fitting

4шт.

10

AT68901

Hydraulic Hose

1шт.

11

AR90081

Hydraulic Hose

1шт.

12

24M7054

Washer

(NOT ILLUSTRATED)

4шт.

13

AT108783

Hydraulic Hose

2шт.

14

14M7272

Nut

(NOT ILLUSTRATED)

2шт.

15

19M7529

Cap Screw

(NOT ILLUSTRATED)

2шт.

18

AT71732

Hydraulic Hose

1шт.

20

AT78124

Hydraulic Hose

1шт.
