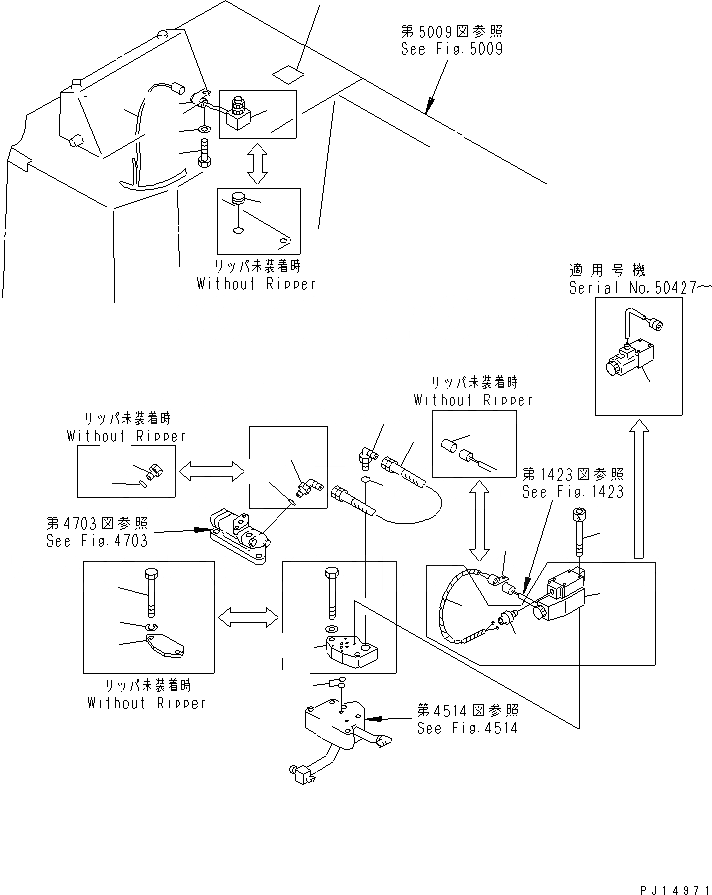

G-1
0
PIN PULLER PIPING G.
SN: 50001-UP
1шт.
|$$2
====================
-1шт.
1
07102-20304
HOSE
SN: 50001-UP
1шт.
2
07235-10315
ELBOW
SN: 50001-UP
2шт.
3
07002-02034
O-RING
SN: 50001-UP
2шт.
4
175-78-69580
VALVE
SN: 50427-UP
1шт.
4
0
VALVE
SN: 50001-50426
1шт.
5
01252-40545
BOLT
SN: 50001-UP
4шт.
6
21T-06-12530
CONNECTOR
SN: 50001-50426
1шт.
7
175-06-61410
WIRING HARNESS
SN: 50001-50426
1шт.
8
195-06-41820
CLIP
SN: 50001-UP
1шт.
|$$12
====================
-1шт.
G-2
0
PIN PULLER SWITCH G.
SN: 50001-52099
1шт.
|$$14
====================
-1шт.
9
7830-11-2101
SWITCH ASS'Y
SN: 50001-UP
1шт.
10
195-06-41820
CLIP
SN: 50001-UP
1шт.
11
01010-51020
BOLT
SN: 50001-UP
1шт.
12
01643-31032
WASHER
SN: 50001-UP
1шт.
|$$19
====================
-1шт.
13
175-79-61250
BLOCK
SN: 50001-UP
1шт.
14
07000-01009
O-RING
SN: 50001-UP
2шт.
15
175-06-61130
WIRING HARNESS
SN: 50001-UP
1шт.
16
195-98-21180
PLATE, OPERATING,PIN PULLER
SN: 50001-UP
1шт.
17
175-79-61260
PLATE,(WITHOUT GIANT RIPPER)
SN: 50001-UP
1шт.
18
01010-51290
BOLT,(WITHOUT GIANT RIPPER)
SN: 50001-UP
2шт.
19
01602-21236
WASHER,(WITHOUT GIANT RIPPER)
SN: 50001-UP
2шт.
20
07040-12012
PLUG,(WITHOUT GIANT RIPPER)
SN: 50001-UP
1шт.
21
07002-02034
O-RING,(WITHOUT GIANT RIPPER)
SN: 50001-UP
1шт.
22
09415-01610
CAP,(WITHOUT GIANT RIPPER)
SN: 50001-UP
1шт.
23
195-06-41740
PLUG,(WITHOUT GIANT RIPPER)
SN: 50001-UP
1шт.
