|$0

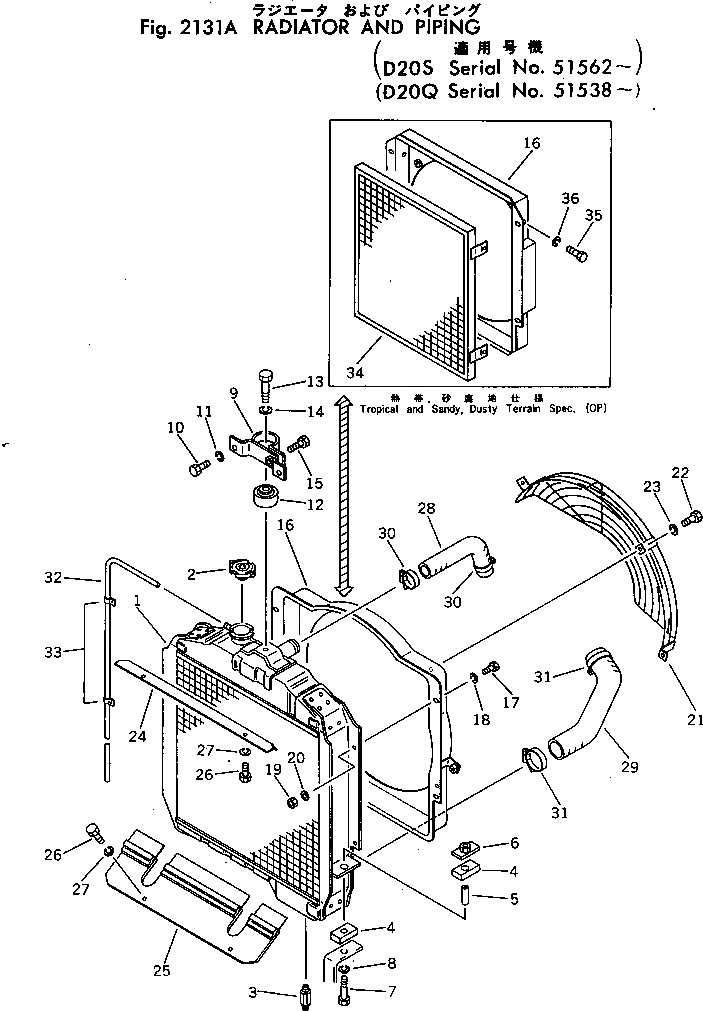

103-03-00021
RADIATOR ASS'Y
SN: 48355-UP
1шт.
|$1
103-03-00031
RADIATOR ASS'Y,(LARGE CAPACITY TYPE)
SN: 48355-UP
1шт.
|$2
103-03-00031
RADIATOR ASS'Y,(TROPICAL TERRAIN SPEC.)
SN: 48355-UP
1шт.
|$3
103-03-00031
RADIATOR ASS'Y,(SANDY,DUSTY TERRAIN SPEC.)
SN: 48355-UP
1шт.
1
0
CORE
SN: 48355-UP
1шт.
1
0
CORE,(LARGE CAPACITY TYPE)
SN: 48355-UP
1шт.
1
0
CORE,(TROPICAL TERRAIN SPEC.)
SN: 48355-UP
1шт.
1
0
CORE,(SANDY,DUSTY TERRAIN SPEC.)
SN: 48355-UP
1шт.
2
10E-03-11130
CAP
SN: 45001-UP
1шт.
3
07730-10003
VALVE
SN: 45001-UP
1шт.
4
100-03-12140
SEAT
SN: 45001-UP
4шт.
5
20T-03-11130
SPACER
SN: 45001-UP
2шт.
6
103-03-21160
PLATE
SN: 45001-UP
2шт.
7
01010-31060
BOLT
SN: 45001-UP
2шт.
8
01602-01030
WASHER,SPRING
SN: 45001-UP
2шт.
9
103-03-21192
BRACKET
SN: 45001-UP
1шт.
10
01010-31020
BOLT
SN: 45001-UP
2шт.
11
01602-01030
WASHER,SPRING
SN: 45001-UP
2шт.
12
135-03-12110
DAMPER
SN: 45001-UP
1шт.
13
01010-31460
BOLT
SN: 45001-UP
1шт.
14
01602-01442
WASHER,SPRING
SN: 45001-UP
1шт.
15
01010-31030
BOLT
SN: 45001-UP
1шт.
16
103-03-21121
SHROUD
SN: 51562-UP
1шт.
16
103-03-21342
SHROUD,(LARGE CAPACITY TYPE)
SN: 51562-UP
1шт.
16
103-03-21342
SHROUD,(TROPICAL TERRAIN SPEC.)
SN: 51562-UP
1шт.
16
103-03-29111
SHROUD,(SANDY,DUSTY TERRAIN SPEC.)
SN: 51562-UP
1шт.
17
01010-30816
BOLT
SN: 45001-UP
4шт.
18
01602-00825
WASHER,SPRING
SN: 45001-UP
4шт.
19
01580-00806
NUT
SN: 45001-UP
4шт.
20
01643-30823
WASHER
SN: 45001-UP
4шт.
21
103-03-21132
NET,WIRE
SN: 51562-UP
1шт.
21
103-03-21351
NET,WIRE (LARGE CAPACITY TYPE)
SN: 51562-UP
1шт.
21
103-03-21351
NET,WIRE (TROPICAL TERRAIN SPEC.)
SN: 51562-UP
1шт.
21
103-03-21351
NET,WIRE (SANDY AND DUSTY SPEC.)
SN: 51562-UP
1шт.
22
01010-51025
BOLT
SN: 51562-UP
3шт.
23
01602-21030
WASHER,SPRING
SN: 51562-UP
3шт.
24
103-03-21240
BAFFLE,UPPER
SN: 45001-UP
1шт.
25
103-03-21233
BAFFLE,LOWER
SN: 45001-UP
1шт.
26
01010-31020
BOLT
SN: 45001-UP
4шт.
26
01010-31020
BOLT,(LARGE CAPACITY TYPE)
SN: 45001-UP
2шт.
27
01602-01030
WASHER,SPRING
SN: 45001-UP
4шт.
27
01602-01030
WASHER
SN: 45001-UP
2шт.
28
103-03-21140
HOSE,UPPER
SN: 45001-UP
1шт.
28
103-03-21360
HOSE,UPPER (LARGE CAPACITY TYPE)
SN: 45001-UP
1шт.
28
103-03-21360
HOSE,UPPER (TROPICAL TERRAIN SPEC.)
SN: 48355-UP
1шт.
28
103-03-21360
HOSE,UPPER (SANDY AND DUSTY SPEC.)
SN: 48355-UP
1шт.
29
103-03-21151
HOSE,LOWER
SN: 45001-UP
1шт.
30
07281-00489
CLAMP
SN: 45001-UP
2шт.
31
07281-00549
CLAMP
SN: 45001-UP
2шт.
32
113-03-21140
TUBE
SN: 48355-UP
1шт.
33
08036-10814
CLIP
SN: 48355-UP
2шт.
34
103-03-21410
GRID,CORE (SANDY AND DUSTY SPEC.)
SN: 48355-UP
1шт.
35
01010-30820
BOLT,(SANDY,DUSTY TERRAIN SPEC.)
SN: 48355-UP
4шт.
36
01602-00825
WASHER,SPRING (SANDY AND DUSTY SPEC.)
SN: 48355-UP
4шт.
