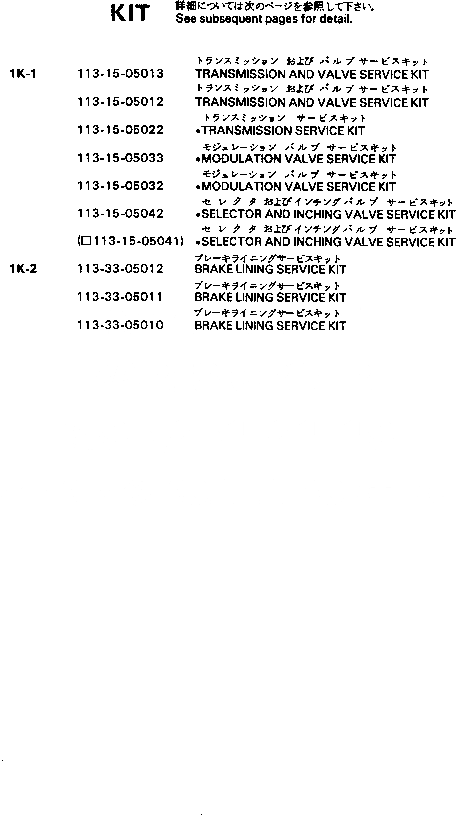

Запчасти Komatsu D31P-18 РЕМ. КОМПЛЕКТЫ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

113-15-05013

SERVICE KIT,TRANSMISSION AND VALVE

SN: 42967-UP

1шт.

|1

113-15-05012

SERVICE KIT,TRANSMISSION AND VALVE

SN: 40001-42966

1шт.

|1

113-15-05022

SERVICE KIT,TRANSMISSION

SN: 40001-UP

1шт.

|1

07002-02434

O-RING,PLUG

SN: 40001-UP

1шт.

|1

07000-72012

O-RING,SLEEVE

SN: 40001-UP

6шт.

|1

07000-72010

O-RING,SLEEVE

SN: 40001-UP

6шт.

|1

113-15-21720

GASKET,STRAINER

SN: 40001-UP

1шт.

|1

07000-02095

O-RING,COVER

SN: 40001-UP

1шт.

|1

07000-73028

O-RING,SLEEVE

SN: 40001-UP

2шт.

|1

07000-03035

O-RING,FILLER

SN: 40001-UP

1шт.

|1

07000-03022

O-RING,GAUGE

SN: 40001-UP

2шт.

|1

113-15-21120

GASKET,CASE

SN: 40001-UP

1шт.

|1

07000-05280

O-RING,CASE

SN: 40001-UP

1шт.

|1

07000-05270

O-RING,HOUSING

SN: 40001-UP

1шт.

|1

07012-10065

SEAL,OIL¤ COUPLING

SN: 40001-UP

1шт.

|1

07000-73025

O-RING,SHAFT

SN: 40001-UP

1шт.

|1

113-15-29220

RING,SEAL

SN: 40001-UP

1шт.

|1

113-15-29250

RING,SEAL

SN: 40001-UP

1шт.

|1

07000-01008

O-RING,HOUSING

SN: 40001-UP

5шт.

|1

113-15-29250

RING,SEAL

SN: 40001-UP

1шт.

|1

113-15-29261

RING,SEAL

SN: 40001-UP

1шт.

|1

113-15-29220

RING,SEAL

SN: 40001-UP

1шт.

|1

113-15-29250

RING,SEAL

SN: 40001-UP

1шт.

|1

113-15-39120

SEAL,OIL¤ SHAFT

SN: 40001-UP

1шт.

|1

113-15-29220

RING,SEAL

SN: 40001-UP

1шт.

|1

113-15-29250

RING,SEAL

SN: 40001-UP

1шт.

|1

07000-02110

O-RING,CAGE

SN: 40001-UP

1шт.

|1

113-15-39210

RING,SEAL

SN: 40001-UP

1шт.

|1

287-15-19210

RING,SEAL

SN: 40001-UP

1шт.

|1

07000-05270

O-RING,HOUSING

SN: 40001-UP

1шт.

|1

07012-10048

SEAL,OIL

SN: 40001-UP

1шт.

|1

113-15-05070

SHIM ASS'Y

SN: 40001-UP

1шт.

|1

113-15-23420

SHIM¤ 0.2MM,CAGE

SN: 40001-UP

8шт.

|1

113-15-23440

SHIM¤ 0.3MM,CAGE

SN: 40001-UP

4шт.

|1

113-15-23410

SHIM¤ 1.0MM,CAGE

SN: 40001-UP

2шт.

|1

04081-03510

LOCK,HOLDER

SN: 40001-UP

1шт.

|1

113-15-24860

GASKET,BRACKET

SN: 40001-UP

1шт.

|1

07000-72014

O-RING,SLEEVE

SN: 40001-UP

2шт.

|1

113-15-05033

SERVICE KIT,MODULATION VALVE

SN: 42967-UP

1шт.

|1

113-15-05032

SERVICE KIT,MODULATION VALVE

SN: 40001-42966

1шт.

|1

07000-73025

O-RING,STOPPER

SN: 40001-UP

2шт.

|1

07000-72020

O-RING,STOPPER

SN: 40001-UP

2шт.

|1

104-15-25140

GASKET,BODY

SN: 40001-UP

1шт.

|1

07000-72014

O-RING,SEAT

SN: 40001-UP

2шт.

|1

07000-72018

O-RING,SEAT

SN: 42967-UP

1шт.

|1

07000-72016

O-RING,SEAT

SN: 40001-42966

1шт.

|1

07000-72018

O-RING,SEAT

SN: 40001-UP

1шт.

|1

113-15-05042

SERVICE KIT,SELECTOR AND INCHING VALVE

SN: 41616-UP

1шт.

|1

0

SERVICE KIT,SELECTOR AND INCHING VALVE

SN: 40001-41615

1шт.

|1

113-15-29110

SEAL,OIL¤ BODY

SN: 40001-UP

2шт.

|1

07002-01623

O-RING,PLUG

SN: 40001-UP

1шт.

|1

07002-01823

O-RING,PLUG

SN: 40001-UP

1шт.

|1

07002-01223

O-RING,PLUG

SN: 40001-UP

2шт.

|1

07002-03034

O-RING,PLUG

SN: 40001-UP

1шт.

|1

113-15-29110

SEAL,OIL¤ COVER

SN: 40001-UP

1шт.

|1

07000-72021

O-RING,COVER

SN: 40001-UP

1шт.

|1

362-15-15920

GASKET,BODY

SN: 41616-UP

1шт.

|1

0

GASKET,BODY

SN: 40001-41615

1шт.

2

113-33-05012

SERVICE KIT,BRAKE LINING

SN: 40669-UP

1шт.

|2

113-33-05011

SERVICE KIT,BRAKE LINING

SN: 40343-40668

1шт.

|2

113-33-05010

SERVICE KIT,BRAKE LINING

SN: 40001-40342

1шт.

|2

0

LINING

SN: 40001-UP

2шт.

|2

0

LINING

SN: 40001-40342

1шт.

|2

0

LINING

SN: 40001-40342

1шт.

|2

0

LINING

SN: 40001-40342

2шт.

|2

0

LINING

SN: 40001-UP

6шт.

|2

0

LINING

SN: 40343-UP

1шт.

|2

0

LINING

SN: 40669-UP

1шт.

|2

0

LINING

SN: 40343-40668

1шт.

|2

0

LINING

SN: 40343-UP

2шт.

|2

0

LINING

SN: 40343-UP

2шт.

|2

0

LINING

SN: 40343-UP

1шт.

|2

0

LINING

SN: 40343-UP

1шт.
