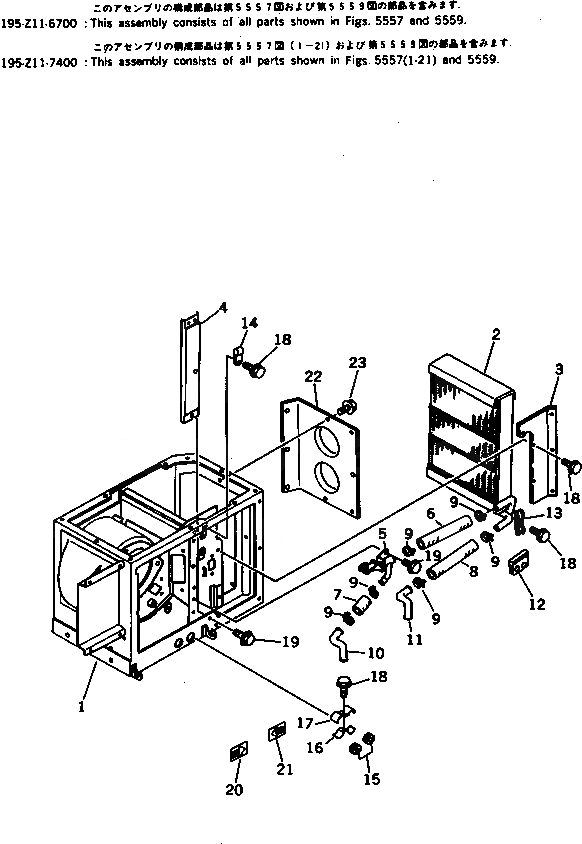

Запчасти Komatsu D375A-2 ОТОПИТЕЛЬ (/) ЧАСТИ КОРПУСА

|$0

195-Z11-6702

HEATER ASS'Y

SN: 16001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5957 AND 5958.

-1шт.

|$2

195-Z11-7402

HEATER ASS'Y

SN: 16001-UP

1шт.

1

195-Z11-7410

CASE ASS'Y

SN: 16001-UP

1шт.

2

195-Z11-5520

RADIATOR ASS'Y

SN: 16001-UP

1шт.

3

195-Z11-5680

COVER

SN: 16001-UP

1шт.

4

195-Z11-5930

STAY

SN: 16001-UP

1шт.

5

195-Z11-5740

VALVE ASS'Y

SN: 16001-UP

1шт.

5A

195-Z11-6640

BUSHING

SN: 16001-UP

1шт.

6

195-Z11-5760

HOSE

SN: 16001-UP

1шт.

7

195-Z11-5770

HOSE

SN: 16001-UP

1шт.

8

195-Z11-5750

HOSE

SN: 16001-UP

1шт.

9

145-Z79-6560

CLIP

SN: 16001-UP

6шт.

10

195-Z11-5820

PIPE

SN: 16001-UP

1шт.

11

195-Z11-5830

PIPE

SN: 16001-UP

1шт.

12

195-Z11-5780

GROMMET

SN: 16001-UP

1шт.

13

195-Z11-6120

CLAMP

SN: 16001-UP

1шт.

14

195-Z11-7160

CLAMP

SN: 16001-UP

1шт.

15

195-Z11-5790

GROMMET

SN: 16001-UP

2шт.

16

195-Z11-5970

CLAMP

SN: 16001-UP

1шт.

17

195-Z11-6110

CLAMP

SN: 16001-UP

1шт.

18

01010-50616

BOLT

SN: 16001-UP

12шт.

19

01010-50816

BOLT

SN: 16001-UP

2шт.

20

ND146741-2680

ORNAMENT

SN: 16001-UP

1шт.

21

ND146741-2570

ORNAMENT

SN: 16001-UP

1шт.

22

195-Z11-6291

DUCT,AIR

SN: 16001-UP

1шт.

23

01010-50816

BOLT

SN: 16001-UP

8шт.
