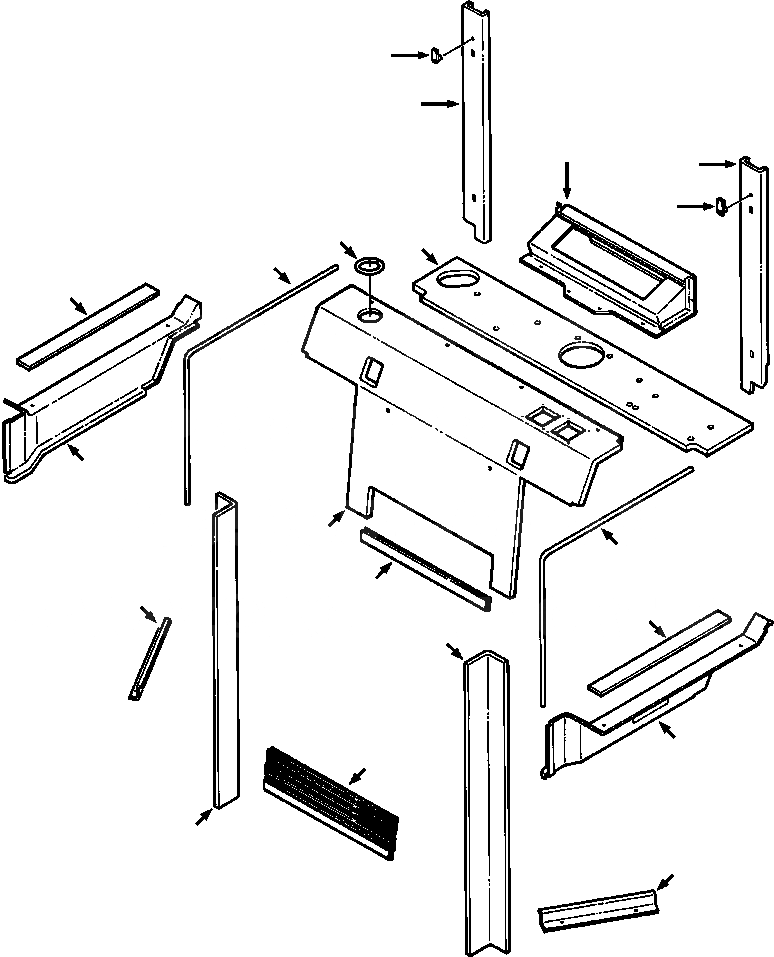

Запчасти Komatsu D38E-1 КАБИНА ROPS - /9INSULATION И КРЫШКИ SUPERSTRUCTURE

|$0

1304 301 H91

CAB ASSY, COMPLETE

1шт.

|$1

1304 393 H91

COVER ASSY, RIGHT REAR POST

1шт.

1

NSS

COVER, RIGHT REAR

1шт.

2

1298 836 H1

HOOK, COAT

1шт.

|$4

30 577 R1

SCREW, PAN HEAD - M6x25

1шт.

|$5

30 325 R1

WASHER, FLAT - M6

2шт.

|$6

30 281 R1

NUT, HEX - M6

1шт.

|$7

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$8

1309 381 H1

WASHER, CUP

2шт.

|$9

1304 394 H91

COVER ASSY, LEFT REAR POST

1шт.

3

NSS

COVER, LEFT REAR

1шт.

4

1298 836 H1

HOOK, COAT

1шт.

|$12

30 577 R1

SCREW, PAN HEAD - M6x25

1шт.

|$13

30 325 R1

WASHER, FLAT - M6

2шт.

|$14

30 281 R1

NUT, HEX - M6

1шт.

|$15

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$16

1309 381 H1

WASHER, CUP

2шт.

|$17

1304 442 H91

COVER ASSY, REAR LOWER

1шт.

5

NSS

COVER, REAR

1шт.

6

TRIM, EDGE - 210MM LONG

1шт.

7

TRIM, EDGE - 500MM LONG

1шт.

|$21

31 006 R1

SCREW, PAN HEAD - M6x16

8шт.

|$22

1309 381 H1

WASHER, CUP

8шт.

8

COMPARTMENT, AIR FILTER (SEE PG 13-050)

-29шт.

|$24

30 191 R1

BOLT, HEX -

6шт.

|$25

30 210 R1

WASHER, FLAT -

6шт.

9

1304 445 H1

INSULATION, SIDE POST

2шт.

10

1304 420 H91

COVER, FRONT

1шт.

|$28

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$29

1309 381 H1

WASHER, CUP

2шт.

11

1300 603 H1

GUARD, TRIP

2шт.

|$31

931 827 R1

BOLT, HEX - M6x16

4шт.

|$32

30 325 R1

WASHER, FLAT - M6

4шт.

12

1304 448 H1

COVER, RIGHT

1шт.

|$34

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$35

1309 381 H1

WASHER, CUP

2шт.

13

1304 450 H1

GASKET, COVER

2шт.

14

1304 449 H1

COVER, LEFT

1шт.

|$38

31 006 R1

SCREW, PAN HEAD - M6x16

2шт.

|$39

1309 381 H1

WASHER, CUP

2шт.

15

1304 403 H1

GASKET, REAR

1шт.

16

1304 404 H1

SEAL, EDGE TRIM

2шт.

|$42

1262 660 H1

TRIM, BULK EDGE

-2шт.

|$45

-1шт.

|$44

F1 - CUT REQUIRED LENGTH FROM BULK EDGE TRIM 1262 660 H1.

-1шт.

|$46

-1шт.
