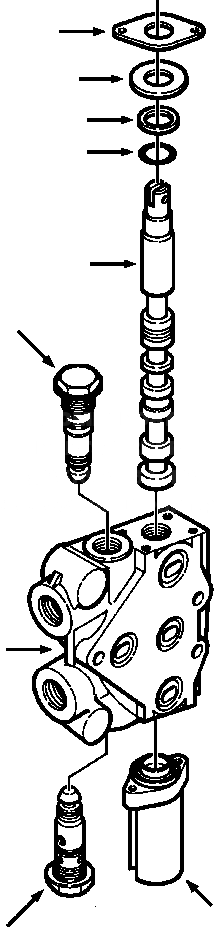

Запчасти Komatsu D38E-1 ПОДЪЕМ. ОТВАЛА SECTION ГИДРАВЛS

|$0

1299 223 H91

SECTION ASSY, BLADE LIFT

1шт.

1

POSITIONER, DETENT (SEE PG 10-046)

-29шт.

2

VALVE, LOAD CHECK (SEE PG 10-050)

-29шт.

3

VALVE, ANTI-CAVITATION (SEE PG 10-052)

-29шт.

|$4

1299 238 H91

SEAL ASSY, SPOOL

-54шт.

|$5

1299 239 H1

KIT, SPOOL SEAL

1шт.

4

NSS

WASHER, BACK UP

1шт.

5

NSS

RING, SEAL

1шт.

6

850 880 C1

RETAINER

1шт.

|$9

1299 240 H1

KIT, SEAL PLATE

1шт.

7

NSS

PLATE, SEAL

1шт.

|$11

NSS

BOLT, HEX - 1/4NCx1/2

2шт.

8

NSS

SPOOL, SECTION

1шт.

9

NSS

HOUSING, SECTION

1шт.

|$$15

-1шт.

|$15

F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY.

-1шт.

|$$17

-1шт.

|$$18

-1шт.

|$18

F2 - FOR SHIPPING PURPOSES ONLY. USE FOR SERVICING SECTION.

-1шт.

|$$20

-1шт.
