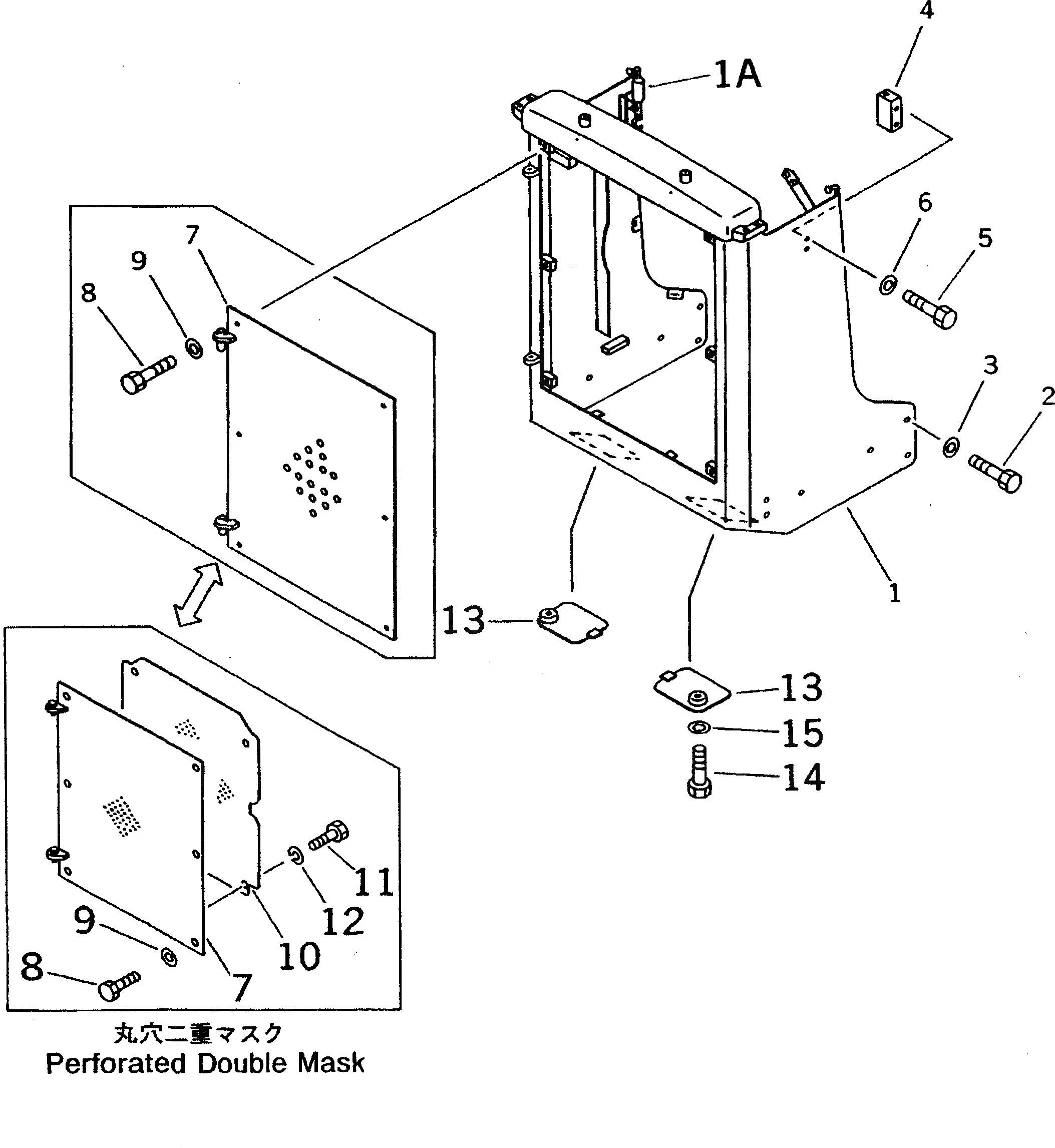

1
13F-54-31212
GUARD,RADIATOR
SN: 83209-UP
1шт.
|1
13F-54-31211
GUARD,RADIATOR
SN: 83001-83208
1шт.
1A
130-54-61370
CATCHER ASS'Y,ENGINE HOOD (WELDED)
SN: 83001-UP
2шт.
2
01010-81640
BOLT
SN: 83001-UP
12шт.
3
01643-31645
WASHER
SN: 83001-UP
12шт.
4
13F-54-31290
SEAT
SN: 83001-UP
2шт.
5
01010-81225
BOLT
SN: 83001-UP
4шт.
6
01643-31232
WASHER
SN: 83001-UP
4шт.
7
13F-54-31221
MASK
SN: 83050-UP
1шт.
|7
13F-54-31220
MASK
SN: 83001-83049
1шт.
|7
130-54-86112
MASK,FRONT (PERFORATED DOUBLE MASK)
SN: 83209-UP
1шт.
|7
0
MASK,FRONT (PERFORATED DOUBLE MASK)
SN: 83050-83208
1шт.
|7
130-54-86110
MASK,FRONT (PERFORATED DOUBLE MASK)
SN: 83001-83049
1шт.
8
01010-81230
BOLT
SN: 83001-UP
6шт.
9
01643-31232
WASHER
SN: 83001-UP
6шт.
10
130-54-86140
MASK,REAR (PERFORATED DOUBLE MASK)
SN: 83209-UP
1шт.
|10
130-54-86131
MASK,REAR (PERFORATED DOUBLE MASK)
SN: 83050-83208
1шт.
|10
130-54-86130
MASK,REAR (PERFORATED DOUBLE MASK)
SN: 83001-83049
1шт.
11
01010-81225
BOLT,(PERFORATED DOUBLE MASK)
SN: 83209-UP
4шт.
|11
01010-81230
BOLT,(PERFORATED DOUBLE MASK)
SN: 83001-83208
4шт.
12
01602-21236
WASHER,(PERFORATED DOUBLE MASK)
SN: 83209-UP
4шт.
|12
01643-31232
WASHER,(PERFORATED DOUBLE MASK)
SN: 83001-83208
4шт.
13
13F-54-31260
COVER
SN: 83001-UP
2шт.
14
01010-81225
BOLT
SN: 83001-UP
2шт.
14A
01602-21236
WASHER,SPRING
SN: 83001-UP
2шт.
15
01643-31232
WASHER
SN: 83001-UP
2шт.
