|$$1

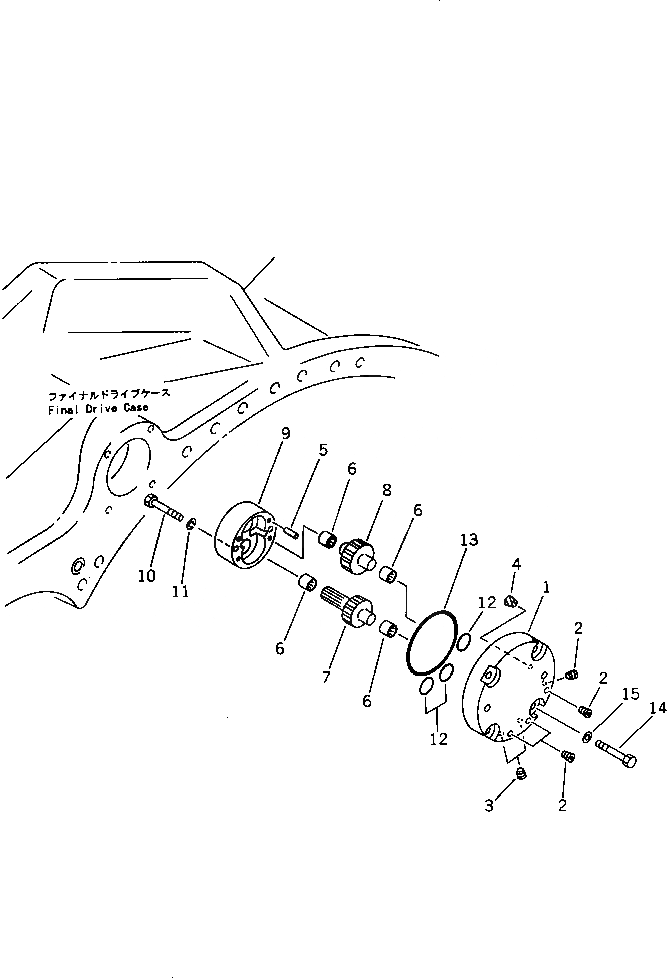

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-01A0 TO F2380-07A0.
-1шт.
|1
19M-27-00016
FINAL DRIVE ASS'Y
SN: 10043-UP
1шт.
|1
0
FINAL DRIVE ASS'Y
SN: 10036-10042
1шт.
|1
0
FINAL DRIVE ASS'Y
SN: 10035-10035
1шт.
|1
0
FINAL DRIVE ASS'Y
SN: 10017-10034
1шт.
|1
0
FINAL DRIVE ASS'Y,L.H.
SN: 10003-10011
1шт.
|1
0
FINAL DRIVE ASS'Y,L.H.
SN: 10001-10002
1шт.
|1
19M-27-00102
FINAL DRIVE ASS'Y,L.H. (WITH WEAR PLATE)
SN: 10017-UP
1шт.
|1
0
FINAL DRIVE ASS'Y,L.H. (WITH WEAR PLATE)
SN: 10008-10016
1шт.
|1
0
FINAL DRIVE ASS'Y,L.H. (WITH WEAR PLATE)
SN: 10005-10007
1шт.
|1
19M-27-00026
FINAL DRIVE ASS'Y
SN: 10043-UP
1шт.
|1
0
FINAL DRIVE ASS'Y
SN: 10036-10042
1шт.
|1
0
FINAL DRIVE ASS'Y
SN: 10035-10035
1шт.
|1
0
FINAL DRIVE ASS'Y
SN: 10017-10034
1шт.
|1
0
FINAL DRIVE ASS'Y,R.H.
SN: 10003-10011
1шт.
|1
0
FINAL DRIVE ASS'Y,R.H.
SN: 10001-10002
1шт.
|1
19M-27-00112
FINAL DRIVE ASS'Y,R.H. (WITH WEAR PLATE)
SN: 10017-UP
1шт.
|1
0
FINAL DRIVE ASS'Y,R.H. (WITH WEAR PLATE)
SN: 10008-10016
1шт.
|1
0
FINAL DRIVE ASS'Y,R.H. (WITH WEAR PLATE)
SN: 10005-10007
1шт.
1
19M-27-12124
COVER,L.H.
SN: 10001-UP
1шт.
|1
19M-27-12183
COVER,R.H.
SN: 10001-UP
1шт.
2
07043-50108
PLUG
SN: 10001-UP
4шт.
3
07043-50211
PLUG
SN: 10001-UP
2шт.
4
07049-01215
PLUG
SN: 10001-UP
2шт.
5
04020-00820
PIN,DOWEL
SN: 10001-UP
2шт.
6
195-13-13550
BEARING
SN: 10001-UP
4шт.
7
135-13-23510
GEAR
SN: 10001-UP
1шт.
8
135-13-23520
GEAR
SN: 10001-UP
1шт.
9
19M-27-12112
CASE
SN: 10001-UP
1шт.
10
01010-81060
BOLT
SN: 10001-UP
2шт.
11
01602-21030
WASHER,SPRING
SN: 10001-UP
2шт.
12
07000-13028
O-RING
SN: 10001-UP
3шт.
13
07000-12115
O-RING
SN: 10001-UP
1шт.
14
01010-81240
BOLT
SN: 10001-UP
4шт.
15
01643-31232
WASHER
SN: 10001-UP
4шт.
