|1
14X-Z11-0010
CAB ASS'Y,(AM RADIO)
SN: 65001-UP
1шт.
|1
14X-911-0080
CAB ASS'Y,(AM/FM CASSETTE STEREO)
SN: 65001-UP
1шт.
|1
14X-Z11-0020
CAB ASS'Y,(AM RADIO¤ F.R. WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0030
CAB ASS'Y,(AM/FM CST.ST.¤ F.R.WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0040
CAB ASS'Y,(AM RADIO¤ FRONT WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0050
CAB ASS'Y,(AM/FM CT.ST¤ FRONT WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0060
CAB ASS'Y,(AM RADIO¤ REAR WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0070
CAB ASS'Y,(AM/FM CT.ST¤ REAR WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-911-0070
CAB ASS'Y,(RADIO LESS)
SN: 65001-UP
1шт.
|1
14X-Z11-0080
CAB ASS'Y,(RADIO LESS¤ F.R. WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0090
CAB ASS'Y,(RADIO LESS¤ FRONT WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-Z11-0100
CAB ASS'Y,(RADIO LESS¤ REAR WORK LAMP)
SN: 65001-UP
1шт.
|1
14X-911-0060
CAB ASS'Y,(FOR RADIO LESS)(EXCEPT JAPAN)
SN: 65001-UP
1шт.
|$$14

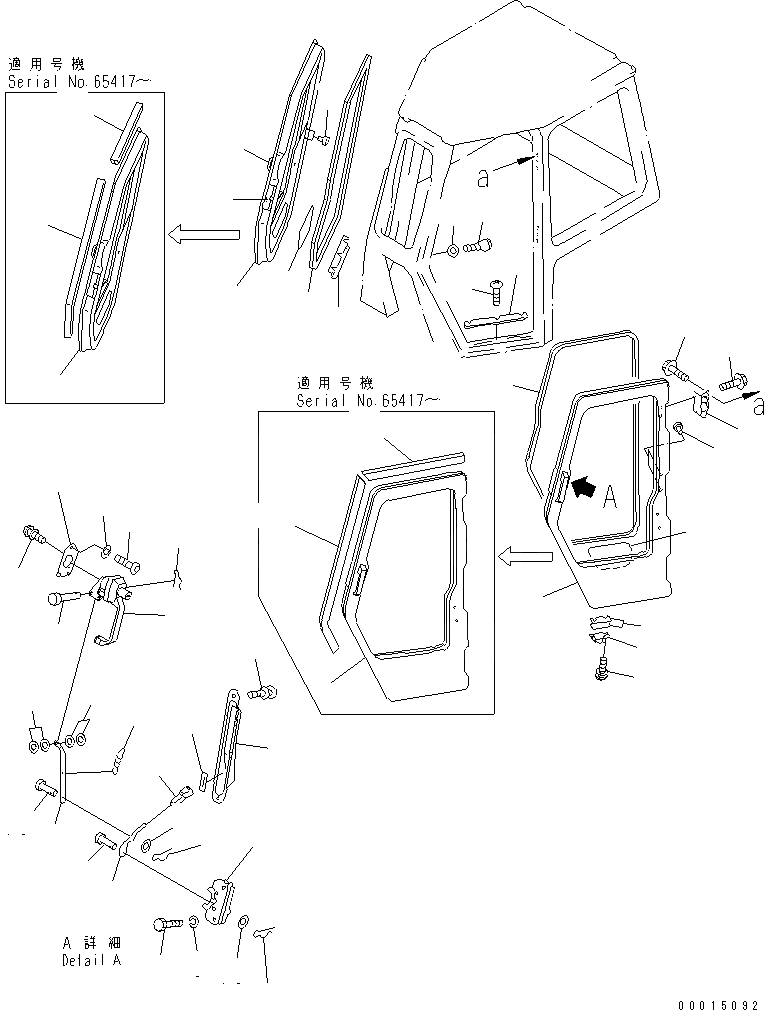

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.
-1шт.
1
14X-911-1323
DOOR,L.H.
SN: 65001-UP
1шт.
|1
14X-911-1423
DOOR,R.H.
SN: 65001-UP
1шт.
2
14X-911-1390
SEAL
SN: 65001-UP
2шт.
3A
14X-911-1430
SEAL,L.H.
SN: 65417-UP
1шт.
|3A
14X-911-1440
SEAL,R.H.
SN: 65417-UP
1шт.
3B
14X-911-1450
SEAL,L.H.
SN: 65417-UP
1шт.
|3B
14X-911-1460
SEAL,R.H.
SN: 65417-UP
1шт.
3
14X-911-5310
RIVET
SN: 65001-UP
4шт.
4
14X-911-1330
HINGE
SN: 65001-UP
6шт.
5
01435-01025
BOLT
SN: 65001-UP
36шт.
6
195-Z11-4510
LOCK,L.H.
SN: 65001-UP
1шт.
|6
195-Z11-4520
LOCK,R.H.
SN: 65001-UP
1шт.
7
01010-80635
BOLT
SN: 65001-UP
8шт.
8
01602-20619
WASHER
SN: 65001-UP
8шт.
9
14X-911-1631
STRIKER
SN: 65001-UP
2шт.
10
01643-31232
WASHER
SN: 65001-UP
2шт.
11
198-Z11-3710
HANDLE ASS'Y
SN: 65001-UP
2шт.
12
01023-10520
SCREW
SN: 65001-UP
10шт.
13
14X-911-1721
PLATE
SN: 65001-UP
2шт.
14
23S-06-14990
SCREW
SN: 65001-UP
6шт.
15
362-06-21140
WASHER
SN: 65001-UP
6шт.
16
14X-911-1941
LEVER,L.H.
SN: 65001-UP
1шт.
|16
14X-911-1951
LEVER,R.H.
SN: 65001-UP
1шт.
17
14X-911-1643
PLATE,L.H.
SN: 65001-UP
1шт.
|17
14X-911-1653
PLATE,R.H.
SN: 65001-UP
1шт.
18
04205-10614
PIN
SN: 65001-UP
4шт.
19
01641-20608
WASHER
SN: 65001-UP
4шт.
20
04050-11612
PIN
SN: 65001-UP
4шт.
21
14X-911-1540
KNOB
SN: 65001-UP
2шт.
22
176-06-42170
SPRING
SN: 65001-UP
2шт.
23
14X-911-1712
COVER
SN: 65001-UP
6шт.
24
01023-20512
SCREW
SN: 65001-UP
4шт.
25
14X-911-1780
SEAL
SN: 65001-UP
2шт.
26
04205-10622
PIN
SN: 65001-UP
2шт.
27
01643-10623
WASHER
SN: 65001-UP
8шт.
28
04052-10633
PIN
SN: 65001-UP
2шт.
29
14X-911-2341
TRIM
SN: 65001-UP
2шт.
30
14X-911-5831
PLATE
SN: 65001-UP
2шт.
31
01023-20616
SCREW
SN: 65001-UP
6шт.
32
14X-911-1690
DUMPER
SN: 65001-UP
4шт.
33
14X-911-1761
SHIM¤ 1.2MM
SN: 65001-UP
8шт.
34
01023-20616
SCREW
SN: 65001-UP
8шт.
