|1
14X-15-00011
TRANSMISSION ASS'Y,(D65E¤P)
SN: 60737-UP
1шт.
|1
14X-15-00010
TRANSMISSION ASS'Y,(D65E¤P)
SN: 60001-60736
1шт.
|1
14Z-15-00011
TRANSMISSION ASS'Y,(D65EX¤PX)
SN: 60737-UP
-1шт.
|1
14Z-15-00010
TRANSMISSION ASS'Y,(D65EX¤PX)
SN: 60001-60736
-1шт.
|$$5
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-0102 TO F2320-1002.
-1шт.
|1
14X-15-00371
COVER ASS'Y
SN: 60737-UP
1шт.
|1
14X-15-00370
COVER ASS'Y
SN: 60001-60736
1шт.
|$$8

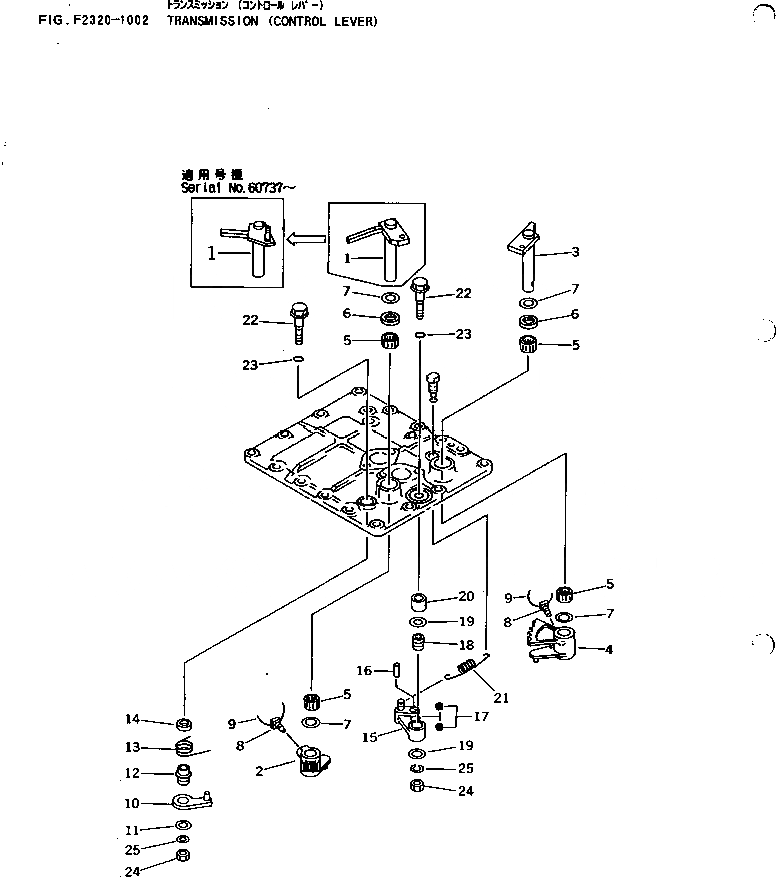

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-0902 AND F2320-1002.
-1шт.
1
14X-15-15712
LEVER
SN: 60737-UP
1шт.
|1
14X-15-15711
LEVER
SN: 60001-60736
1шт.
2
14X-15-15721
LEVER
SN: 60001-UP
1шт.
3
14X-15-15610
LEVER
SN: 60001-UP
1шт.
4
14X-15-15621
LEVER
SN: 60001-UP
1шт.
5
06120-02016
BEARING,SEAL (K6)
SN: 60001-UP
4шт.
6
144-15-29110
SEAL,OIL (K6)
SN: 60001-UP
2шт.
7
144-15-25570
WASHER
SN: 60001-UP
4шт.
8
01306-11025
SCREW
SN: 60001-UP
2шт.
9
04059-01010
WIRE
SN: 60001-UP
2шт.
10
14X-15-15791
LEVER
SN: 60001-UP
1шт.
11
175-15-45660
WASHER
SN: 60001-UP
1шт.
12
14X-15-15671
BUSHING
SN: 60001-UP
1шт.
13
14X-15-16192
SPRING
SN: 60001-UP
1шт.
14
14X-15-15840
COLLAR
SN: 60001-UP
1шт.
15
125-15-11440
LEVER
SN: 60001-UP
1шт.
16
144-15-25691
PIN
SN: 60001-UP
1шт.
17
144-15-29120
BEARING
SN: 60001-UP
2шт.
18
144-15-25670
BUSHING
SN: 60001-UP
1шт.
19
175-15-45660
WASHER
SN: 60001-UP
2шт.
20
14X-15-15830
COLLAR
SN: 60001-UP
1шт.
21
14X-15-16180
SPRING
SN: 60001-UP
1шт.
22
134-15-21450
BOLT
SN: 60001-UP
2шт.
23
07000-02015
O-RING (K6)
SN: 60001-UP
2шт.
24
01580-11008
NUT
SN: 60001-UP
2шт.
25
01602-21030
WASHER,SPRING
SN: 60001-UP
2шт.
