1
144-Z04-1110

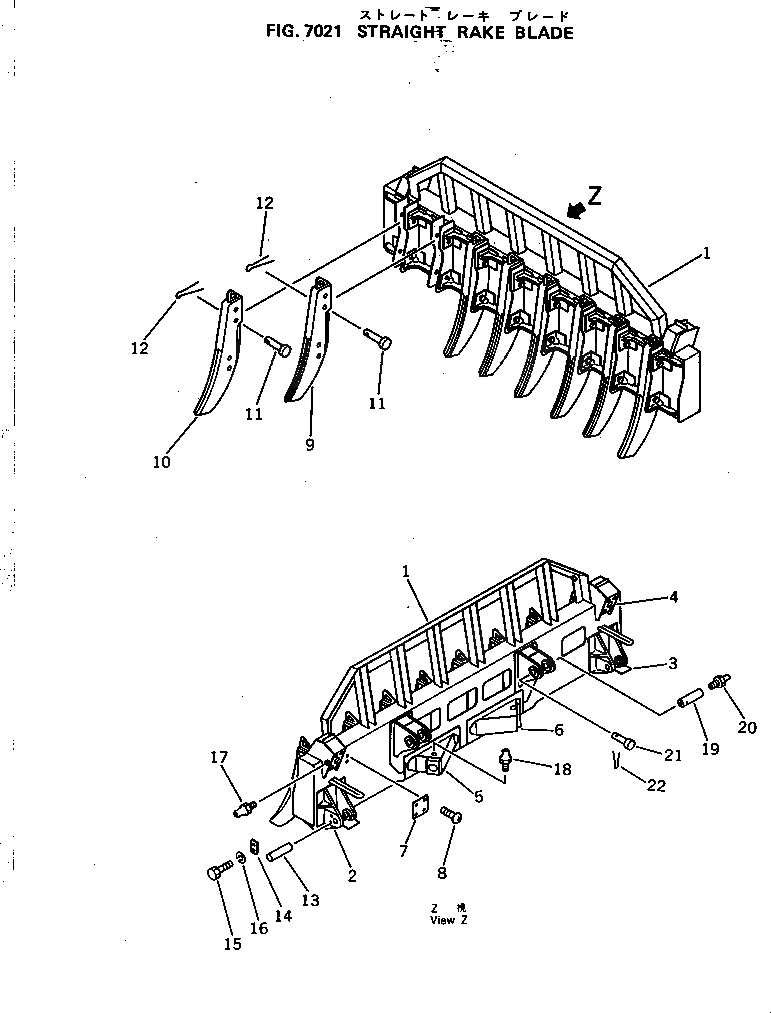

BLADE ASS'Y,STRAIGHT RAKE
SN: 50001-UP
1шт.
2
144-920-1760
BRACKET,LOWER, L.H. (WELDED)
SN: 50001-UP
1шт.
3
144-920-1770
BRACKET,LOWER, R.H. (WELDED)
SN: 50001-UP
1шт.
4
144-817-1270
RETAINER (WELDED)
SN: 50001-UP
2шт.
5
144-Z04-1150
BRACKET,CENTER, L.H. (WELDED)
SN: 50001-UP
1шт.
6
144-Z04-1160
BRACKET,CENTER, R.H. (WELDED)
SN: 50001-UP
1шт.
7
09601-00835
PLATE, NAME,(LIMITED SUPPLY)
SN: 50001-UP
1шт.
8
04418-13060
SCREW,TAPPING
SN: 50001-UP
4шт.
9
144-Z04-1120
EDGE
SN: 50001-UP
6шт.
10
144-Z04-1130
EDGE
SN: 50001-UP
2шт.
11
144-Z03-1130
PIN
SN: 50001-UP
16шт.
12
04050-10085
PIN,COTTER
SN: 50001-UP
16шт.
13
144-817-1260
SHAFT
SN: 50001-UP
2шт.
14
04082-00212
LOCK
SN: 50001-UP
2шт.
15
01010-31225
BOLT
SN: 50001-UP
4шт.
16
01602-01236
WASHER,SPRING
SN: 50001-UP
4шт.
17
07020-00000
FITTING,GREASE
SN: 50001-UP
2шт.
18
07020-00000
FITTING,GREASE
SN: 50001-UP
2шт.
19
144-817-4110
SHAFT
SN: 50001-UP
2шт.
20
07020-00000
FITTING,GREASE
SN: 50001-UP
2шт.
21
140-70-14230
PIN
SN: 50001-UP
2шт.
22
04050-03015
PIN,COTTER
SN: 50001-UP
2шт.
