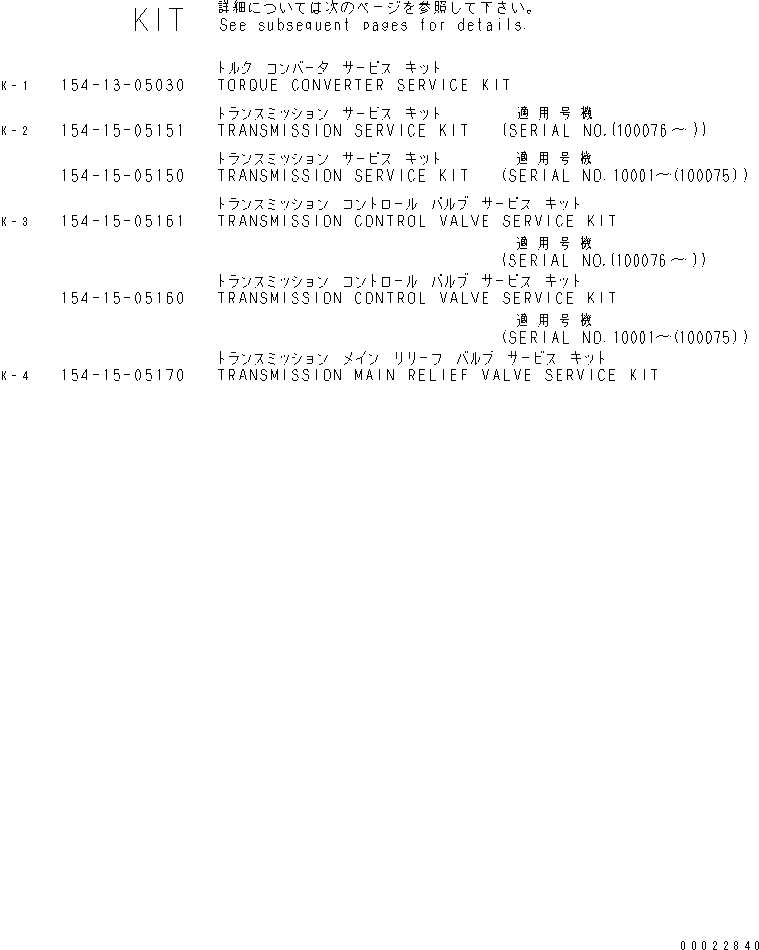

Запчасти Komatsu D85EX-15 КОМПЛЕКТ (ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

1

154-13-05030

SERVICE KIT,TORQUE CONVERTER

SN: 10001-UP

1шт.

|1

07000-72095

O-RING,(F2310-52A0 -32 )

SN: 10001-UP

1шт.

|1

07000-72100

O-RING,(F2310-55A0 -5 )

SN: 10001-UP

1шт.

|1

07000-72110

O-RING,(F2310-55A0 -4 )

SN: 10001-UP

1шт.

|1

07000-72115

O-RING,(F2310-54A0 -31 )

SN: 10001-UP

1шт.

|1

07000-73030

O-RING,(F2310-52A0 -7 )

SN: 10001-UP

2шт.

|1

07000-73032

O-RING,(F2310-52A0 -8 )

SN: 10001-UP

2шт.

|1

07000-75150

O-RING,(F2310-54A0 -7 )

SN: 10001-UP

1шт.

|1

07000-75165

O-RING,(F2310-52A0 -30 )

SN: 10001-UP

1шт.

|1

07000-75210

O-RING,(F2310-54A0 -19 )

SN: 10001-UP

1шт.

|1

07000-75210

O-RING,(F2310-54A0 -27 )

SN: 10001-UP

1шт.

|1

07005-01212

GASKET,(F2310-52A0 -11 )

SN: 10001-UP

4шт.

|1

07012-50100

SEAL,(F2310-52A0 -29 )

SN: 10001-UP

1шт.

|1

07018-31205

RING,(F2310-51A0 -7 )

SN: 10001-UP

1шт.

2

154-15-05151

SERVICE KIT,TRANSMISSION

SN: (100076)-UP

1шт.

|2

154-15-05150

SERVICE KIT,TRANSMISSION

SN: 10001-(100075)

1шт.

|2

07000-72014

O-RING,(F2320-56A0 -10 )

SN: 10001-UP

1шт.

|2

07000-72014

O-RING,(F2320-56A0 -10 )

SN: 10001-UP

1шт.

|2

07000-73022

O-RING,(F2320-56A0 -18 )

SN: 10001-UP

1шт.

|2

07000-73022

O-RING,(F2320-56A0 -18 )

SN: 10001-UP

1шт.

|2

07000-73025

O-RING,(F2320-56A0 -11 )

SN: 10001-UP

1шт.

|2

07000-73025

O-RING,(F2320-56A0 -11 )

SN: 10001-UP

1шт.

|2

07000-73028

O-RING,(F2320-56A0 -12 )

SN: 10001-UP

1шт.

|2

07000-73030

O-RING,(F2320-52A0 -22 )

SN: 10001-UP

4шт.

|2

07002-02434

O-RING,(F2320-56A0 -6 )

SN: 10001-UP

1шт.

|2

113-15-12870

RING,(F2320-51A0 -4 )

SN: 10001-UP

1шт.

|2

113-15-12870

RING,(F2320-52A0 -2 )

SN: 10001-UP

1шт.

|2

113-15-12870

RING,(F2320-53A0 -3 )

SN: 10001-UP

1шт.

|2

113-15-12870

RING,(F2320-53A0 -6 )

SN: 10001-UP

1шт.

|2

14X-15-15910

GASKET,(F2320-62A0 -2 )

SN: 10001-UP

1шт.

|2

14X-15-25831

GASKET,(F2320-62A0 -7 )

SN: (100076)-UP

1шт.

|2

14X-15-25830

GASKET,(F2320-62A0 -7 )

SN: 10001-(100075)

1шт.

|2

144-15-22881

RING,(F2320-51A0 -19 )

SN: 10001-UP

1шт.

|2

144-15-22881

RING,(F2320-52A0 -4 )

SN: 10001-UP

1шт.

|2

144-15-22881

RING,(F2320-53A0 -8 )

SN: 10001-UP

1шт.

|2

562-15-19220

RING,(F2320-51A0 -6 )

SN: 10001-UP

1шт.

|2

562-15-19220

RING,(F2320-53A0 -4 )

SN: 10001-UP

1шт.

3

154-15-05161

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: (100076)-UP

1шт.

|3

154-15-05160

SERVICE KIT,TRANSMISSION CONTROL VALVE

SN: 10001-(100075)

1шт.

|3

07000-72012

O-RING,(F2320-58A0 -6 )

SN: 10001-UP

5шт.

|3

07000-72014

O-RING,(F2320-58A0 -12 )

SN: 10001-UP

2шт.

|3

07002-11823

O-RING,(F2320-58A0 -7 )

SN: (100076)-UP

5шт.

|3

07002-11023

O-RING,(F2320-58A0 -7 )

SN: 10001-(100075)

5шт.

|3

195-15-75531

GASKET,(F2320-58A0 -1 )

SN: (100076)-UP

1шт.

|3

195-15-75530

GASKET,(F2320-58A0 -1 )

SN: 10001-(100075)

1шт.

|3

209-38-12480

O-RING,(F2320-58A0 -10 )

SN: 10001-UP

1шт.

|3

209-38-12490

RING,(F2320-58A0 -11 )

SN: 10001-UP

1шт.

|3

714-23-15560

O-RING,(F2320-59A0 -10 )

SN: 10001-UP

3шт.

|3

714-23-15560

O-RING,(F2320-59A0 -10 )

SN: 10001-UP

2шт.

4

154-15-05170

SERVICE KIT,MAIN RELIEF VALVE

SN: 10001-UP

1шт.

|4

07000-73030

O-RING,(F2320-61A0 -25 )

SN: 10001-UP

5шт.

|4

07002-03034

O-RING,(F2320-61A0 -4 )

SN: 10001-UP

1шт.

|4

07002-03034

O-RING,(F2320-61A0 -4 )

SN: 10001-UP

1шт.

|4

07002-03034

O-RING,(F2320-61A0 -4 )

SN: 10001-UP

2шт.
