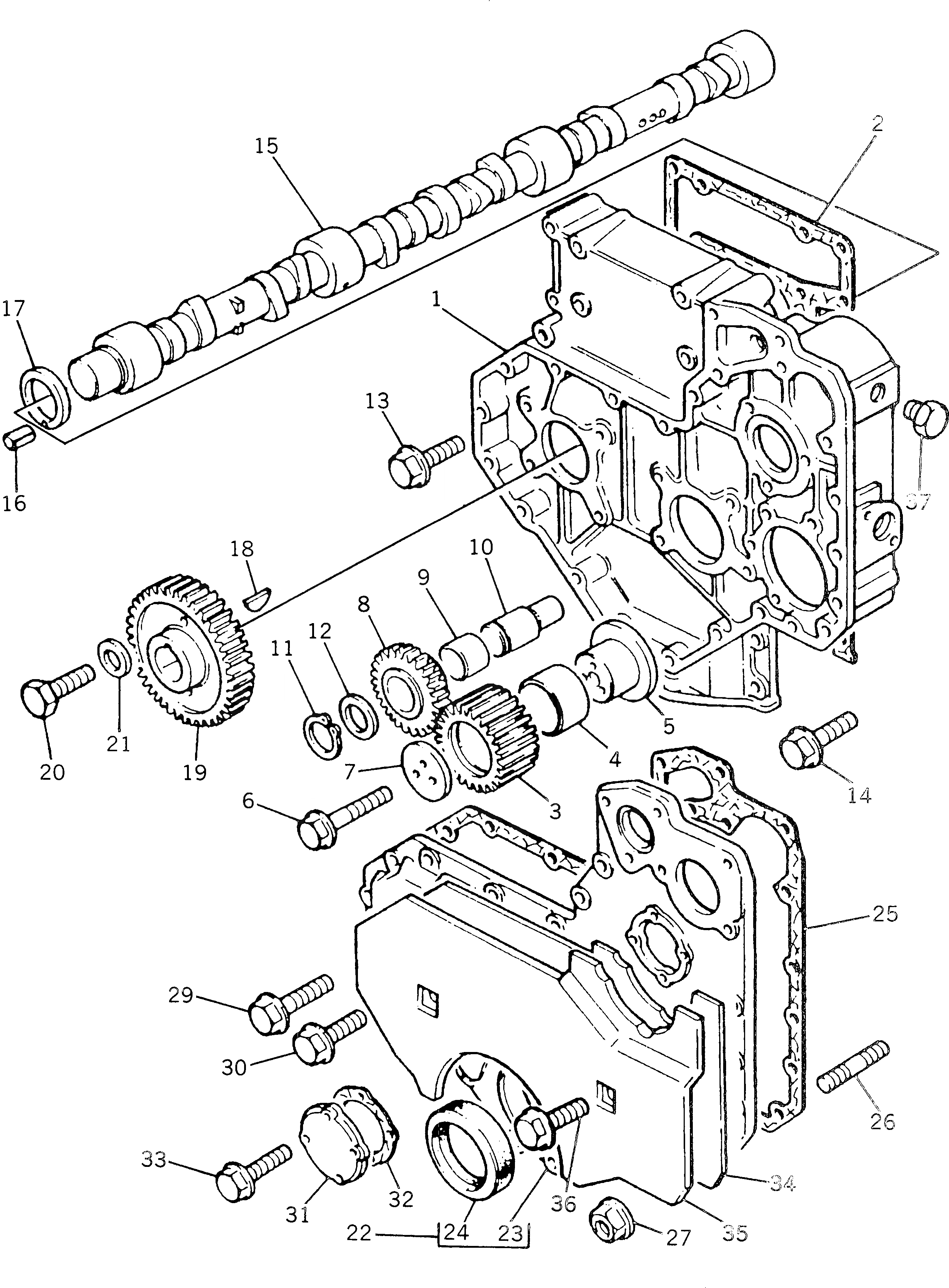

Запчасти Komatsu 1006-6T-A TIMING ПРИВОД И РАСПРЕДВАЛ БЛОК ЦИЛИНДРОВ

1

PK3716C043

CASE

SN: U513032T-UP

1шт.

2

PK3681P002

JOINT (KIT)

SN: U513032T-UP

1шт.

3

PK4111A013

GEAR

SN: U513032T-UP

1шт.

4

PK0050345

BUSHING

SN: U513032T-UP

1шт.

5

PK33426161

HUB

SN: U513032T-UP

1шт.

6

PK2314J010

SCREW

SN: U513032T-UP

3шт.

7

PK0941082

PLATE

SN: U513032T-UP

1шт.

8

PK4111A008

GEAR

SN: U513032T-UP

1шт.

9

PK2511437

BUSHING

SN: U513032T-UP

1шт.

10

PK3271H002

SHAFT

SN: U513032T-UP

1шт.

11

PK2722A206

CIRCLIP

SN: U513032T-UP

1шт.

12

PK33123125

WASHER

SN: U513032T-UP

1шт.

13

PK2314H003

SCREW

SN: U513032T-UP

8шт.

14

PK2314H004

SCREW

SN: U513032T-UP

4шт.

15

PK31416305

CAMSHAFT

SN: U513032T-UP

1шт.

16

PK2116053

PIN

SN: U513032T-UP

1шт.

17

PK33153121

WASHER

SN: U513032T-UP

1шт.

18

PK0500012

KEY

SN: U513032T-UP

1шт.

19

PK3117L011

GEAR

SN: U513032T-UP

1шт.

20

PK2314J603

SCREW

SN: U513032T-UP

1шт.

21

PK3321A003

WASHER

SN: U513032T-UP

1шт.

22

PK4142A143

COVER

SN: U513032T-UP

1шт.

23

0

COVER

SN: U513032T-UP

1шт.

24

PK2418F436

SEAL

SN: U513032T-UP

1шт.

25

PK3681P003

JOINT (KIT)

SN: U513032T-UP

1шт.

26

PK2313M058

STUD

SN: U513032T-UP

2шт.

27

PK2318A603

NUT

SN: U513032T-UP

2шт.

29

PK2314H004

SCREW

SN: U513032T-UP

8шт.

30

PK2314H013

SCREW

SN: U513032T-UP

6шт.

31

PK3753R111

COVER

SN: U513032T-UP

1шт.

32

PK3682H002

JOINT (KIT)

SN: U513032T-UP

1шт.

33

PK2314F036

SCREW

SN: U513032T-UP

4шт.

34

PK3781N006

SHIELD

SN: U513032T-UP

1шт.

35

PK3781N005

DAMPER

SN: U513032T-UP

1шт.

36

PK2314F003

SCREW

SN: U513032T-UP

2шт.

37

PK2487Y005

PLUG

SN: U513032T-UP

1шт.
