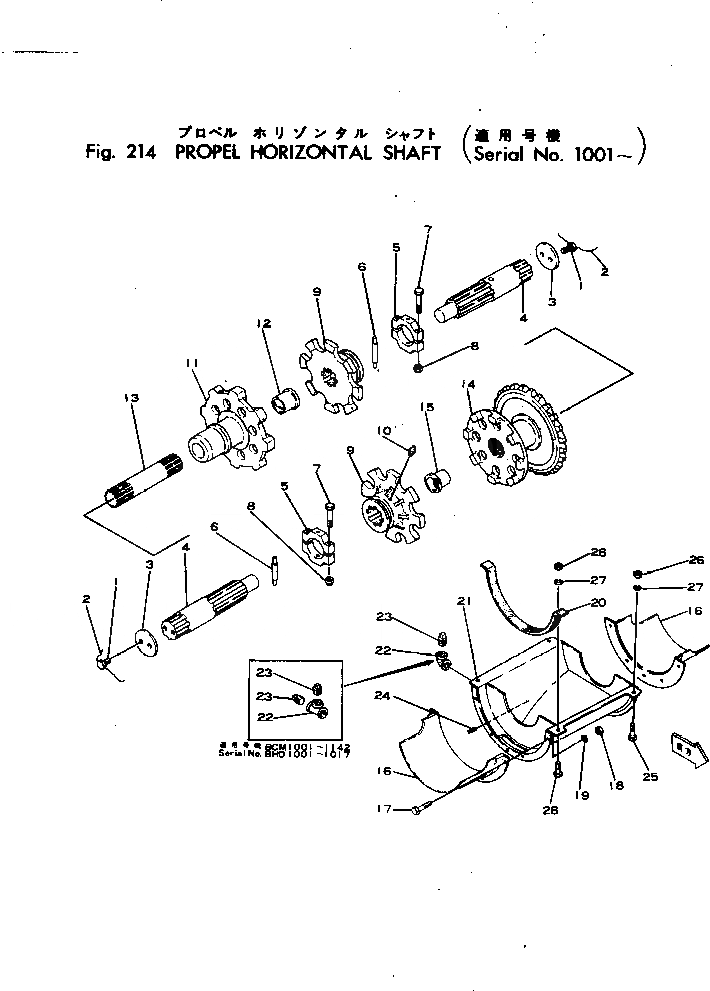

Запчасти Komatsu 22-BCM-1 ХОД ГОРИЗОНТАЛЬН. ВАЛ ТРАНСМИССИЯ¤ МЕХАНИЗМ ПОВОРОТА И PКАНАТL MACHINERY

1

21-184637-01

BOLT

2

04059-01620

WIRE

3

21-520735-01

PLATE

4

21-617106-01

SHAFT,HORIZONTAL

5

21-278183-01

COLLAR

6

21-408611-01

PIN

7

02011-00821

BOLT

8

00027-86430

NUT

9

21-617105-01

CLUTCH,SHIFTER

10

00570-43760

FITTING

|11

22-580410-00

CLUTCH ASS'Y

11

CLUTCH,HORIZONTAL SHAFT

12

21-505914-01

BUSHING

13

21-613128-01

SHAFT,CENTER

|14

22-580408-00

GEAR ASS'Y

14

21-703367-01

GEAR,BEVEL

|14

21-617103-01

PINION,VERTICAL SHAFT

15

21-505914-01

BUSHING

16

22-450001-21

GUARD

17

02010-00832

BOLT

18

02205-00812

NUT

19

01602-01338

WASHER

20

22-400219-01

PACKING (KIT)

|21

22-580412-00

GUARD ASS'Y

|21

22-580411-00

GUARD ASS'Y

21

22-500003-22

GUARD,OIL¤ CENTER

|21

22-500003-21

GUARD,OIL¤ CENTER

|$$28

(22-500003-22{22-401504-01¤}

|$$29

22-590201-01)

22

22-401504-01

ELBOW

|22

22-590081-01

TEE

23

00207-67800

PLUG

|23

00207-67800

PLUG

24

22-590201-01

PLUG

25

02010-00864

BOLT

26

02205-00812

NUT

27

01602-01338

WASHER

28

02010-00851

BOLT
