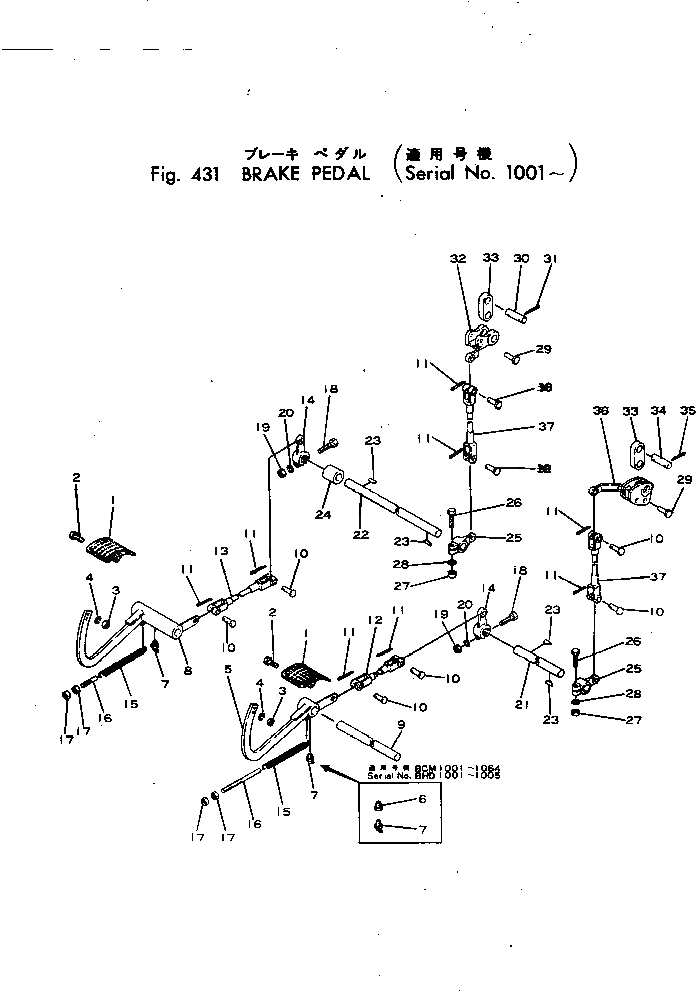

Запчасти Komatsu 22-BCM-1 ПЕДАЛЬ ТОРМОЗА ДЕКА MACHINERY¤ СИСТЕМА УПРАВЛЕНИЯ И КАБИНА

1

21-600206-01

PEDAL,BRAKE

2

02010-00638

BOLT

3

02205-00609

NUT

4

01602-00929

WASHER

5

21-700135-21

LEVER,FOOT BRAKE¤ L.H.

6

00200-15250

BUSHING

7

00570-44010

FITTING

8

21-700134-21

LEVER,FOOT BRAKE¤ R.H.

9

21-500558-01

SHAFT

10

22-590050-01

PIN

11

04050-03025

PIN

12

21-520671-21

ROD

13

21-520672-01

ROD

14

21-600040-01

LEVER,DRUM BRAKE SHAFT

15

21-500182-01

SPRING,RETURN

16

21-500559-01

BOLT

17

02205-10609

NUT

18

02030-20864

BOLT

19

02215-10811

NUT

20

01602-01338

WASHER

21

21-520673-01

SHAFT,REAR DRUM BRAKE

22

21-514519-01

SHAFT,FRONT DRUM BRAKE

23

22-590047-01

KEY

24

21-529674-01

SPACER

25

21-600040-01

LEVER,CLUTCH BRAKE

26

02030-20864

BOLT

27

02215-10811

NUT

28

01602-01338

WASHER

29

21-520670-01

PIN

30

22-400050-01

PIN

31

04050-06045

PIN

32

21-623041-01

BELLCRANK,REAR CLUTCH BRAKE

|32

21-617086-01

BELLCRANK,REAR CLUTCH BRAKE

33

21-527413-01

LINK

|33

21-504114-01

LINK

34

21-527418-01

PIN

35

04050-06045

PIN

36

21-710163-02

BELLCRANK,FRONT CLUTCH BRAKE

37

21-520671-21

ROD

38

21-500119-21

ROD

|38

21-500119-21

ROD
